Potential Figures for North American Ecosystem Ecology Paper

Authors

Kristina Riemer

Dave Moore

Eric R. Scott

Published

August 26, 2025

TODO list

  • Data
    • Automated checking of data ranges?
  • Plots

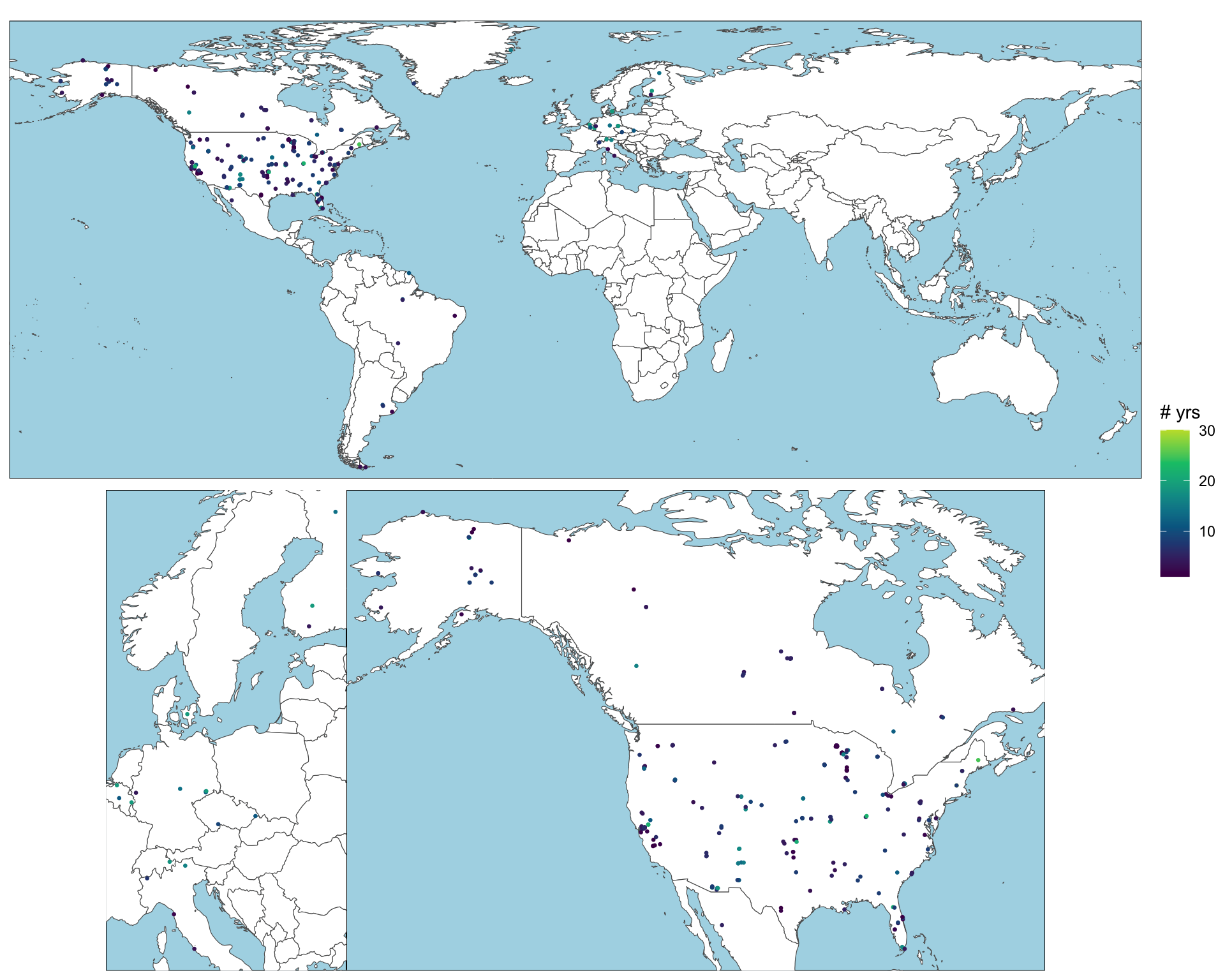

    • Scale by number of years for each date
    • Do all initial plots

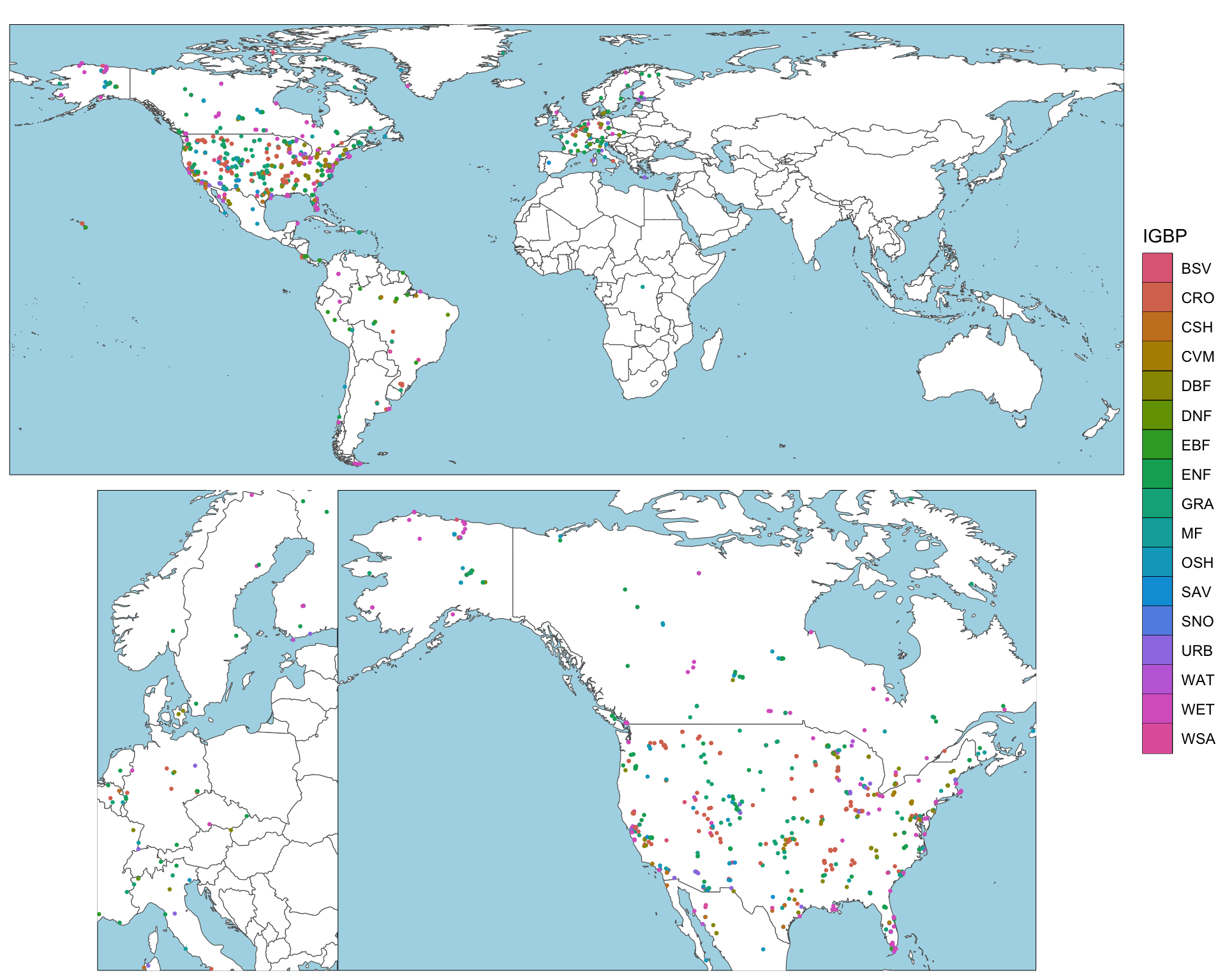

    • Change IGBP codes to definitions

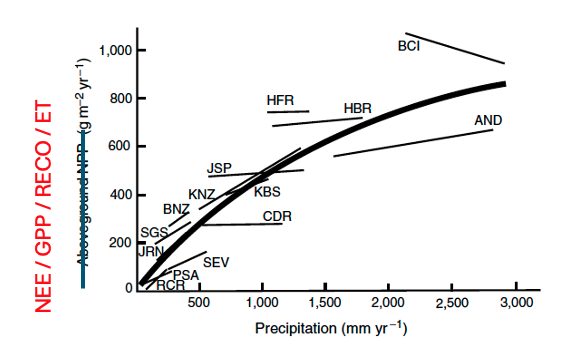

    • Add overall trend line to interannual met variability plots
    • Facet all figures for interannual met variability
    • Simplify seasonal plot code with tsibble::yearmonth and tsibble::scale_x_yearmonth
Code
# Need dev version of `amerifluxr` package to get `amf_download_fluxnet` function.
pak::pak("chuhousen/amerifluxr")
pak::pak("valentinitnelav/plotbiomes")
Code
library(dplyr)
library(lubridate)
library(ggplot2)
library(amerifluxr)
library(stringr)
library(readr)
library(purrr)
library(tidyr)
library(plotbiomes)
library(measurements)
library(ggnewscale)
library(fs)
library(geomtextpath)
library(ggtext) #for subscripts in axis labels

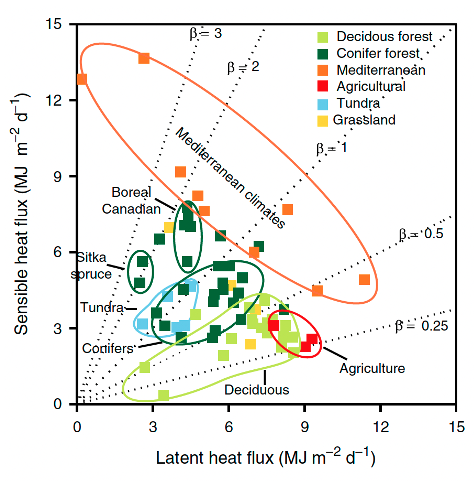

library(ggforce) #for convex hulls in bowen ratios plot

#source data loading functions
source("R/fcn_utility_FLUXNET.R")

#set default ggplot2 theme
theme_set(theme_classic() + theme(axis.title = element_markdown()))

Download data

Code
amf_sites <- amerifluxr::amf_sites()
amf_sites$COUNTRY |> unique()
 [1] "Argentina"   "Brazil"      "Canada"      "Chile"       "Colombia"
 [6] "Costa Rica"  "Mexico"      "Panama"      "Peru"        "Puerto Rico"
[11] "USA"
Code
amf_sites_nam <- amf_sites |>
  filter(COUNTRY %in% c("Mexico", "Canada", "USA")) |>
  pull(SITE_ID)

Code for downloading Ameriflux data (all sites in North America)

Code
#check what sites you already have
fluxnet_files <- tibble(
  path = dir_ls(
    "data/",
    regexp = "AMF_[^_]+_FLUXNET_FULLSET_(?:YY|DD|HH|WW)_[0-9]{4}-[0-9]{4}_.*\\.csv$",
    recurse = TRUE
  )
) |>
  mutate(
    filename = path_file(path),
    to_split = path_ext_remove(filename)
  ) |>
  separate_wider_delim(
    to_split,
    names = c(
      "source",
      "SITE_ID",
      "fluxnet",
      "set",
      "period",
      "yr_range",
      "junk"
    ),
    delim = "_"
  ) |>
  select(-fluxnet, -junk) |>
  separate_wider_delim(
    SITE_ID,
    names = c("country_code", "site"),
    delim = "-",
    cols_remove = FALSE
  )

sites_to_dl <- setdiff(amf_sites_nam, unique(fluxnet_files$SITE_ID))


zip_paths <- amf_download_fluxnet(
  user_id = "Aariq",
  user_email = "scottericr@gmail.com",
  site_id = sites_to_dl,
  data_product = "FLUXNET",
  data_variant = "FULLSET",
  data_policy = "CCBY4.0",
  agree_policy = TRUE,
  intended_use = "synthesis",
  intended_use_text = "creating pipeline for standardized figures",
  out_dir = "data/AMF"
)

# Only unzip files needed
walk(
  zip_paths,
  \(zip_path) {
    t <- c("DD", "YY", "HH") #which FULLSET CSVs to extract
    exdir <- fs::path_ext_remove(zip_path)
    #split apart the file name and insert `t` in the right place
    file_vect <- zip_path |>
      path_file() |>
      stringr::str_split("_") |>
      pluck(1)
    files <- paste(
      paste(file_vect[1:4], collapse = "_"),
      t,
      paste(file_vect[5:6], collapse = "_"),
      sep = "_"
    ) |>
      fs::path_ext_set("csv")

    unzip(zip_path, files = files, exdir = exdir)
  },
  .progress = TRUE
)

Read in data

Code
# site_metadata <- load_fluxnet_metadata() |>
#   filter(SITE_ID %in% amf_sites_nam)
# fluxnet_annual <- load_and_clean_annual_data(site_metadata)
# fluxnet_daily <- load_and_clean_daily_data(site_metadata)

fluxnet_files <- tibble(
  path = dir_ls(
    "data/",
    regexp = "AMF_[^_]+_FLUXNET_FULLSET_(?:YY|DD|HH|WW)_[0-9]{4}-[0-9]{4}_.*\\.csv$",
    recurse = TRUE
  )
) |>
  mutate(
    filename = path_file(path),
    to_split = path_ext_remove(filename)
  ) |>
  separate_wider_delim(
    to_split,
    names = c(
      "source",
      "SITE_ID",
      "fluxnet",
      "set",
      "period",
      "yr_range",
      "junk"
    ),
    delim = "_"
  ) |>
  select(-fluxnet, -junk) |>
  separate_wider_delim(
    SITE_ID,
    names = c("country_code", "site"),
    delim = "-",
    cols_remove = FALSE
  )

#check if I got all the sites
length(unique(fluxnet_files$SITE_ID))
[1] 299
Code
length(amf_sites_nam)
[1] 720
Code
missing <- setdiff(amf_sites_nam, unique(fluxnet_files$SITE_ID))
missing #amerifluxr says it cant find data for these
  [1] "CA-AF1" "CA-BCW" "CA-BSM" "CA-Ca3" "CA-CF2" "CA-CF3" "CA-Cha" "CA-CQ1"
  [9] "CA-DL1" "CA-DL2" "CA-EM3" "CA-ER2" "CA-IQT" "CA-KLP" "CA-Let" "CA-LU1"
 [17] "CA-LU2" "CA-LuM" "CA-MR3" "CA-MR5" "CA-Na1" "CA-NS8" "CA-Oas" "CA-Obs"
 [25] "CA-Ojp" "CA-Qcu" "CA-RBM" "CA-RPn" "CA-RPp" "CA-RSB" "CA-SF3" "CA-SJ1"
 [33] "CA-SJ2" "CA-SJ3" "CA-TP2" "CA-TP4" "CA-TPA" "CA-TVC" "CA-WP1" "CA-WP2"
 [41] "CA-WP3" "CA-WRF" "MX-Aog" "MX-Asf" "MX-BRN" "MX-CLS" "MX-EMg" "MX-Iit"
 [49] "MX-ISD" "MX-Oak" "MX-PMm" "MX-Ray" "MX-Sgt" "US-A03" "US-A10" "US-A12"
 [57] "US-A14" "US-A20" "US-A30" "US-A31" "US-A33" "US-A38" "US-A40" "US-A41"
 [65] "US-AaG" "US-ABa" "US-ABb" "US-ABc" "US-ABd" "US-ABe" "US-AC2" "US-AC3"
 [73] "US-AC5" "US-AC6" "US-Act" "US-ADR" "US-AF1" "US-AMS" "US-An1" "US-An2"
 [81] "US-An3" "US-AoL" "US-ASL" "US-Atq" "US-Aud" "US-AV1" "US-AV2" "US-AV3"
 [89] "US-AV4" "US-AV5" "US-BCM" "US-Bd4" "US-Bd5" "US-Bd6" "US-BdA" "US-BdC"
 [97] "US-Beo" "US-Bes" "US-BFS" "US-BgC" "US-Bkg" "US-Blk" "US-Blo" "US-BMM"
[105] "US-Bn1" "US-Bn2" "US-Bn3" "US-Bo1" "US-Bo2" "US-Br1" "US-Br2" "US-Br3"
[113] "US-Brw" "US-Bsg" "US-BSM" "US-BWa" "US-BWb" "US-BWe" "US-BZL" "US-CaV"
[121] "US-CC1" "US-CC2" "US-Ced" "US-ChR" "US-CLF" "US-CMW" "US-CN1" "US-CN2"
[129] "US-CPF" "US-CPk" "US-CRE" "US-CRW" "US-CS7" "US-Ctn" "US-CU1" "US-CwG"
[137] "US-Cwt" "US-CX1" "US-CX2" "US-CZ1" "US-CZ2" "US-CZ3" "US-CZ4" "US-DBk"
[145] "US-DCS" "US-Dea" "US-Deu" "US-Dia" "US-Dix" "US-Dk1" "US-Dk2" "US-Dk3"
[153] "US-DPP" "US-DUF" "US-E32" "US-EA4" "US-EKH" "US-EKN" "US-EKP" "US-EKY"
[161] "US-EPM" "US-FBE" "US-Fo1" "US-Fo2" "US-FPe" "US-FR1" "US-FR2" "US-FR3"
[169] "US-GBT" "US-GCE" "US-GL2" "US-GMF" "US-Goo" "US-GR8" "US-GR9" "US-GZ1"
[177] "US-GZ2" "US-GZ3" "US-Ha2" "US-HB5" "US-HB6" "US-HB7" "US-HBa" "US-HBb"
[185] "US-HBK" "US-Hn1" "US-Ho3" "US-HPY" "US-HRA" "US-HRC" "US-HRN" "US-HRo"
[193] "US-HRP" "US-HRS" "US-HVa" "US-IAA" "US-IAB" "US-IAC" "US-IAM" "US-IB1"
[201] "US-IB2" "US-IL1" "US-INa" "US-INb" "US-INc" "US-INd" "US-INe" "US-INf"
[209] "US-INg" "US-INi" "US-INj" "US-INn" "US-INp" "US-Ivo" "US-JLN" "US-JLR"
[217] "US-Jo3" "US-JRn" "US-KCM" "US-KFB" "US-KGF" "US-KL1" "US-KL2" "US-KL3"
[225] "US-KM1" "US-KM2" "US-KM3" "US-KM4" "US-KS4" "US-KUO" "US-KUT" "US-Kyv"
[233] "US-LA1" "US-LA2" "US-LGr" "US-LL1" "US-LL2" "US-LL3" "US-LMA" "US-LMB"
[241] "US-LMS" "US-LMW" "US-Los" "US-LPH" "US-LS1" "US-LU1" "US-LWW" "US-MAC"
[249] "US-MBP" "US-MC1" "US-MC2" "US-MCP" "US-Me4" "US-Me5" "US-Me7" "US-MEF"
[257] "US-Men" "US-MFs" "US-MG1" "US-MH1" "US-MH2" "US-Mi1" "US-Mi2" "US-Mi3"
[265] "US-Mj1" "US-Mj2" "US-MRf" "US-MRM" "US-MSR" "US-Mur" "US-MVF" "US-MVW"
[273] "US-MWA" "US-MWF" "US-MWS" "US-MWU" "US-MWW" "US-MZA" "US-NC2" "US-NC5"
[281] "US-Ne3" "US-NMj" "US-NP1" "US-NP2" "US-NR2" "US-NR3" "US-NR4" "US-Nrf"
[289] "US-Nrs" "US-NSa" "US-NSb" "US-NSW" "US-OF1" "US-OF2" "US-OK1" "US-OK2"
[297] "US-OPE" "US-PeA" "US-PFa" "US-PFf" "US-PFo" "US-PFs" "US-PHM" "US-PiU"
[305] "US-PLM" "US-PLo" "US-Pon" "US-PVA" "US-Px1" "US-Px2" "US-Px3" "US-Px4"
[313] "US-Px5" "US-RC1" "US-RC2" "US-RC3" "US-RC4" "US-RC5" "US-RFE" "US-RFW"
[321] "US-RGG" "US-RGR" "US-RTS" "US-SB1" "US-SB2" "US-SB3" "US-SCc" "US-SCd"
[329] "US-SCf" "US-SCg" "US-SCs" "US-SCw" "US-SdH" "US-SDU" "US-SFP" "US-Shd"
[337] "US-SHS" "US-Si1" "US-Si2" "US-SJ1" "US-SJ2" "US-Skr" "US-SM1" "US-Snd"
[345] "US-SO2" "US-SO3" "US-SO4" "US-SP2" "US-SP3" "US-SP4" "US-StS" "US-SuM"
[353] "US-SuS" "US-SuW" "US-SVC" "US-SVP" "US-Sx1" "US-Sx2" "US-Sx3" "US-SZ1"
[361] "US-SZ2" "US-SZ3" "US-TaS" "US-TCS" "US-TEF" "US-TFF" "US-TKs" "US-TLR"
[369] "US-TrB" "US-TrS" "US-Tur" "US-Tx1" "US-Tx2" "US-Tx3" "US-Tx4" "US-Tx5"
[377] "US-Tx6" "US-Tx7" "US-Tx8" "US-Tx9" "US-Uaf" "US-UG1" "US-UiA" "US-UiB"
[385] "US-UiC" "US-UiD" "US-UiE" "US-UiF" "US-UiG" "US-ULM" "US-Upa" "US-UR0"
[393] "US-UR1" "US-UR2" "US-UR3" "US-UR4" "US-UR5" "US-UR6" "US-UR7" "US-UR8"
[401] "US-UTG" "US-UTL" "US-UTM" "US-UTN" "US-UTW" "US-UUC" "US-UUP" "US-Vcs"
[409] "US-VFP" "US-VT1" "US-VT2" "US-WBW" "US-WCr" "US-Wdn" "US-WEP" "US-Wgr"
[417] "US-Wi2" "US-Wlr" "US-Wpp" "US-Wrc" "US-WT1" "US-WT2" "US-WT3" "US-Wwt"
[425] "US-xLE" "US-xPU" "US-xSP" "US-xTE" "US-YK1" "US-Ylw" "US-YNS" "US-ZF1"
[433] "US-ZF2"
Code
# because the CSVs all have different numbers of columns, you must map read_csv
# and rowbind the results instead of just passing the list of files to
# read_csv() which would be faster

fluxnet_annual_list <- fluxnet_files |>
  filter(period == "YY") |>
  pull(path) |>
  map(read_csv)

fluxnet_annual <- fluxnet_annual_list |>
  list_rbind(names_to = "path") |>
  left_join(fluxnet_files |> select(path, SITE_ID), by = join_by(path)) |>
  select(-path) |>
  relocate(SITE_ID, .before = 1) |>
  mutate(
    across(where(is.numeric), \(x) na_if(x, -9999)),
    year = as.integer(TIMESTAMP),
    .before = TIMESTAMP
  )

fluxnet_daily_list <- fluxnet_files |>
  filter(period == "DD") |>
  pull(path) |>
  map(read_csv)

fluxnet_daily <- fluxnet_daily_list |>
  list_rbind(names_to = "path") |>
  left_join(fluxnet_files |> select(path, SITE_ID), by = join_by(path)) |>
  select(-path) |>
  relocate(SITE_ID, .before = 1) |>
  mutate(
    across(where(is.numeric), \(x) na_if(x, -9999)),
    date = lubridate::ymd(TIMESTAMP),
    .before = TIMESTAMP
  )

#mrege in site "metadata"
site_metadata <- load_fluxnet_metadata()
fluxnet_daily <- left_join(fluxnet_daily, site_metadata, by = join_by(SITE_ID))
fluxnet_annual <- left_join(
  fluxnet_annual,
  site_metadata,
  by = join_by(SITE_ID)
)
Code
#set up all the possible plot labels as objects for easy reference.  These get formatted by `marquee`

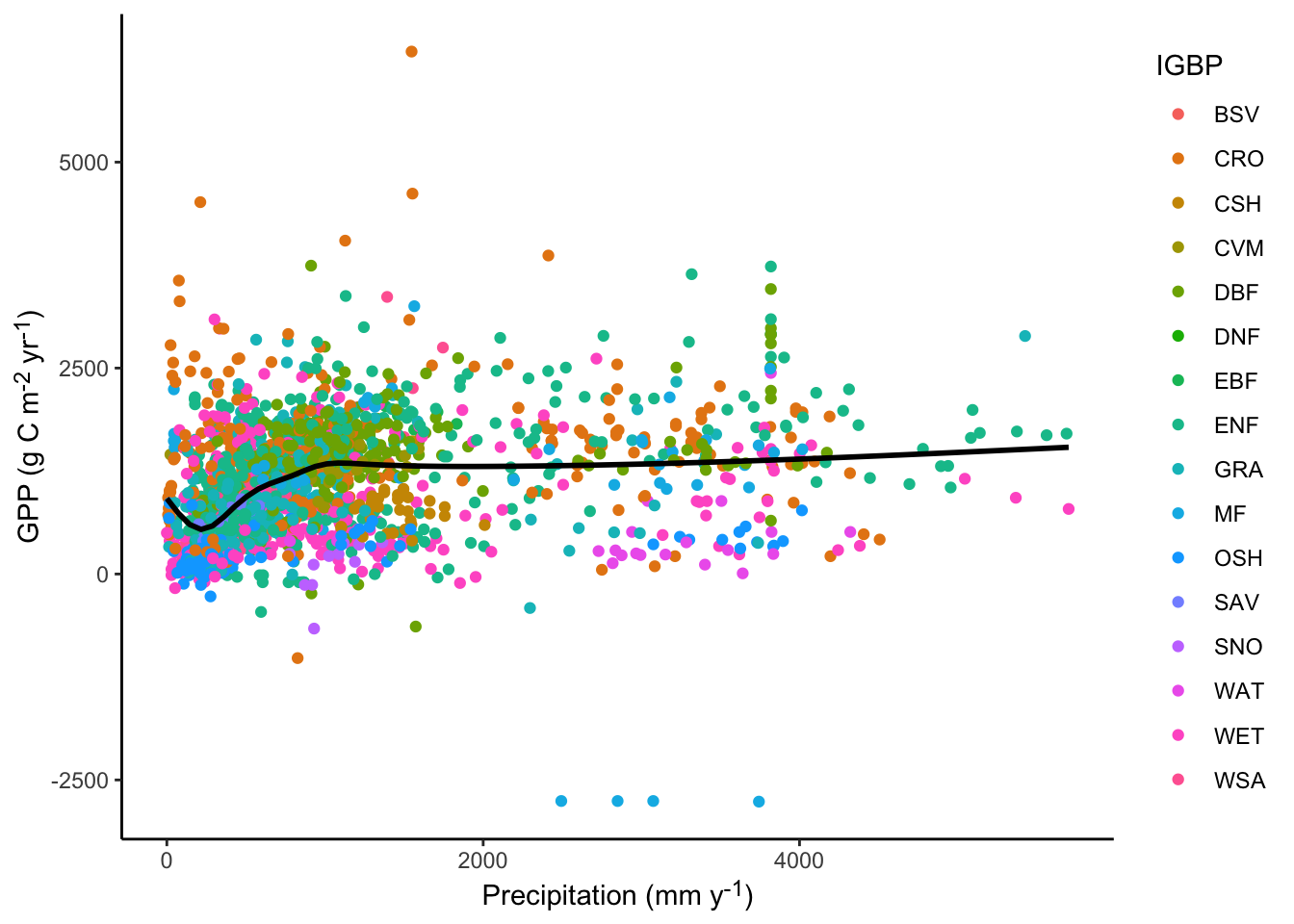

lab_precip_annual <- "Precipitation (mm y<sup>-1</sup>)"
lab_gpp_daily <- "GPP (g C m<sup>-2</sup> d<sup>-1</sup>)"
lab_nee_daily <- "NEE (g C m<sup>-2</sup> d<sup>-1</sup>)"
lab_reco_daily <- "RECO (g C m<sup>-2</sup> d<sup>-1</sup>)"
lab_gpp_annual <- "GPP (g C m<sup>-2</sup> yr<sup>-1</sup>)"
lab_nee_annual <- "NEE (g C m<sup>-2</sup> yr<sup>-1</sup>)"
lab_reco_annual <- "RECO (g C m<sup>-2</sup> yr<sup>-1</sup>)"

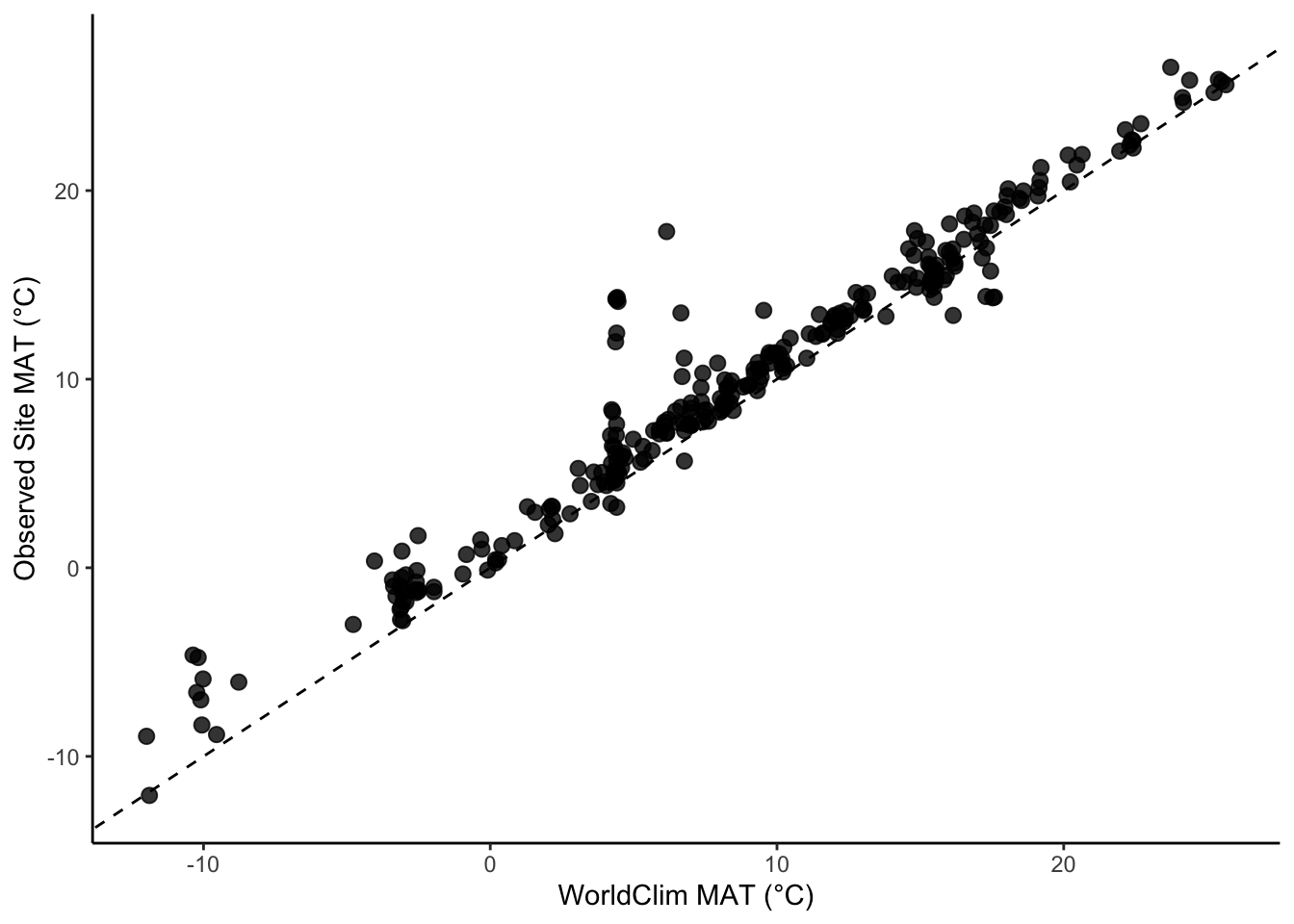

QA/QC

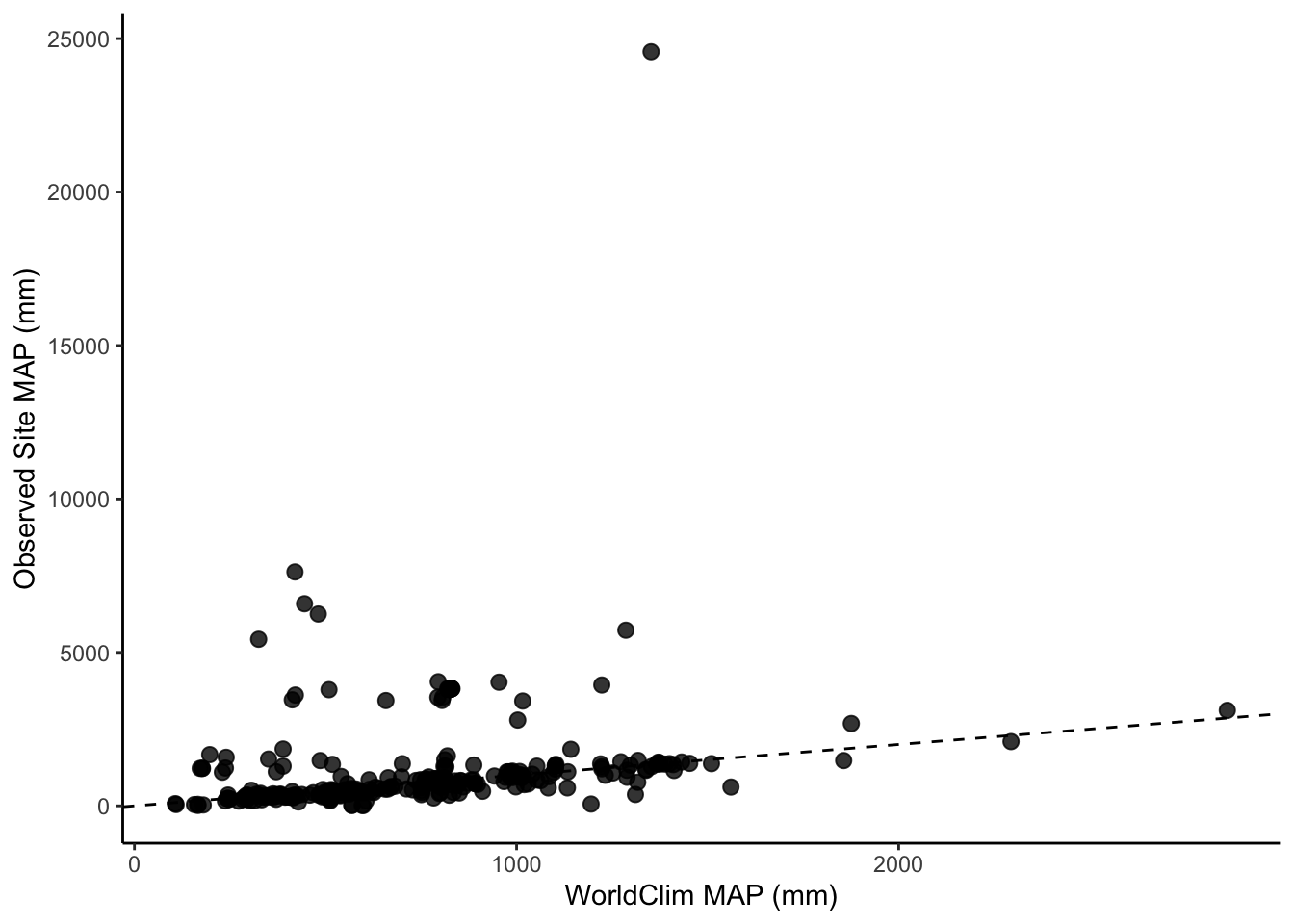

2 sites have annual precip > 6000mm—that’s gotta be an error

Code
fluxnet_annual <- fluxnet_annual |> filter(P_F < 6000)

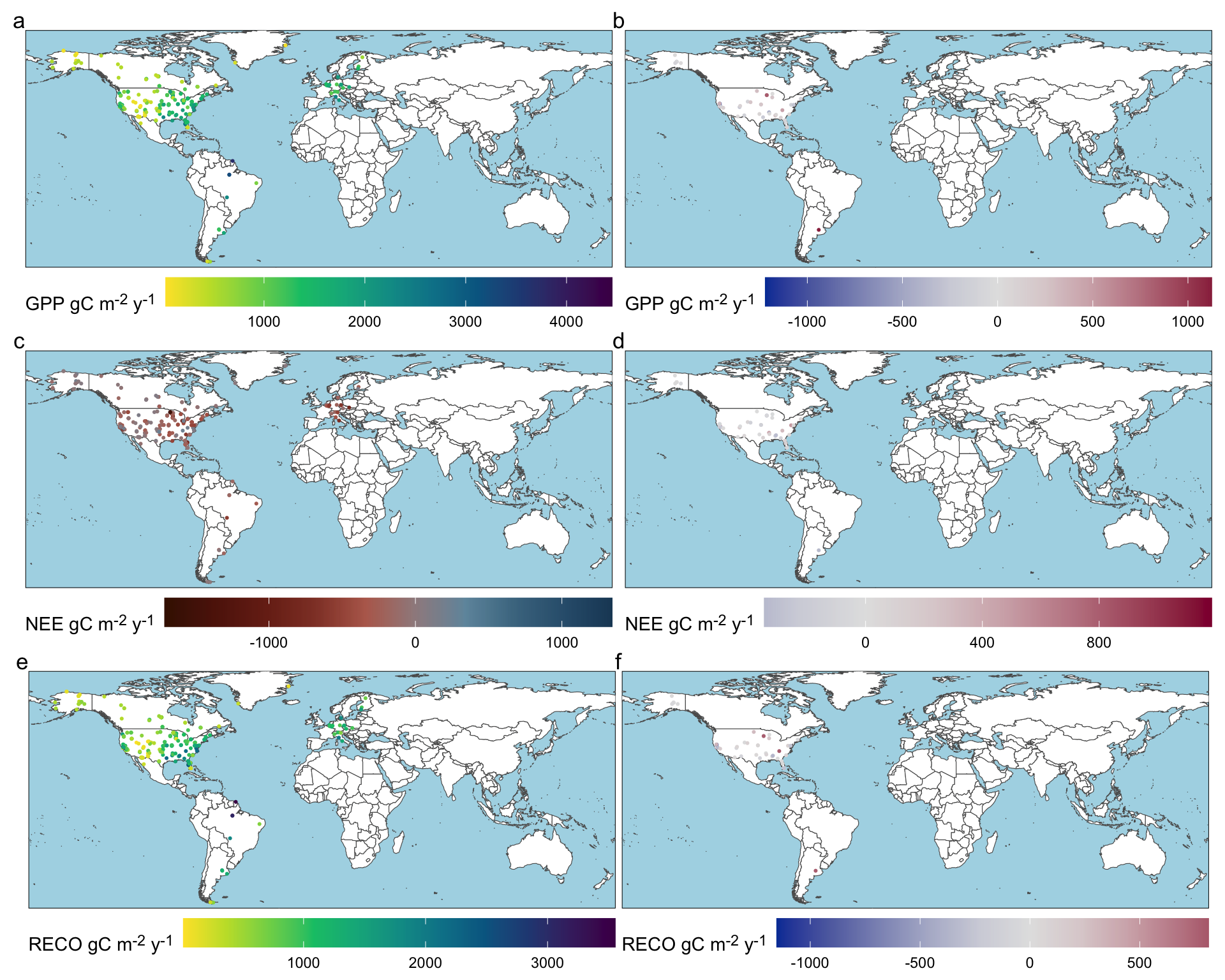

Figures

Find all variables described on the FULLSET Data Product page. Plots are generally of 3 variables:

  1. GPP_NT_VUT_REF
  2. RECO_NT_VUT_REF
  3. NEE_VUT_REF

Entire time series (single site)

Lots of ways to smooth time series (i.e., filter)

  • Simple running mean from this book chapter
  • Takes mean of value and (n-1) / 2 values on either side of it
  • Bigger window size = more averaging
Code
window_size <- 51
Code

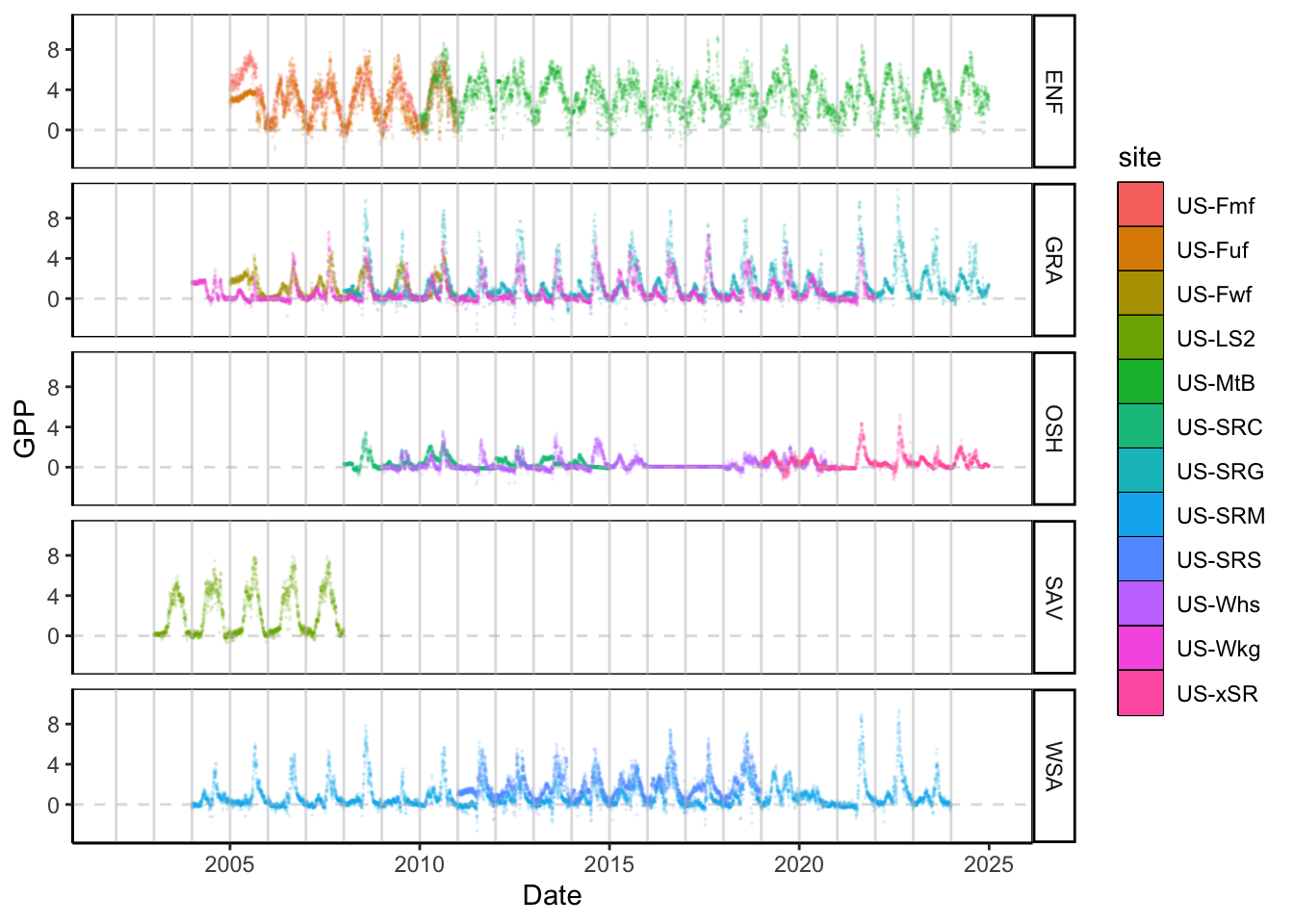

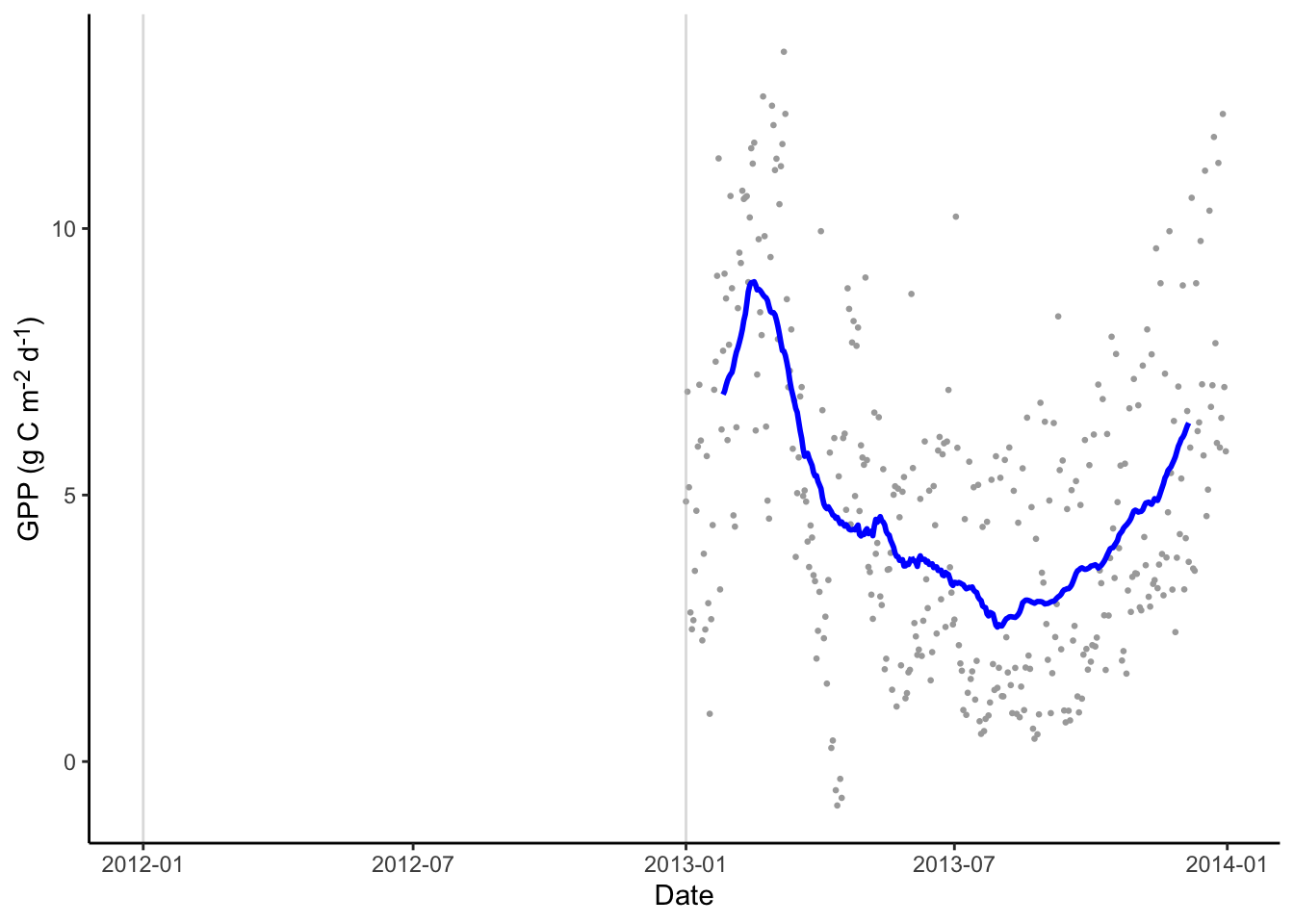

total_ts_gpp <- fluxnet_daily %>%
  filter(SITE_ID == first(SITE_ID)) |>
  mutate(
    running_mean_gpp = stats::filter(
      GPP_NT_VUT_REF,
      rep(1 / window_size, window_size)
    )
  )

yr_start_dates <- total_ts_gpp %>%
  filter(grepl("-01-01", date)) %>%
  pull(date)

ggplot(total_ts_gpp, aes(x = date, y = GPP_NT_VUT_REF)) +
  geom_point(size = 0.5, color = "darkgrey") +
  geom_line(aes(y = running_mean_gpp), color = "blue", lwd = 1) +
  geom_vline(xintercept = yr_start_dates, color = "grey", alpha = 0.5) +
  labs(x = "Date", y = lab_gpp_daily)

Code

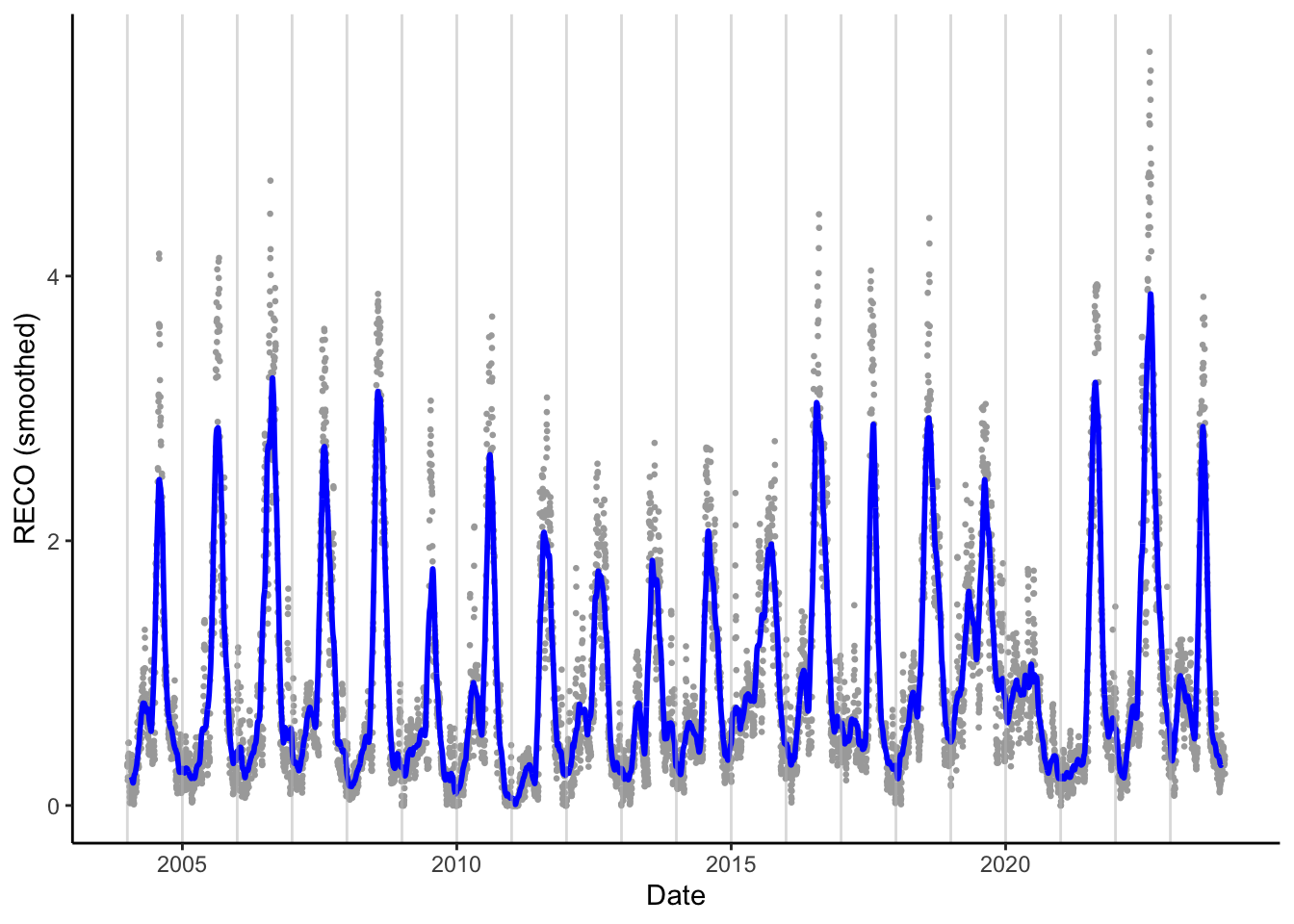

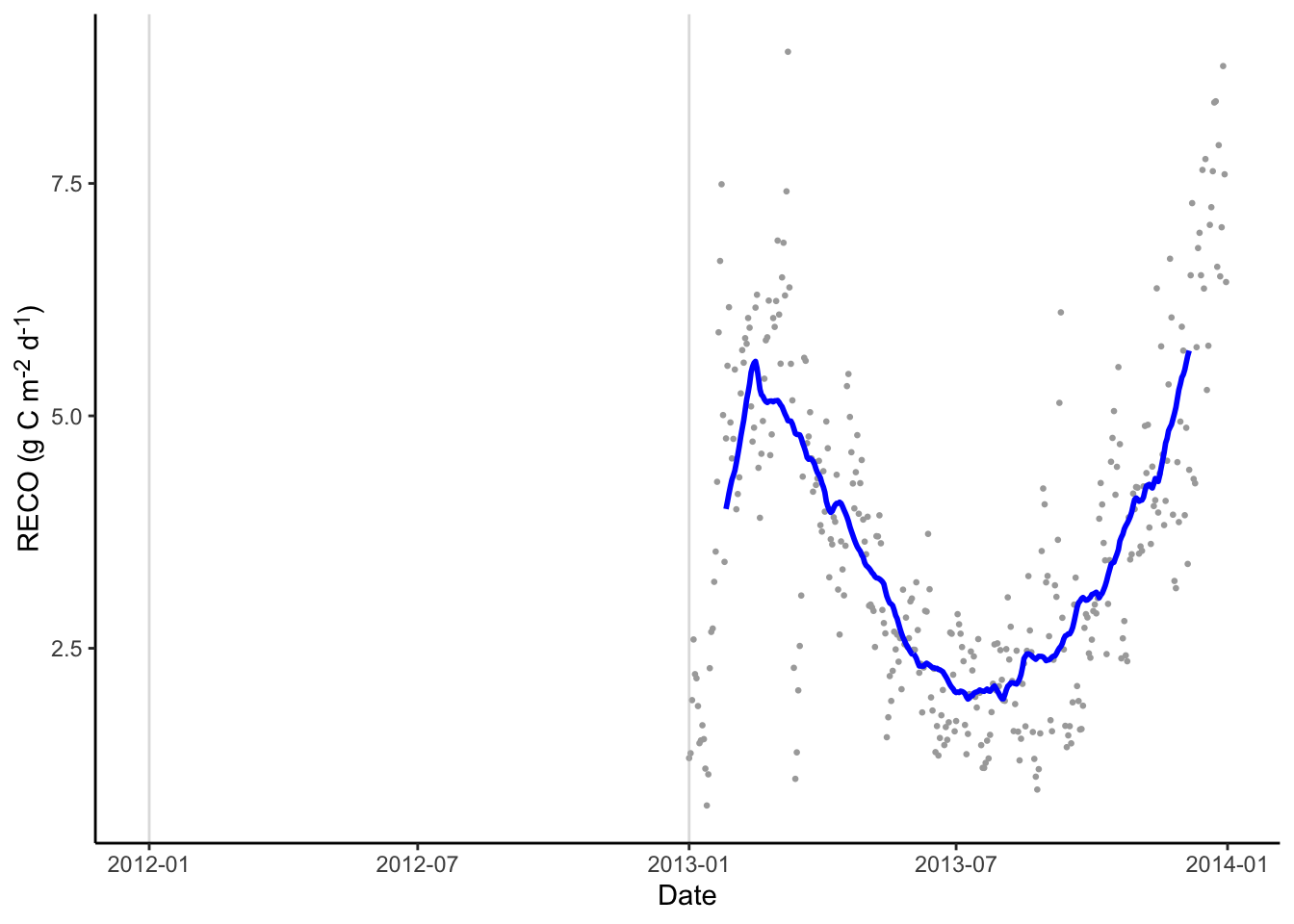

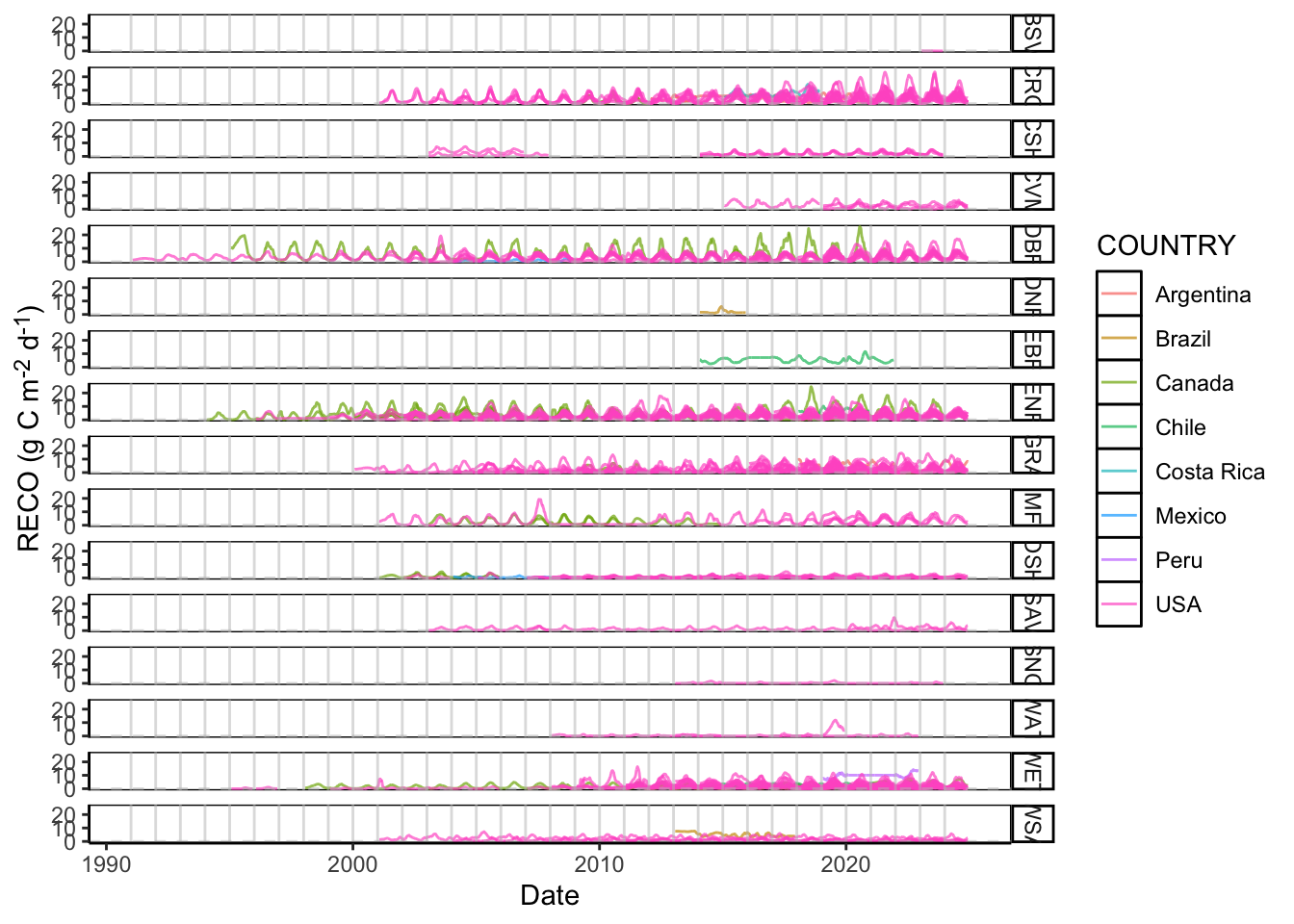

total_ts_reco <- fluxnet_daily %>%
  filter(SITE_ID == first(SITE_ID)) |>
  mutate(
    running_mean_reco = stats::filter(
      RECO_NT_VUT_REF,
      rep(1 / window_size, window_size)
    )
  )

ggplot(total_ts_reco, aes(x = date, y = RECO_NT_VUT_REF)) +
  geom_point(size = 0.5, color = "darkgrey") +
  geom_line(aes(y = running_mean_reco), color = "blue", lwd = 1) +
  geom_vline(xintercept = yr_start_dates, color = "grey", alpha = 0.5) +
  labs(x = "Date", y = lab_reco_daily)

Code

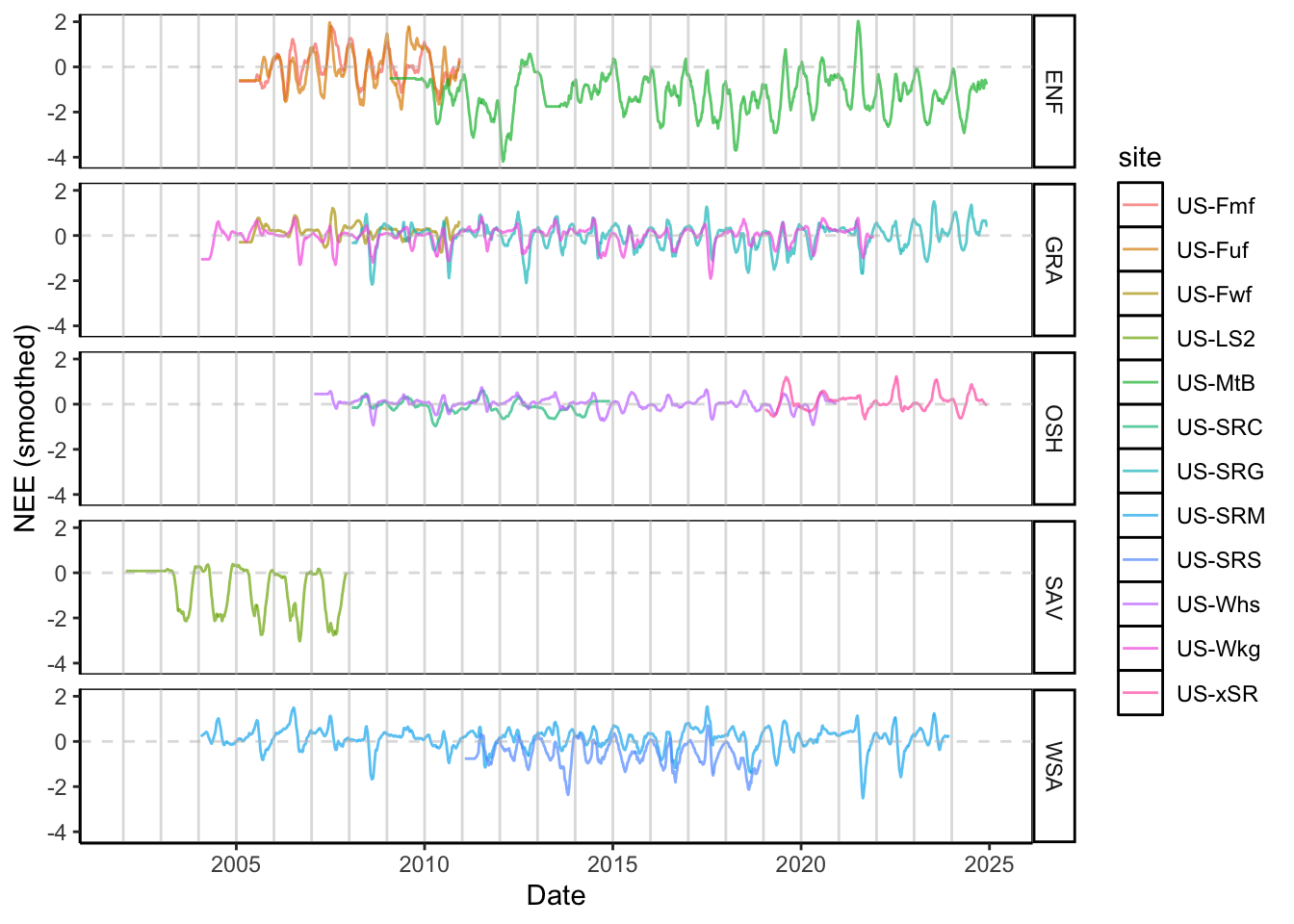

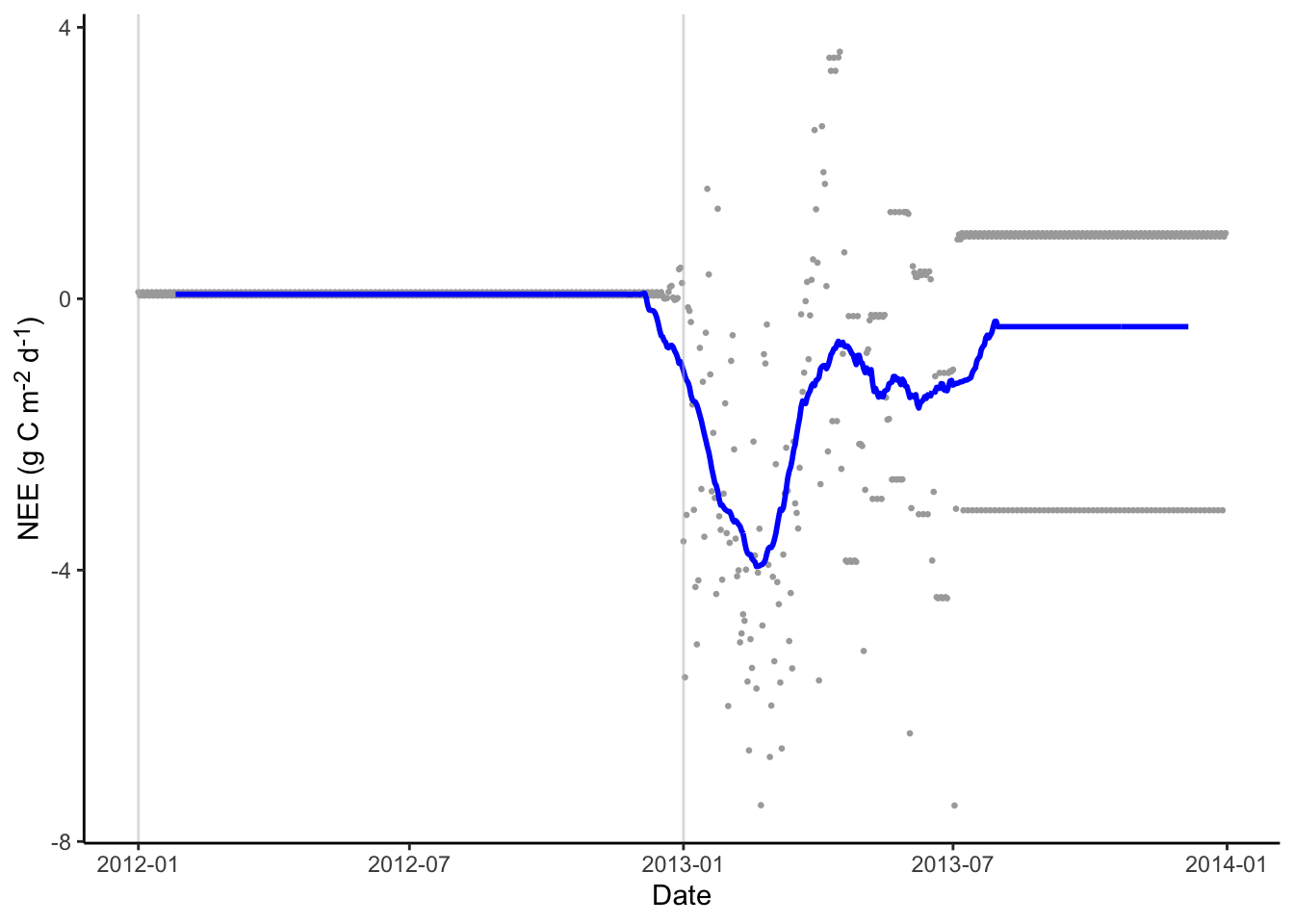

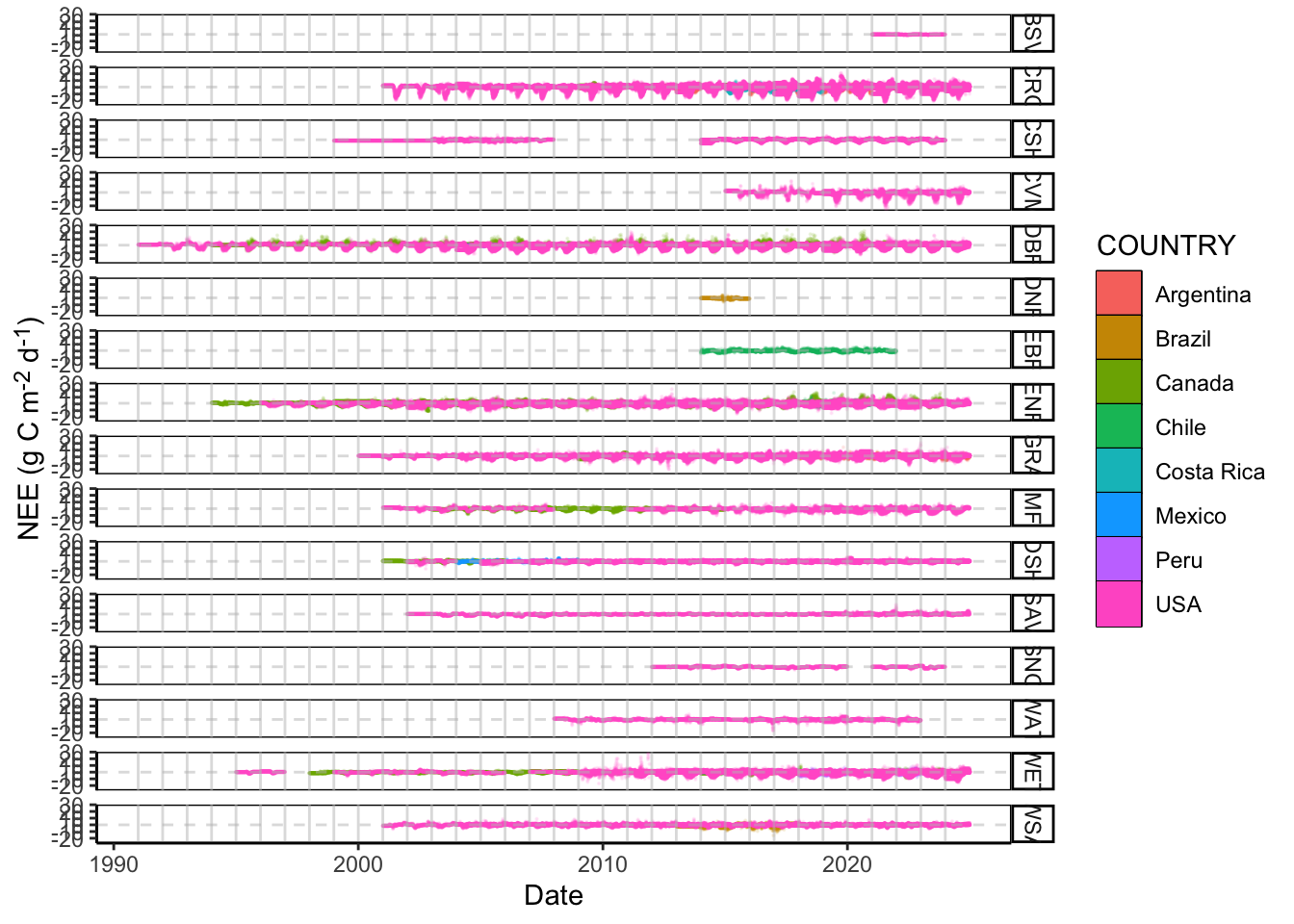

total_ts_nee <- fluxnet_daily %>%
  filter(SITE_ID == first(SITE_ID)) |>
  mutate(
    running_mean_nee = stats::filter(
      NEE_VUT_REF,
      rep(1 / window_size, window_size)
    )
  )

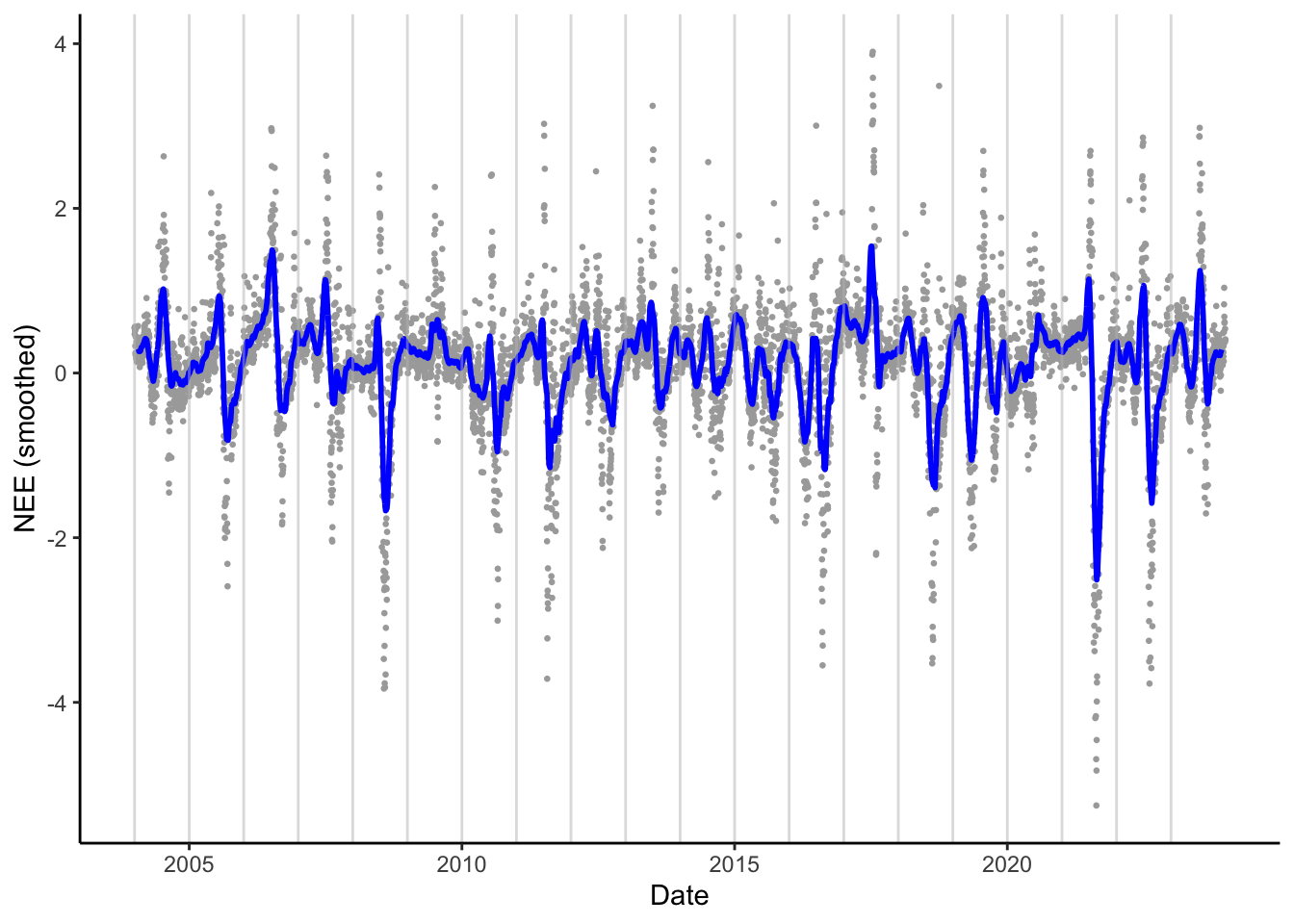

ggplot(total_ts_nee, aes(x = date, y = NEE_VUT_REF)) +
  geom_point(size = 0.5, color = "darkgrey") +
  geom_line(aes(y = running_mean_nee), color = "blue", lwd = 1) +
  geom_vline(xintercept = yr_start_dates, color = "grey", alpha = 0.5) +
  labs(x = "Date", y = lab_nee_daily)

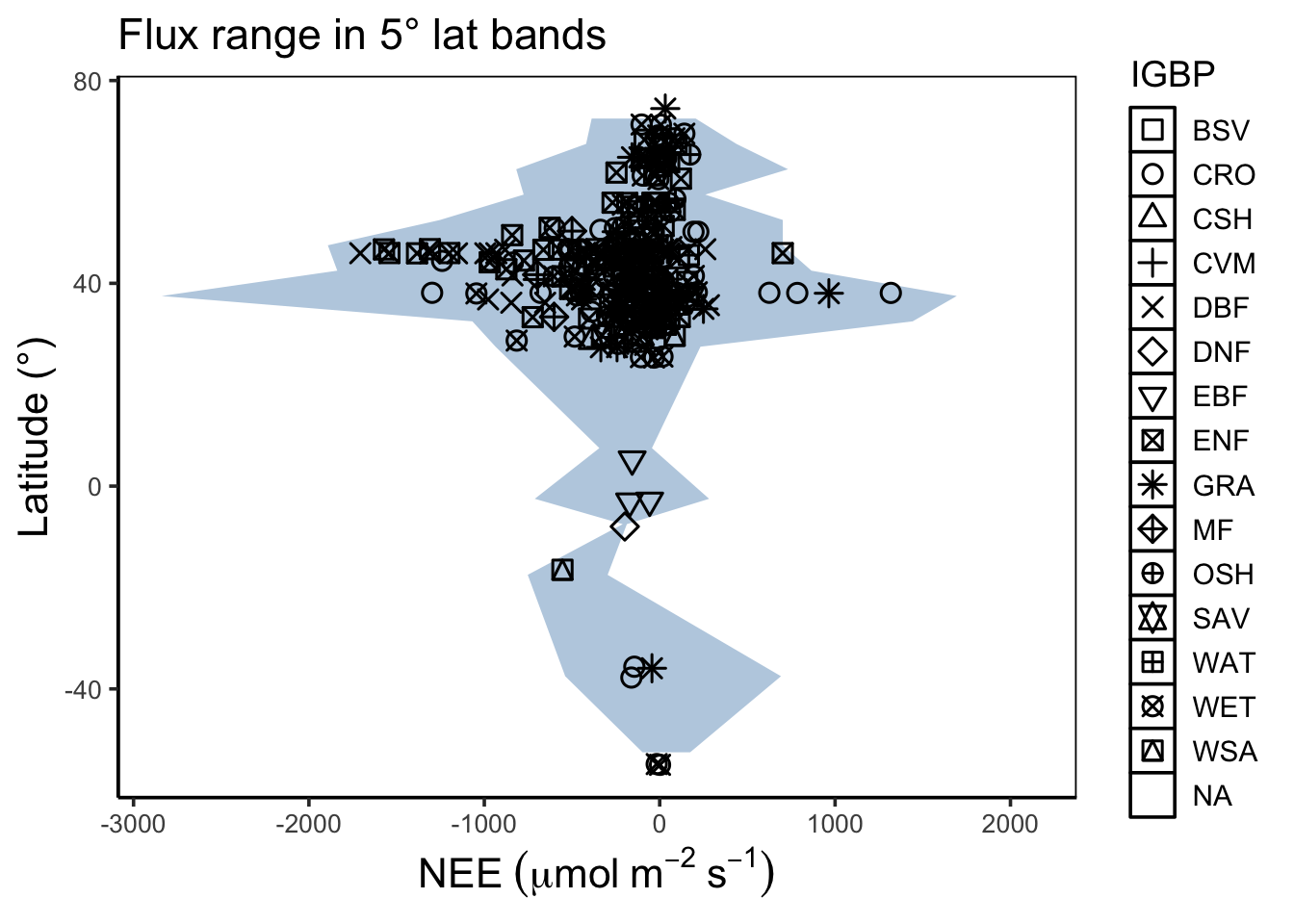

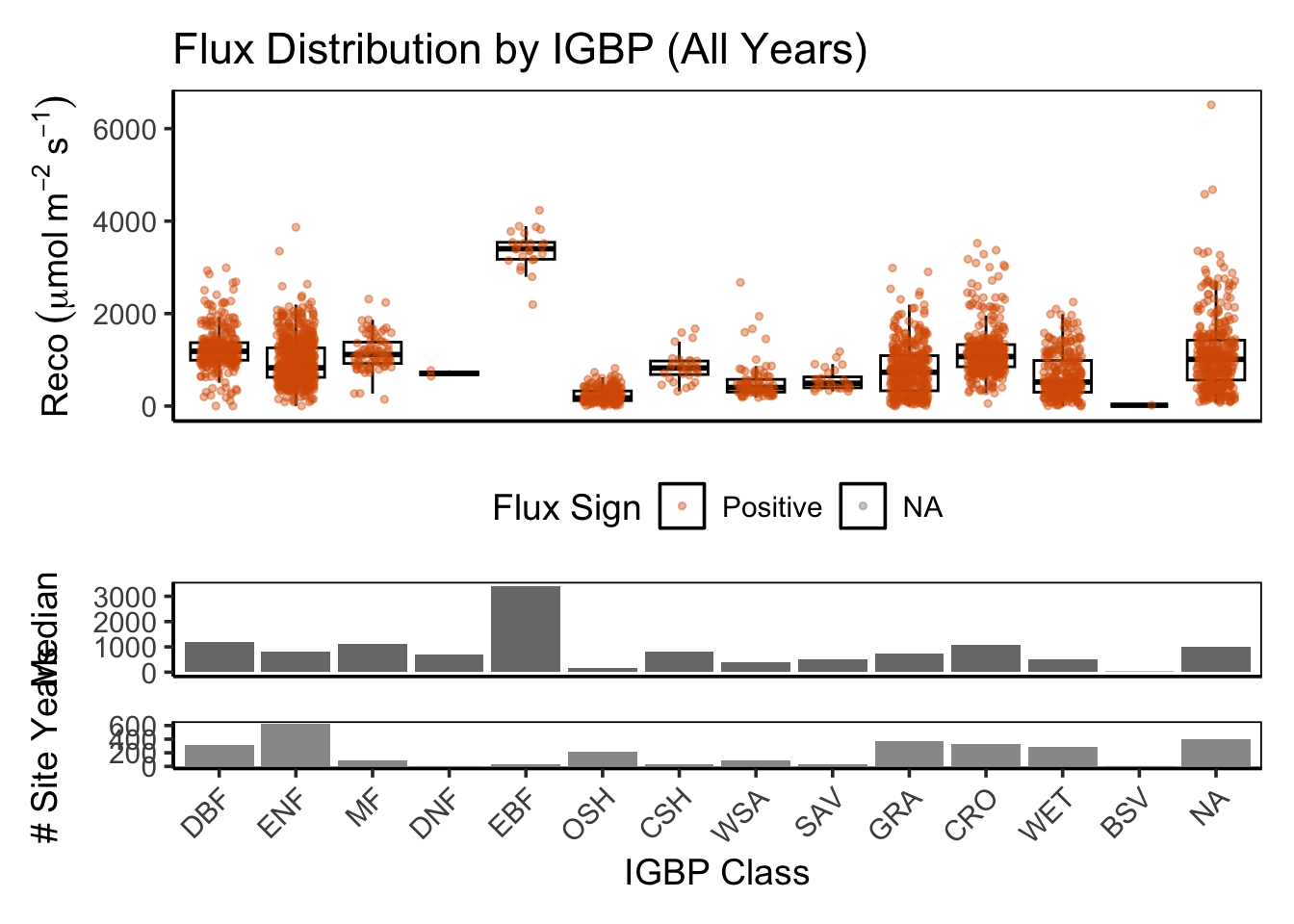

Entire time series (multiple sites)

Same smoother as used for single site.

Code
total_ts_ms <- fluxnet_daily %>%
  group_by(SITE_ID) %>%
  mutate(
    running_mean_gpp = stats::filter(
      GPP_NT_VUT_REF,
      rep(1 / window_size, window_size)
    ),
    running_mean_reco = stats::filter(
      RECO_NT_VUT_REF,
      rep(1 / window_size, window_size)
    ),
    running_mean_nee = stats::filter(
      NEE_VUT_REF,
      rep(1 / window_size, window_size)
    )
  )

yr_start_dates_ms <- total_ts_ms %>%
  filter(grepl("-01-01", date)) %>%
  pull(date)

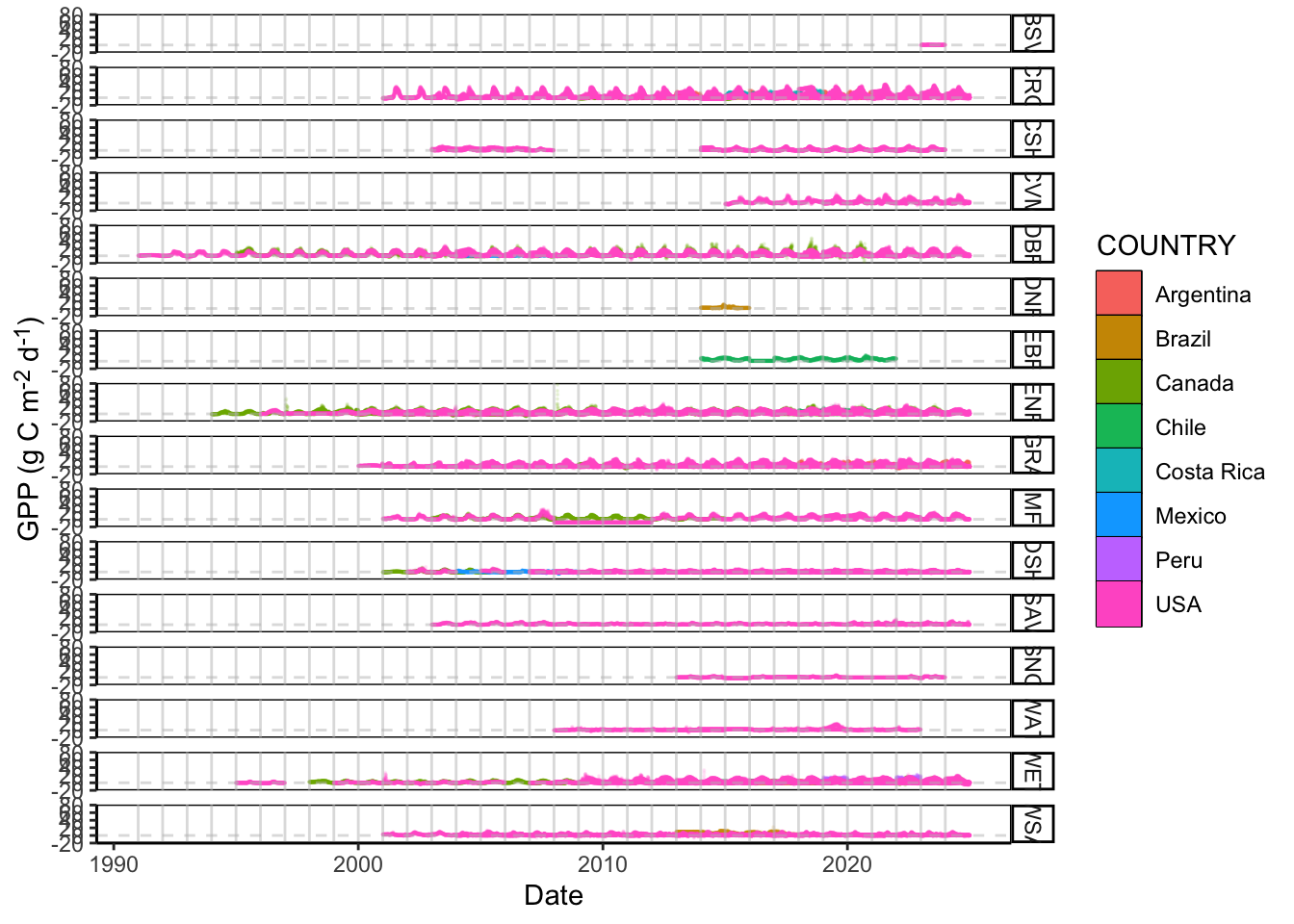

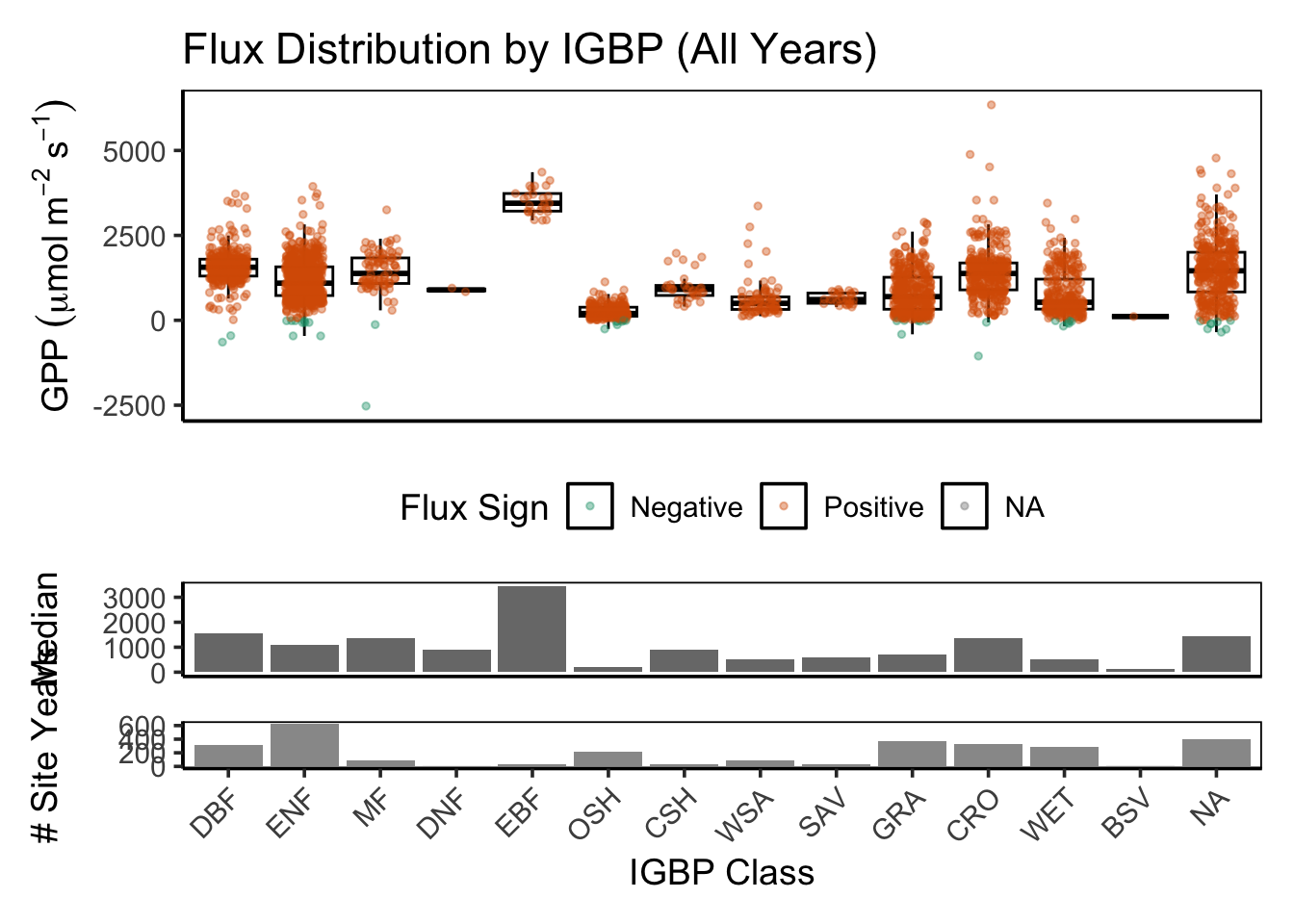

Show entire time series of GPP for all sites, with points for daily values.

Code
ggplot(
  total_ts_ms,
  aes(
    x = date,
    y = GPP_NT_VUT_REF,
    color = COUNTRY,
    fill = COUNTRY,
    group = SITE_ID
  )
) +
  geom_point(size = 0.1, alpha = 0.1, key_glyph = draw_key_rect) +
  geom_vline(xintercept = yr_start_dates_ms, color = "grey", alpha = 0.5) +
  geom_hline(yintercept = 0, color = "grey", alpha = 0.5, linetype = "dashed") +
  facet_grid(vars(IGBP)) +
  guides(colour = guide_legend(override.aes = list(alpha = 1))) +
  labs(x = "Date", y = lab_gpp_daily) +
  theme(panel.background = element_rect(color = "black"))

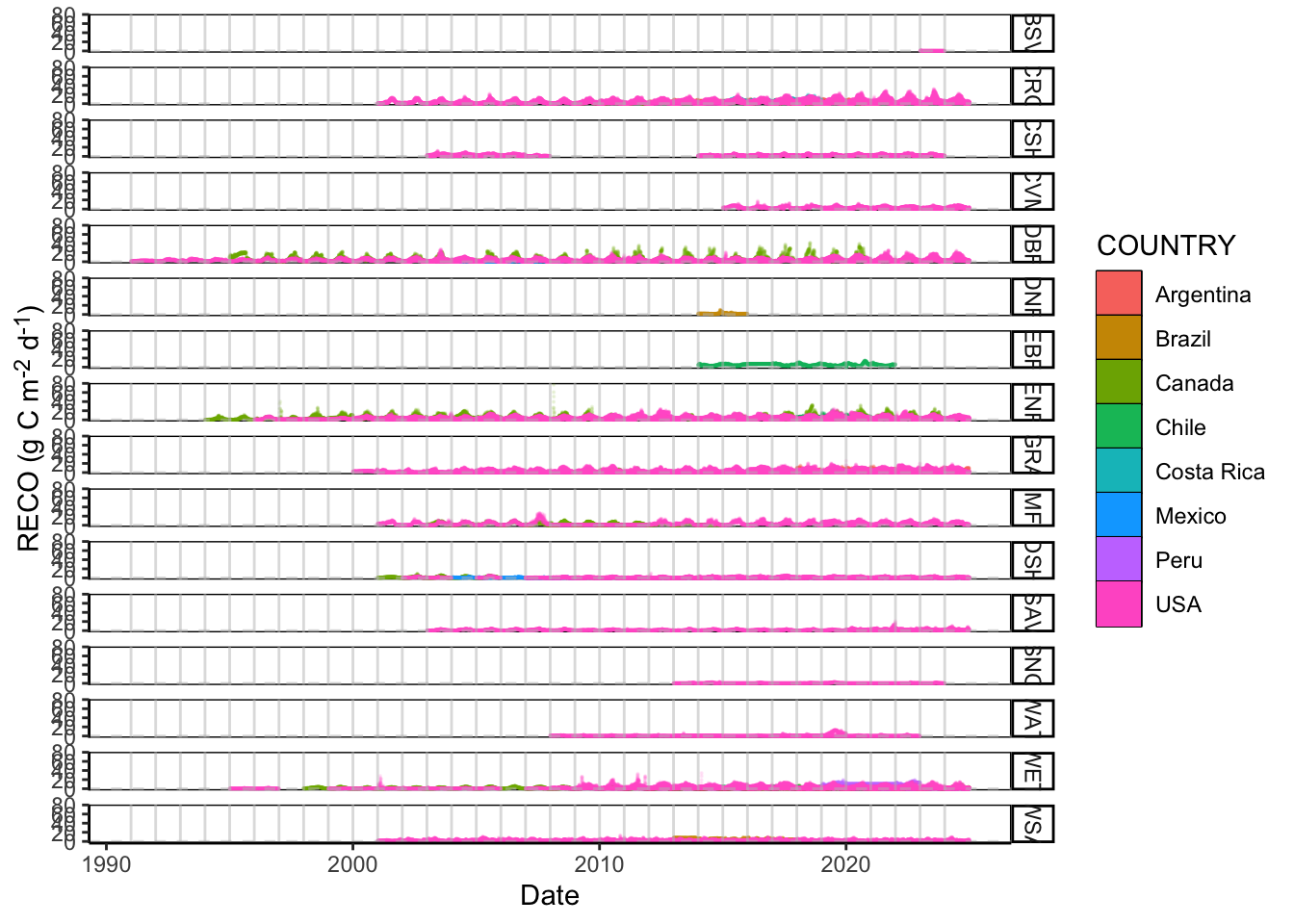

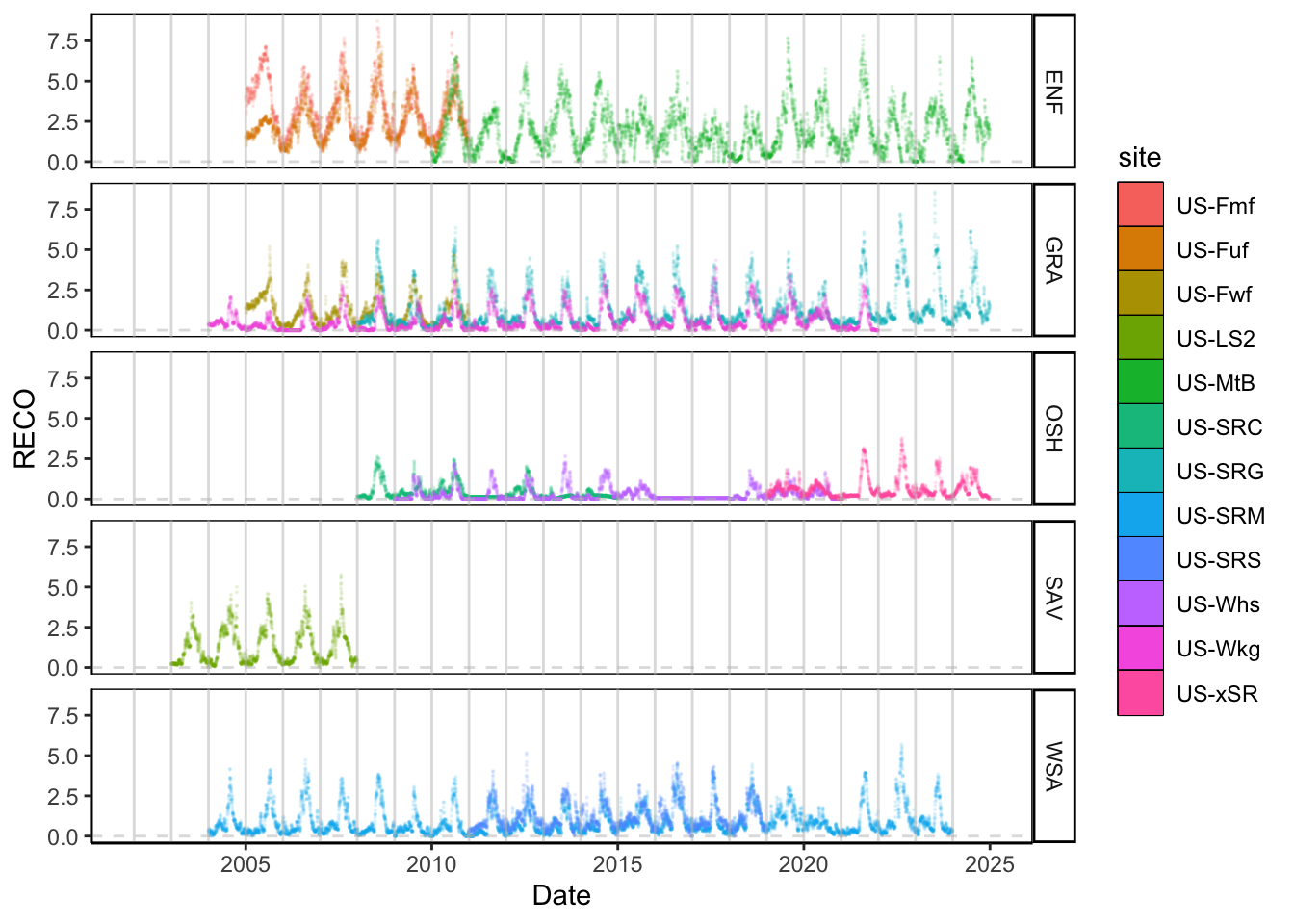

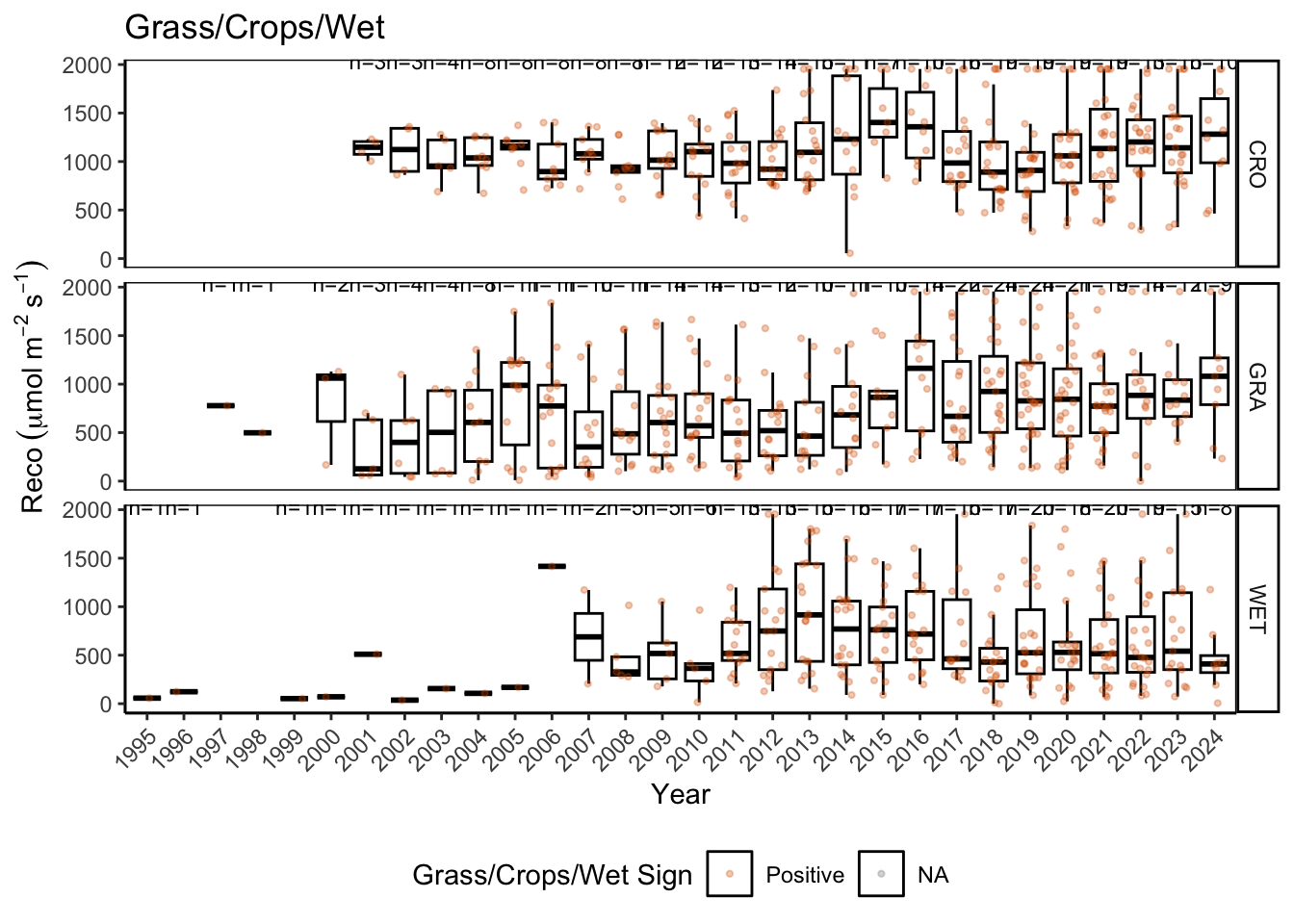

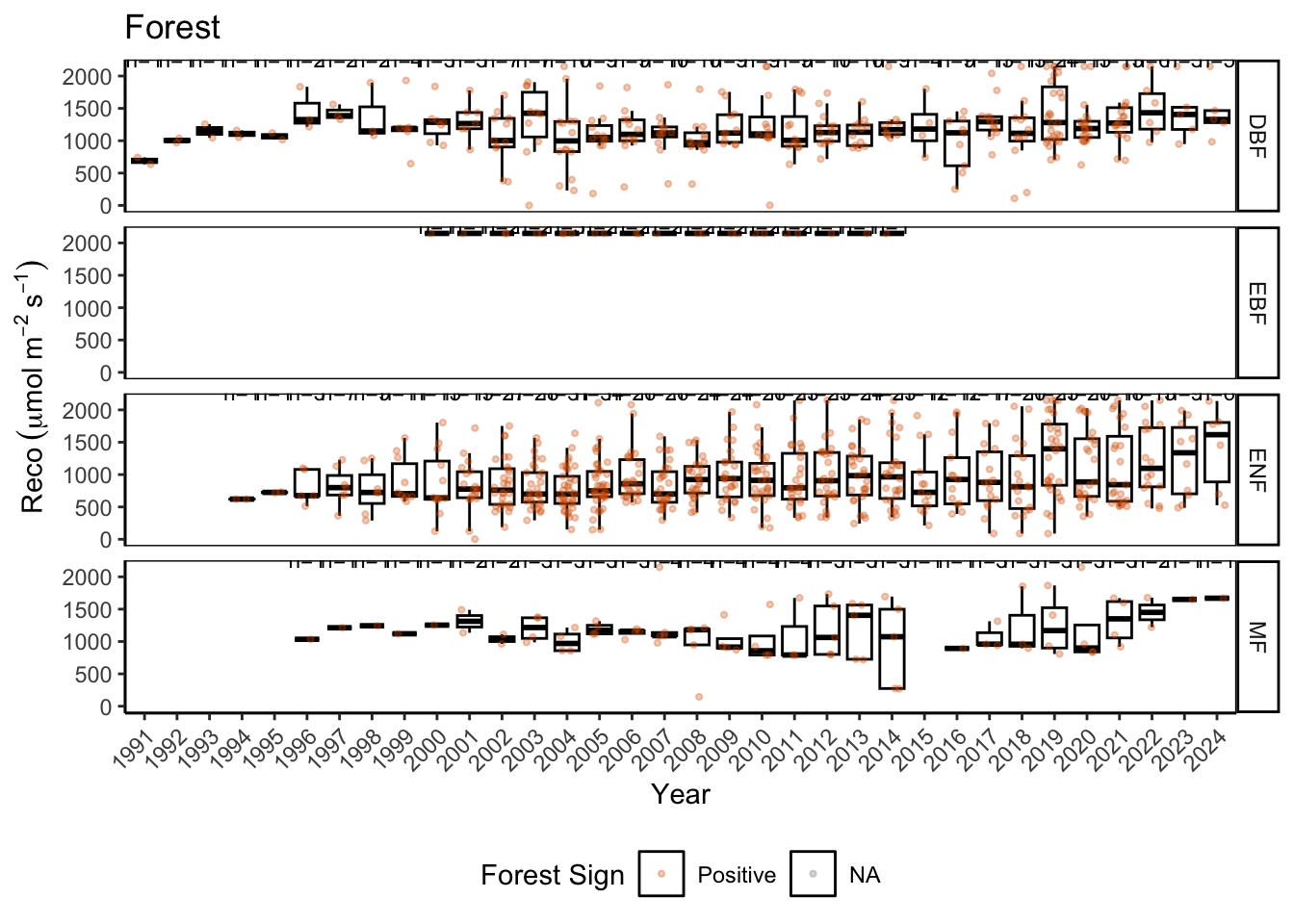

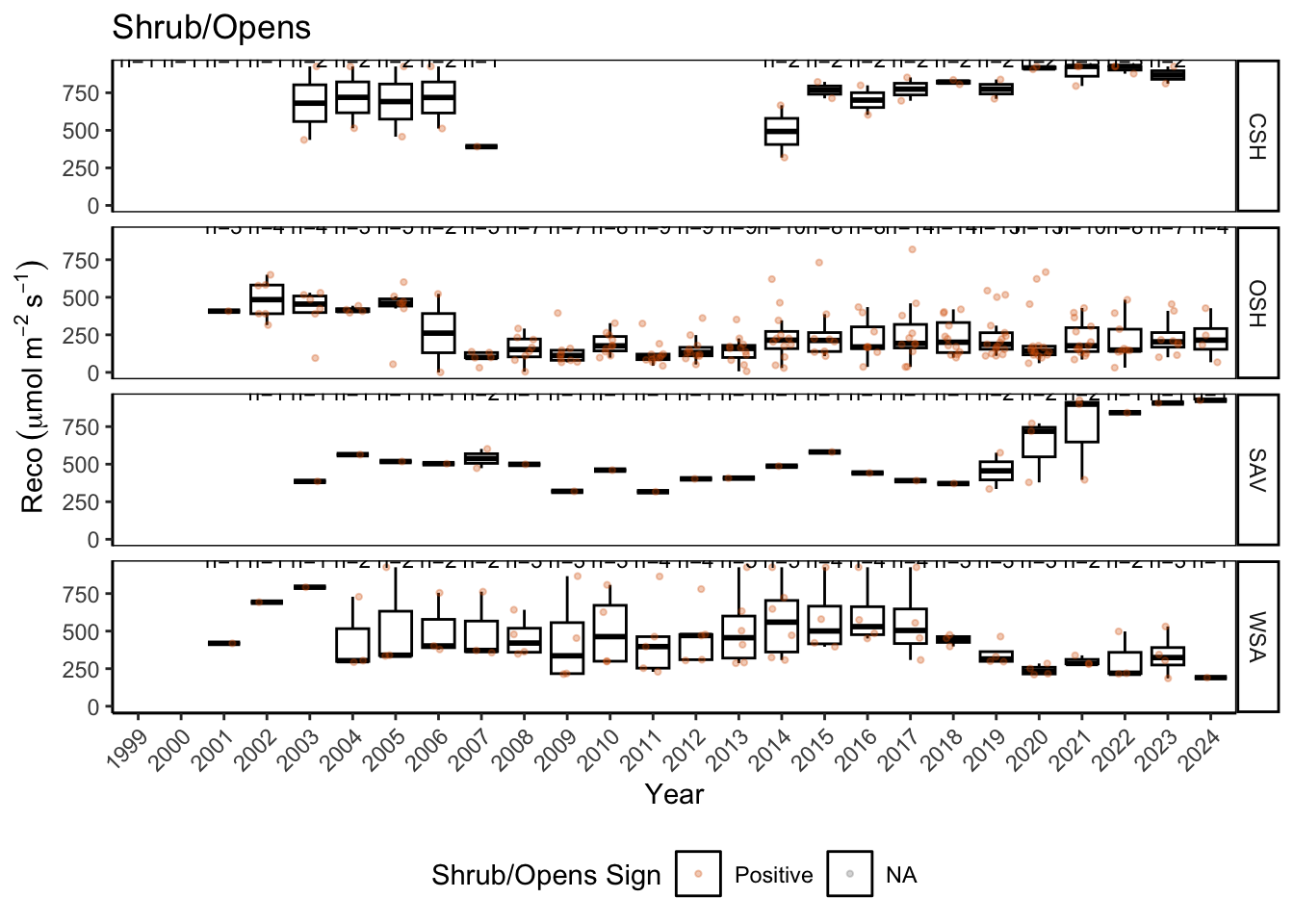

Code
ggplot(
  total_ts_ms,
  aes(
    x = date,
    y = RECO_NT_VUT_REF,
    color = COUNTRY,
    fill = COUNTRY,
    group = SITE_ID
  )
) +
  geom_point(size = 0.1, alpha = 0.1, key_glyph = draw_key_rect) +
  geom_vline(xintercept = yr_start_dates_ms, color = "grey", alpha = 0.5) +
  geom_hline(yintercept = 0, color = "grey", alpha = 0.5, linetype = "dashed") +
  facet_grid(vars(IGBP)) +
  guides(colour = guide_legend(override.aes = list(alpha = 1))) +
  labs(x = "Date", y = lab_reco_daily) +
  theme(panel.background = element_rect(color = "black"))

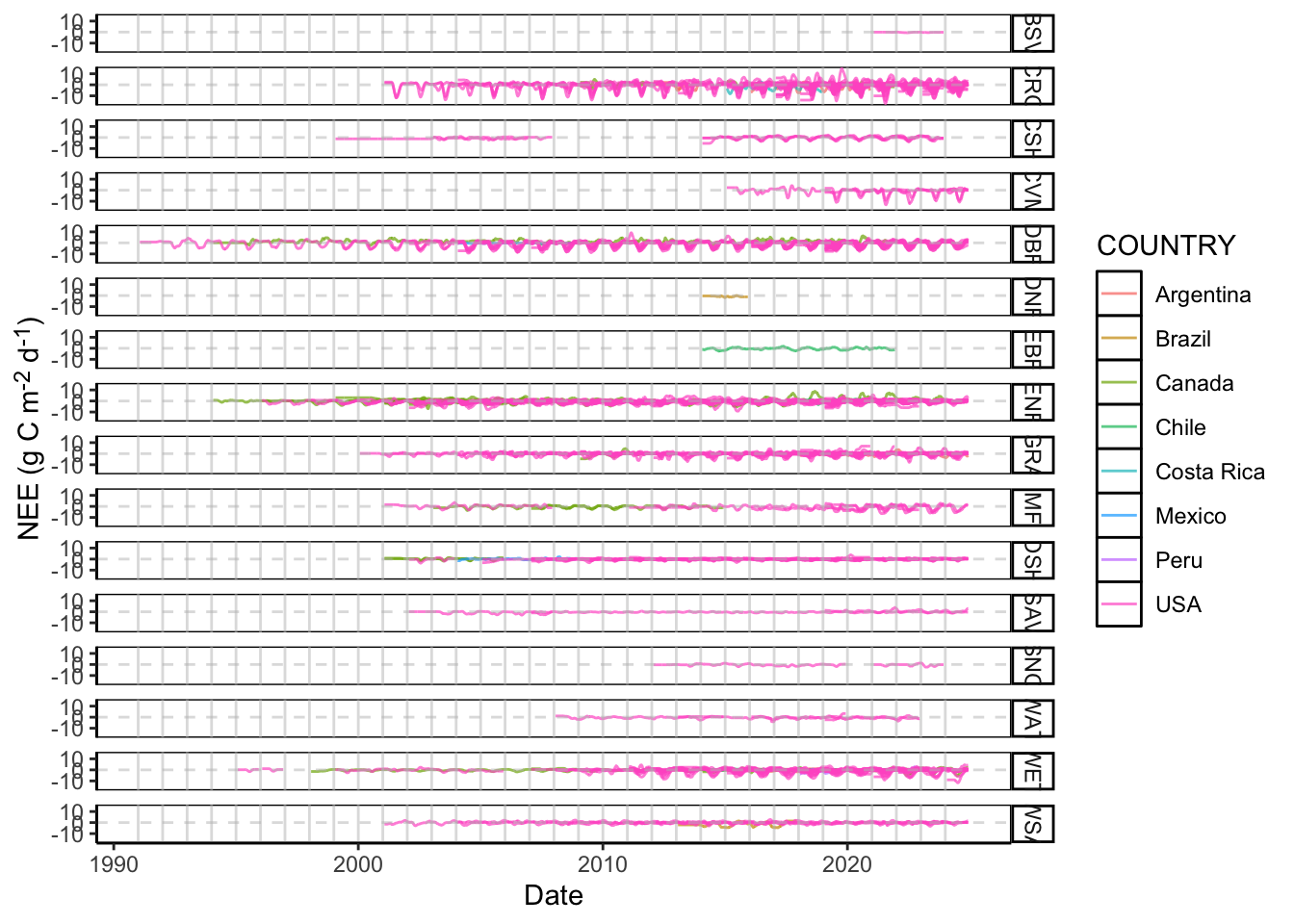

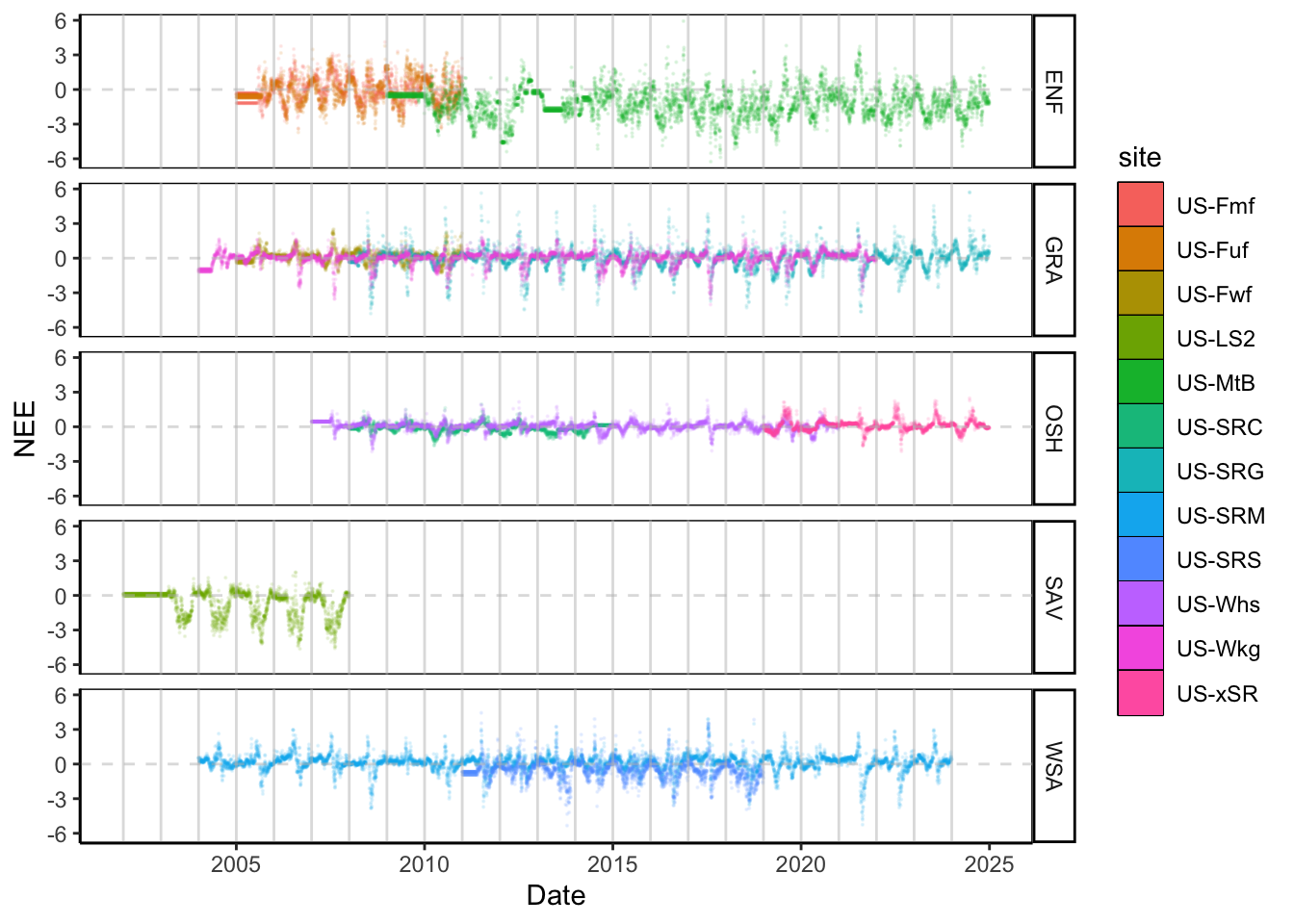

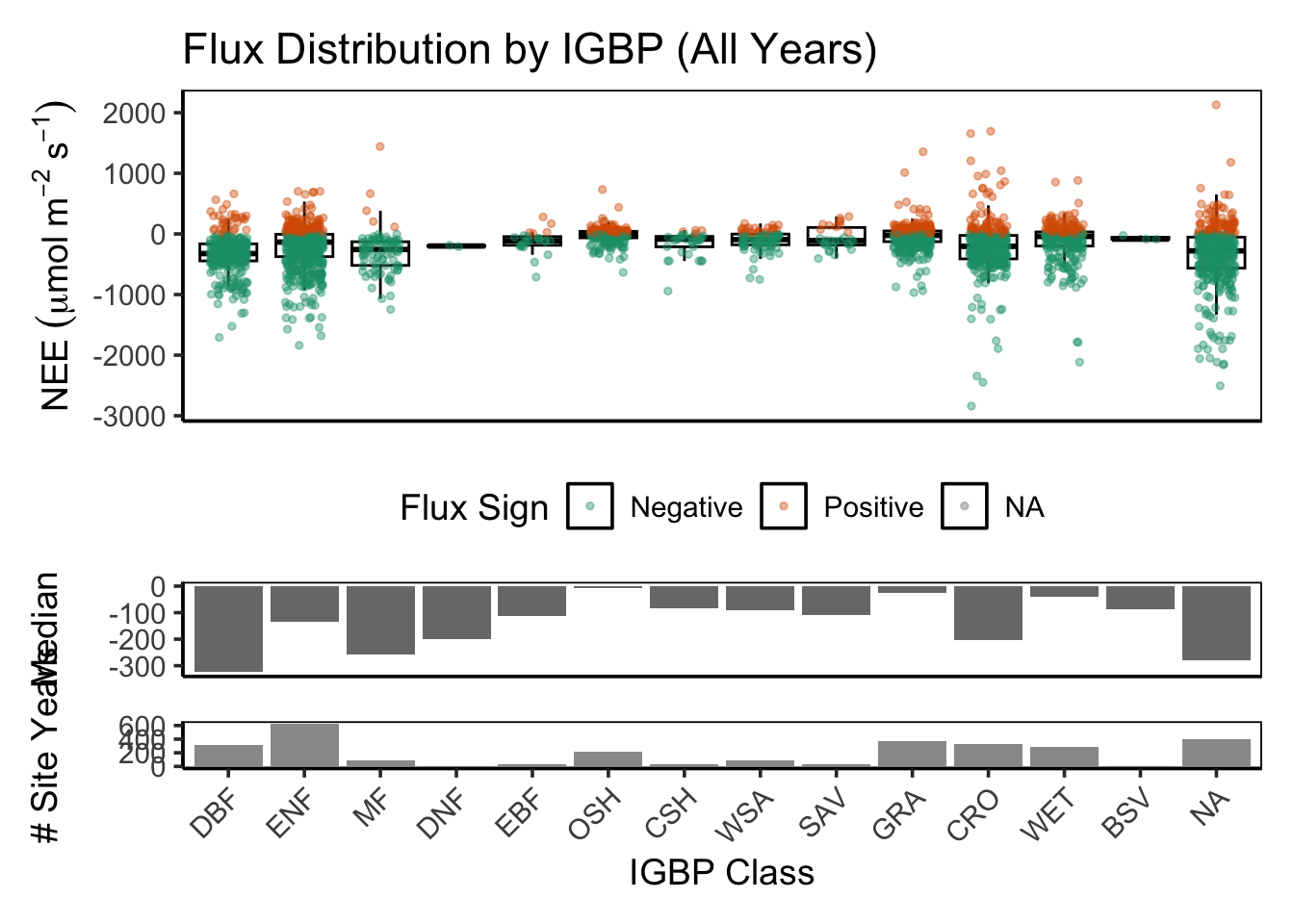

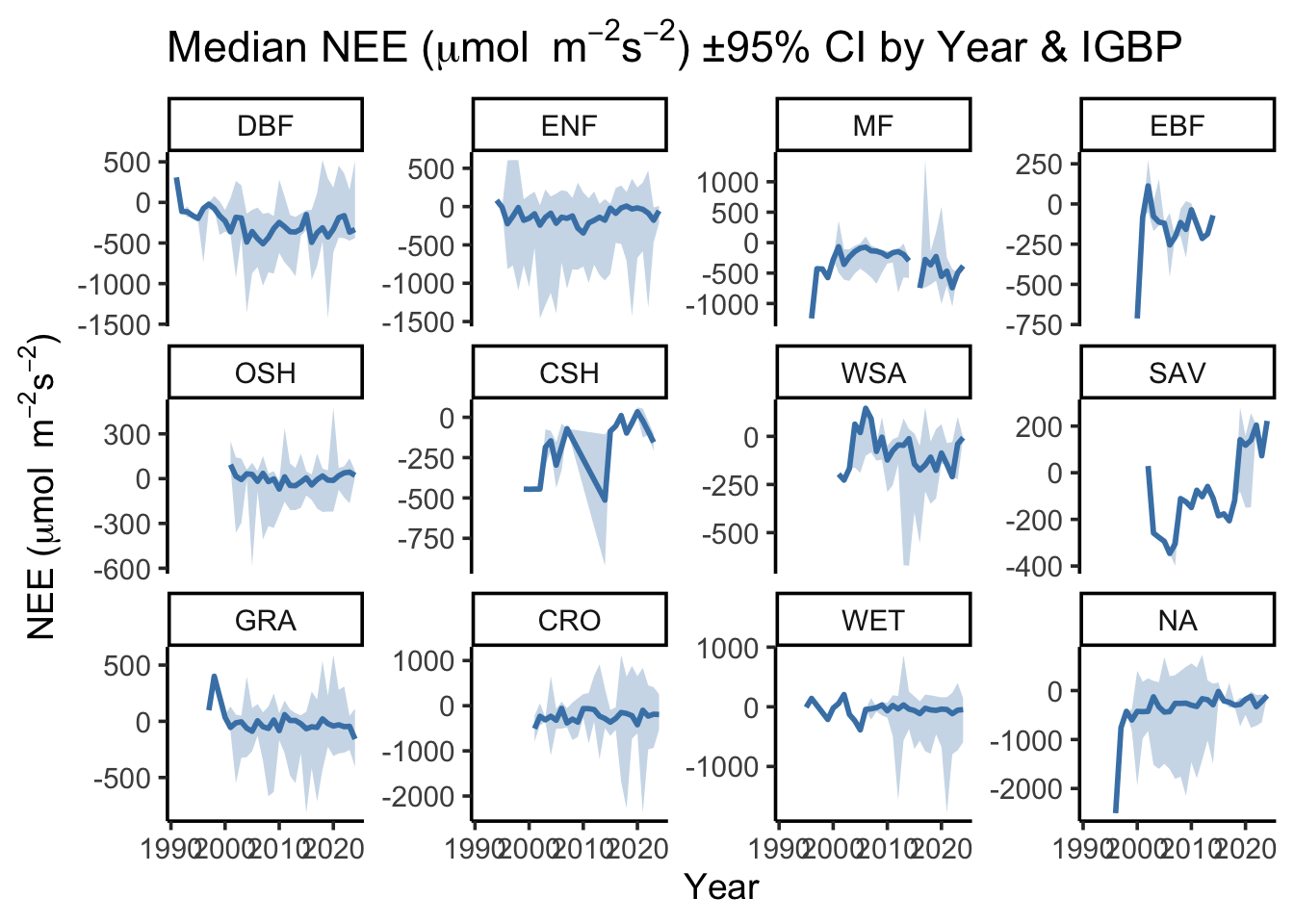

Code
ggplot(
  total_ts_ms,
  aes(
    x = date,
    y = NEE_VUT_REF,
    color = COUNTRY,
    fill = COUNTRY,
    group = SITE_ID
  )
) +
  geom_point(size = 0.1, alpha = 0.1, key_glyph = draw_key_rect) +
  geom_vline(xintercept = yr_start_dates_ms, color = "grey", alpha = 0.5) +
  geom_hline(yintercept = 0, color = "grey", alpha = 0.5, linetype = "dashed") +
  facet_grid(vars(IGBP)) +
  guides(colour = guide_legend(override.aes = list(alpha = 1))) +
  labs(x = "Date", y = lab_nee_daily) +
  theme(panel.background = element_rect(color = "black"))

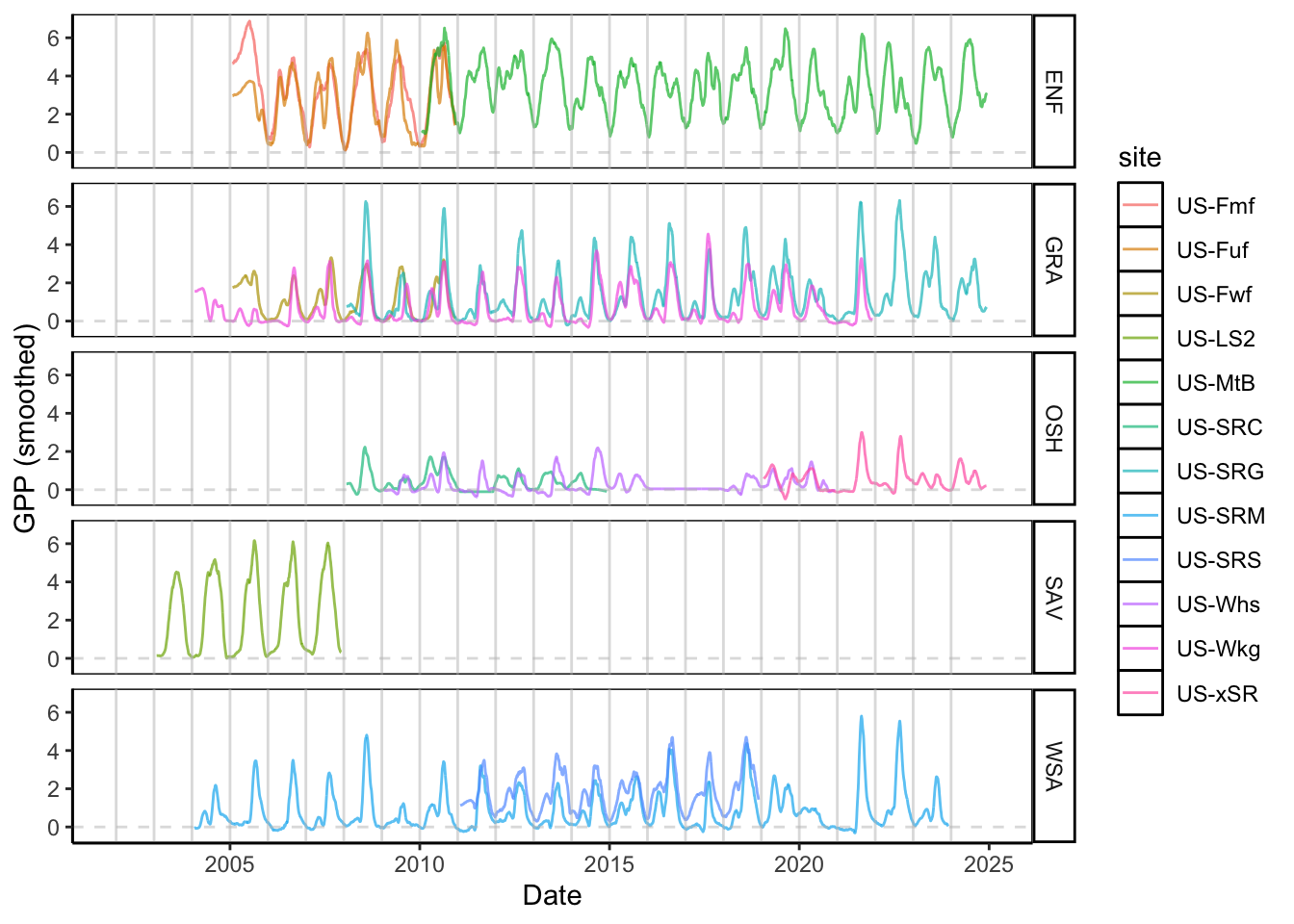

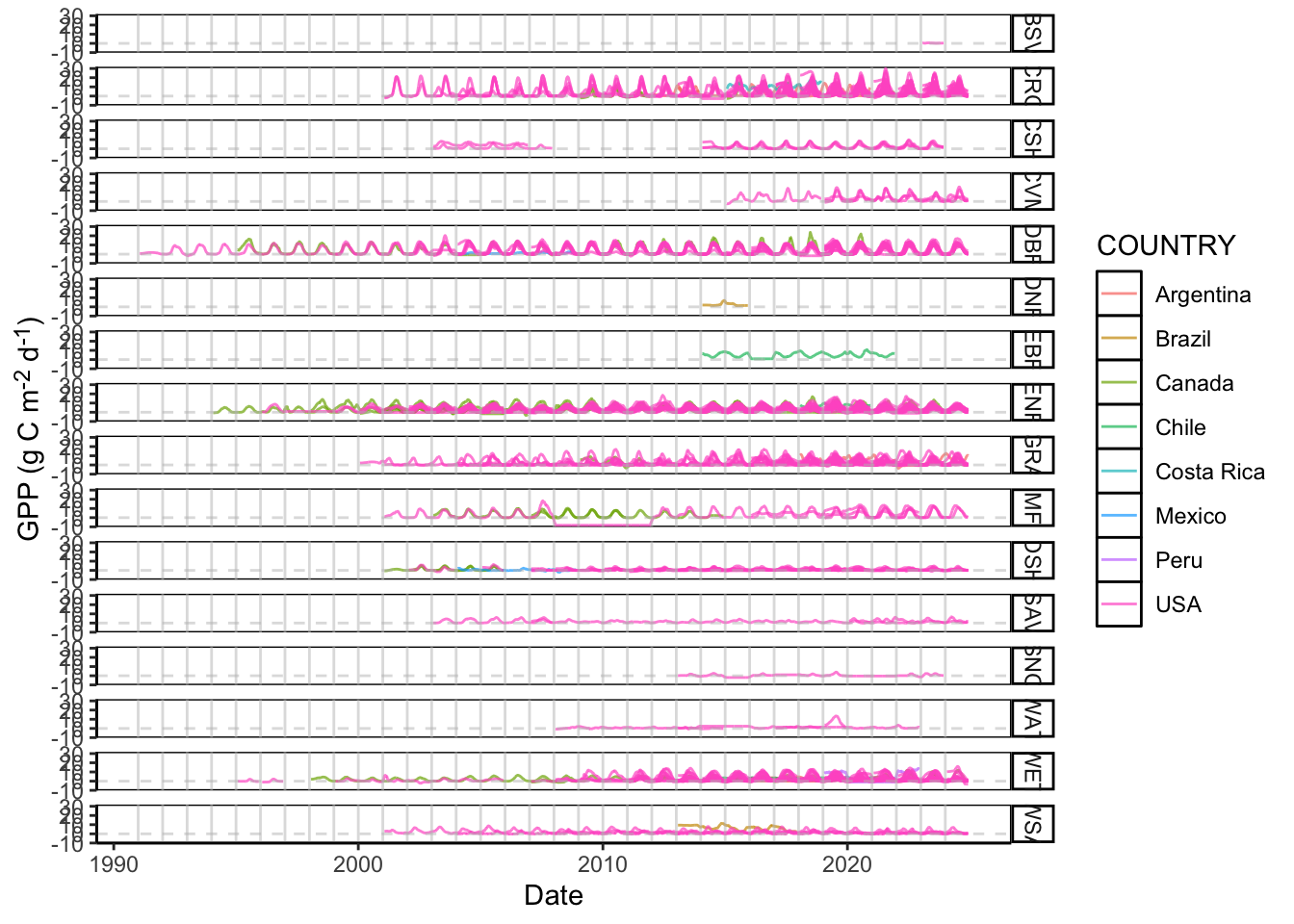

Show entire time series of GPP for all sites, with daily values smoothed out as a line.

Code
ggplot(
  total_ts_ms,
  aes(x = date, y = running_mean_gpp, color = COUNTRY, group = SITE_ID)
) +
  geom_line(lwd = 0.5, alpha = 0.7) +
  geom_vline(xintercept = yr_start_dates_ms, color = "grey", alpha = 0.5) +
  geom_hline(yintercept = 0, color = "grey", alpha = 0.5, linetype = "dashed") +
  facet_grid(vars(IGBP)) +
  labs(x = "Date", y = lab_gpp_daily) +
  theme(panel.background = element_rect(color = "black"))

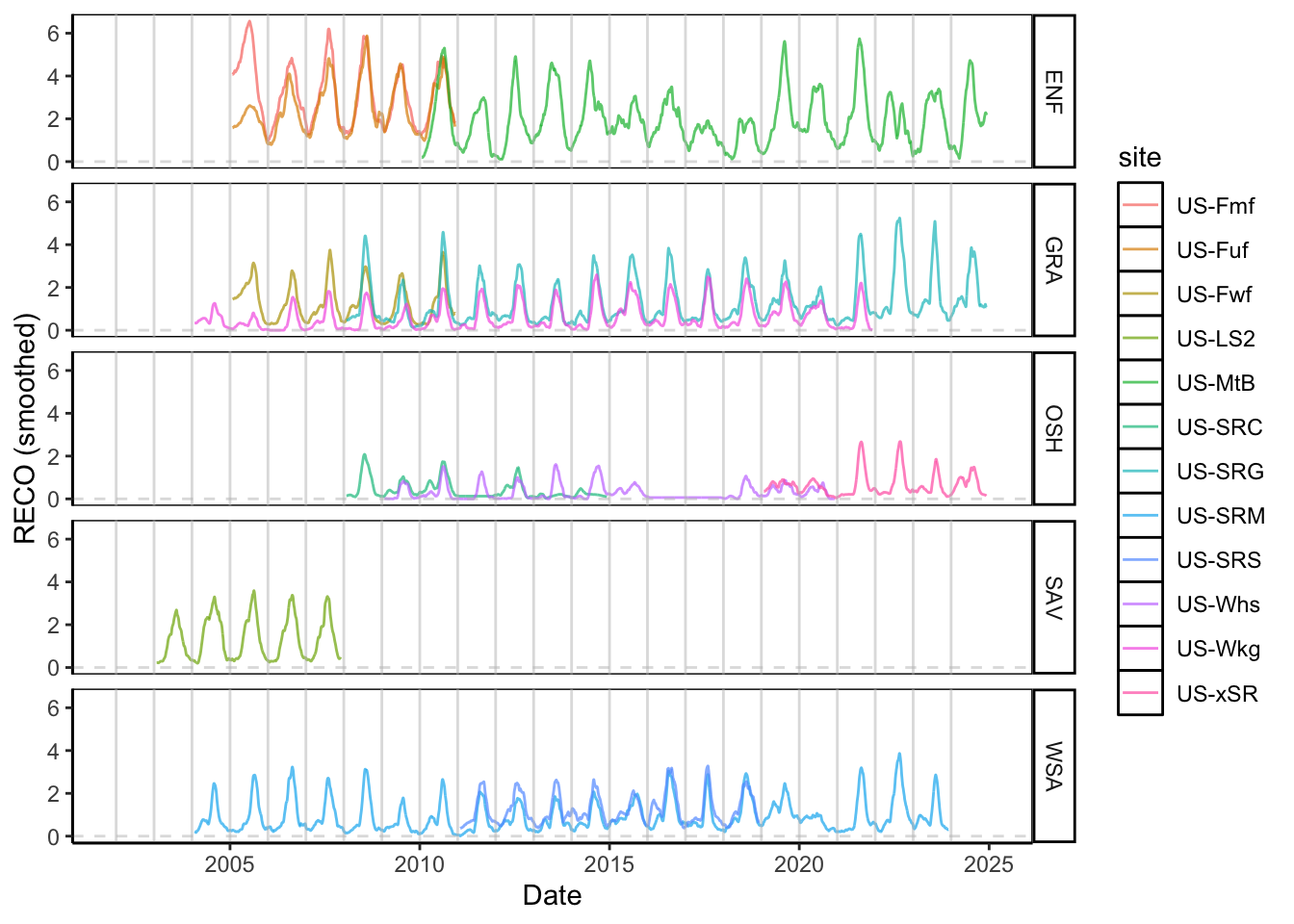

Code
ggplot(
  total_ts_ms,
  aes(x = date, y = running_mean_reco, color = COUNTRY, group = SITE_ID)
) +
  geom_line(lwd = 0.5, alpha = 0.7) +
  geom_vline(xintercept = yr_start_dates_ms, color = "grey", alpha = 0.5) +
  geom_hline(yintercept = 0, color = "grey", alpha = 0.5, linetype = "dashed") +
  facet_grid(vars(IGBP)) +
  labs(x = "Date", y = lab_reco_daily) +
  theme(panel.background = element_rect(color = "black"))

Code
ggplot(
  total_ts_ms,
  aes(x = date, y = running_mean_nee, color = COUNTRY, group = SITE_ID)
) +
  geom_line(lwd = 0.5, alpha = 0.7) +
  geom_vline(xintercept = yr_start_dates_ms, color = "grey", alpha = 0.5) +
  geom_hline(yintercept = 0, color = "grey", alpha = 0.5, linetype = "dashed") +
  facet_grid(vars(IGBP)) +
  labs(x = "Date", y = lab_nee_daily) +
  theme(panel.background = element_rect(color = "black"))

Average annual time series (single site)

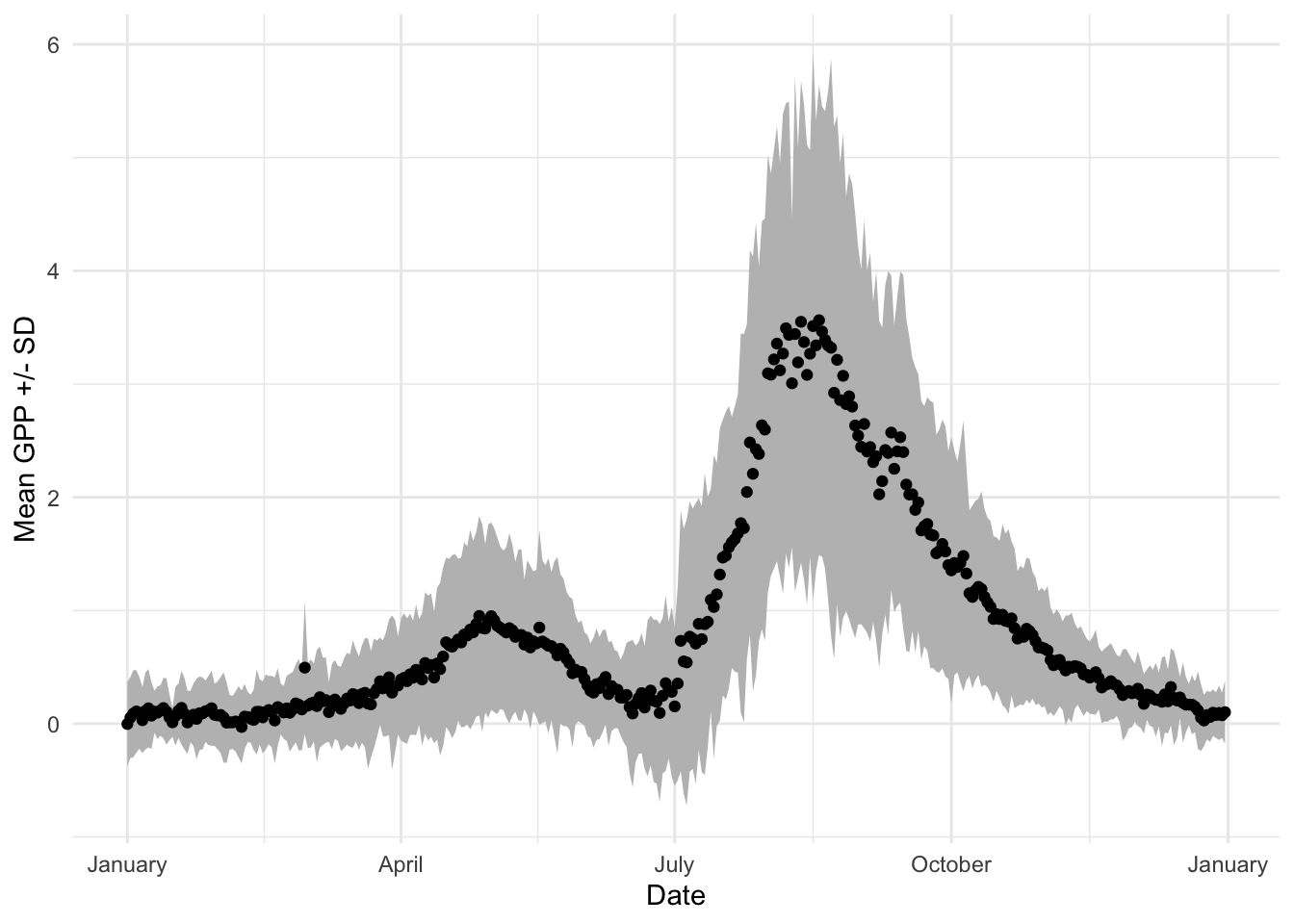

Show average daily values (with standard deviations)

Code
# get averages by date across years
gpp_by_date <- fluxnet_daily %>%
  filter(SITE_ID == first(SITE_ID)) |>
  mutate(date_minus_year = format(date, '%m-%d')) %>%
  group_by(date_minus_year) %>%
  summarize(gpp_mean = mean(GPP_NT_VUT_REF), gpp_sd = sd(GPP_NT_VUT_REF)) %>%
  mutate(date_fake_year = ymd(paste0("2024-", date_minus_year)))

ggplot(gpp_by_date, aes(x = date_fake_year, y = gpp_mean)) +
  geom_ribbon(
    aes(ymax = gpp_mean + gpp_sd, ymin = gpp_mean - gpp_sd),
    fill = "grey"
  ) +
  geom_point() +
  labs(
    x = "Date",
    # y = "Mean GPP +/- SD"
    y = lab_gpp_daily
  ) +
  # theme_minimal() +
  scale_x_date(date_labels = "%B")

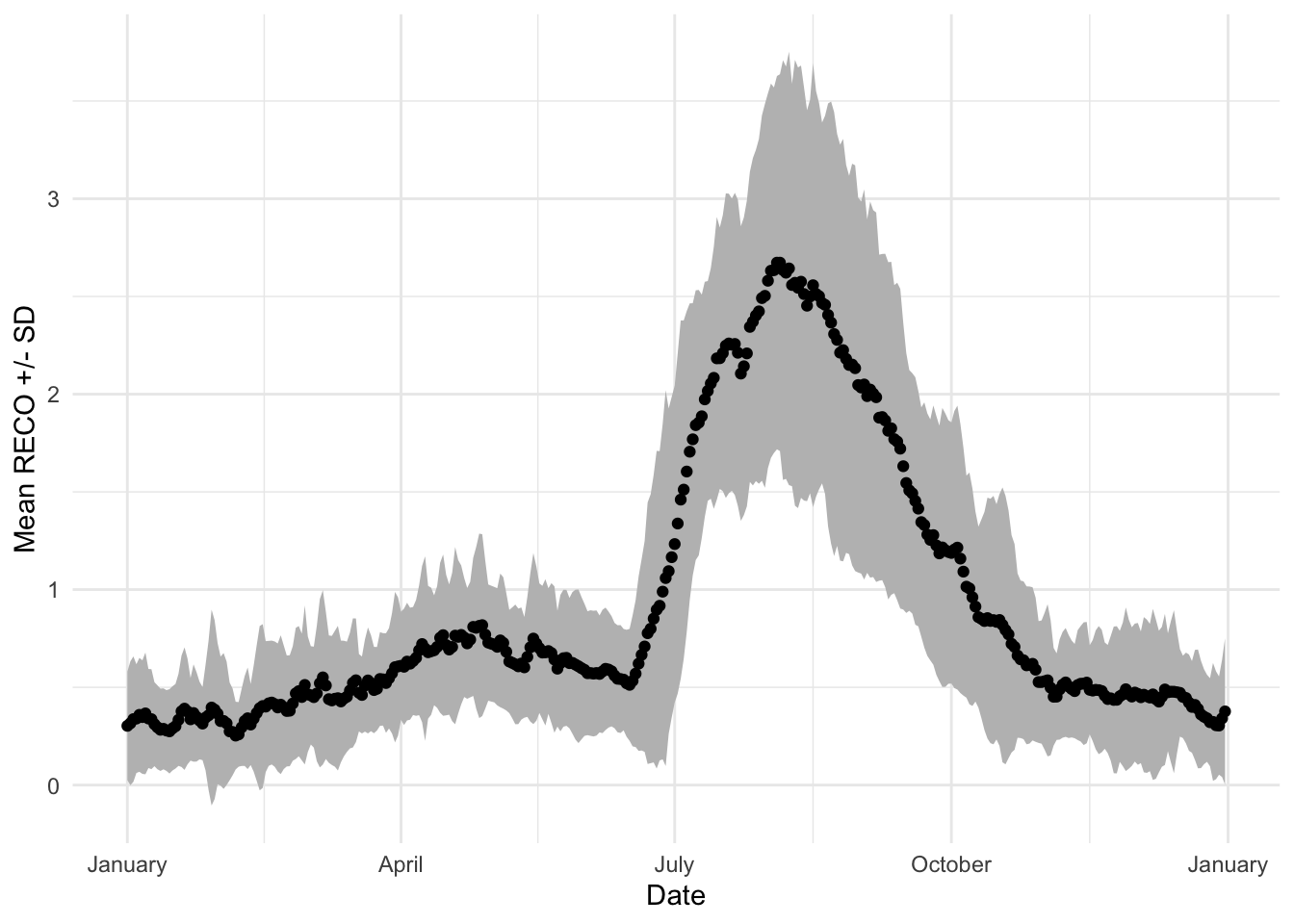

Code
reco_by_date <- fluxnet_daily %>%
  filter(SITE_ID == first(SITE_ID)) |>
  mutate(date_minus_year = format(date, '%m-%d')) %>%
  group_by(date_minus_year) %>%
  summarize(
    reco_mean = mean(RECO_NT_VUT_REF),
    reco_sd = sd(RECO_NT_VUT_REF)
  ) %>%
  mutate(date_fake_year = ymd(paste0("2024-", date_minus_year)))

ggplot(reco_by_date, aes(x = date_fake_year, y = reco_mean)) +
  geom_ribbon(
    aes(ymax = reco_mean + reco_sd, ymin = reco_mean - reco_sd),
    fill = "grey"
  ) +
  geom_point() +
  labs(
    x = "Date",
    # y = "Mean RECO +/- SD"
    y = lab_reco_daily
  ) +
  # theme_minimal() +
  scale_x_date(date_labels = "%B")

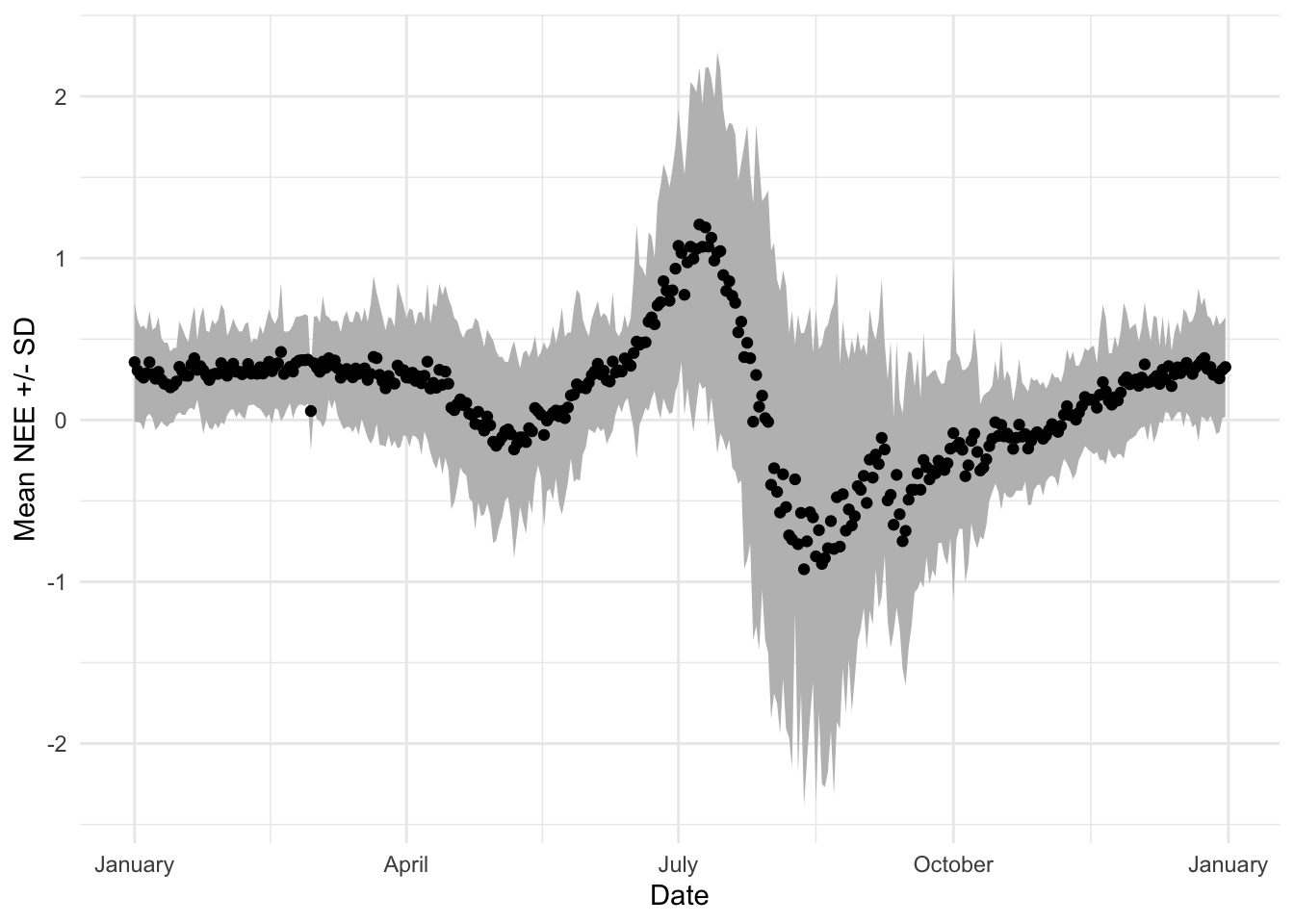

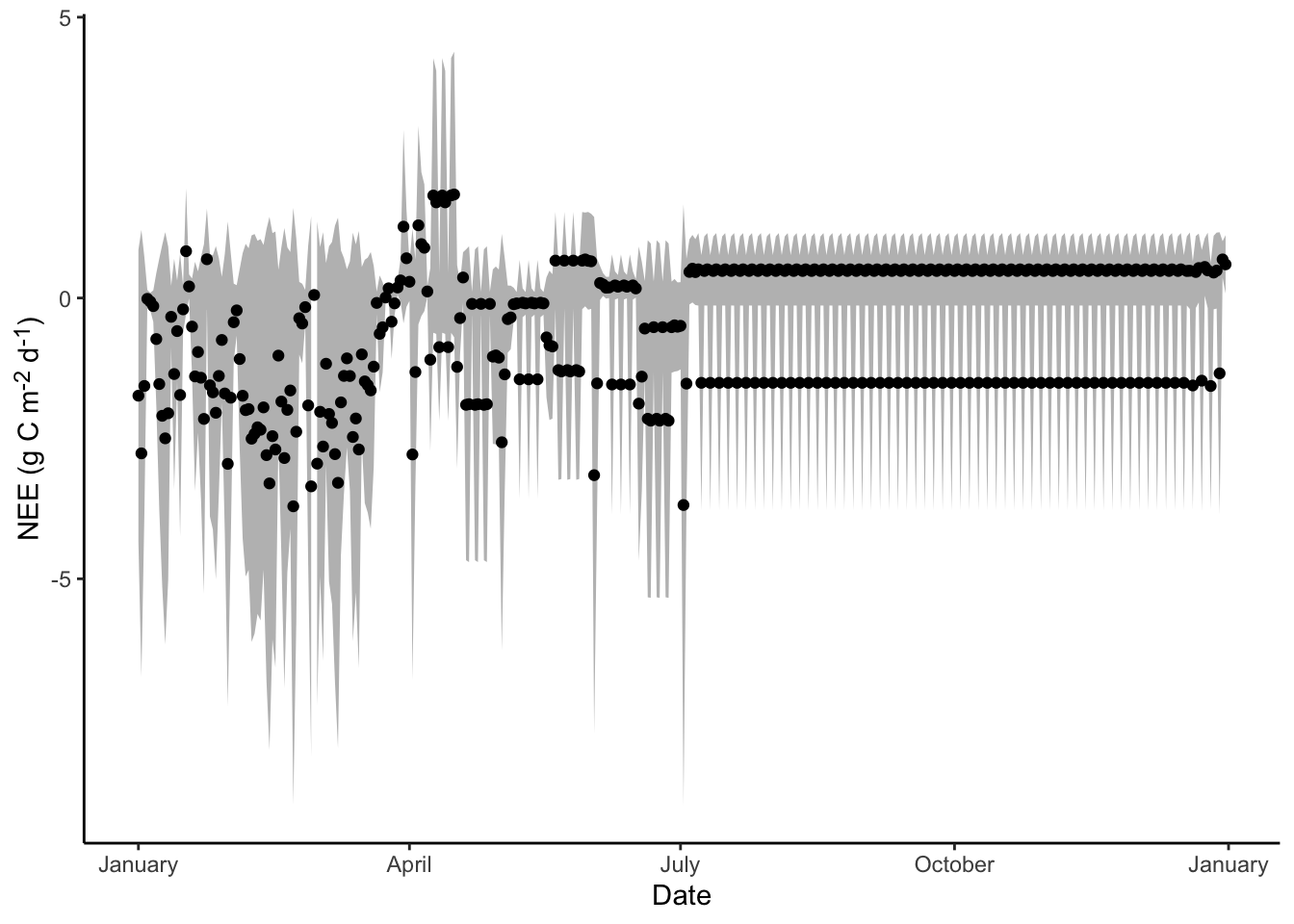

Code
nee_by_date <- fluxnet_daily %>%
  filter(SITE_ID == first(SITE_ID)) |>
  mutate(date_minus_year = format(date, '%m-%d')) %>%
  group_by(date_minus_year) %>%
  summarize(nee_mean = mean(NEE_VUT_REF), nee_sd = sd(NEE_VUT_REF)) %>%
  mutate(date_fake_year = ymd(paste0("2024-", date_minus_year)))

ggplot(nee_by_date, aes(x = date_fake_year, y = nee_mean)) +
  geom_ribbon(
    aes(ymax = nee_mean + nee_sd, ymin = nee_mean - nee_sd),
    fill = "grey"
  ) +
  geom_point() +
  labs(
    x = "Date",
    # y = "Mean NEE +/- SD"
    y = lab_nee_daily
  ) +
  # theme_minimal() +
  scale_x_date(date_labels = "%B")

Average annual time series (multiple sites)

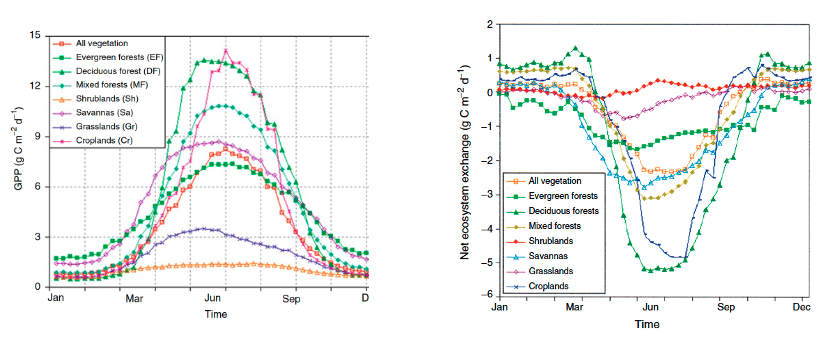

Textbook figures:

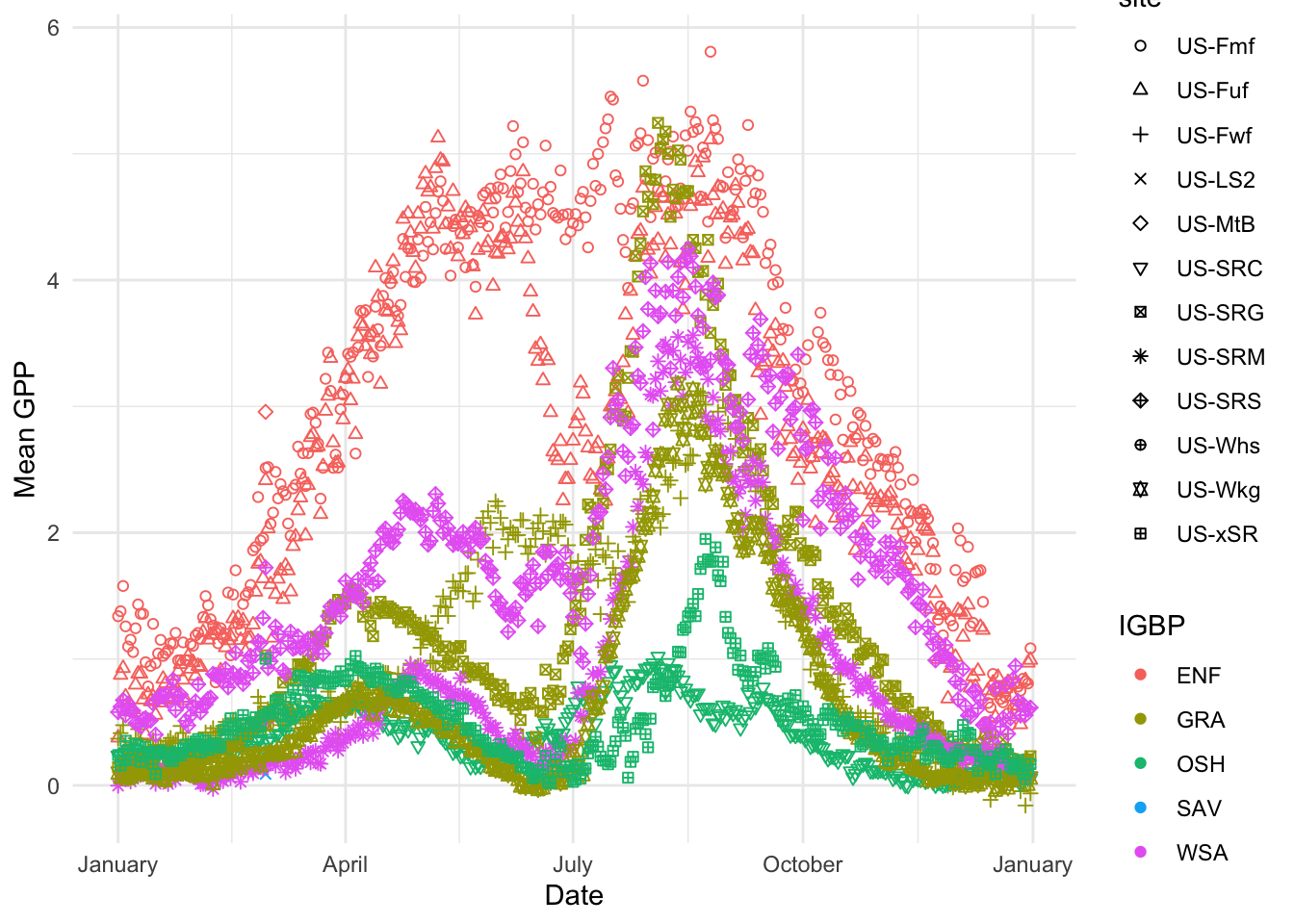

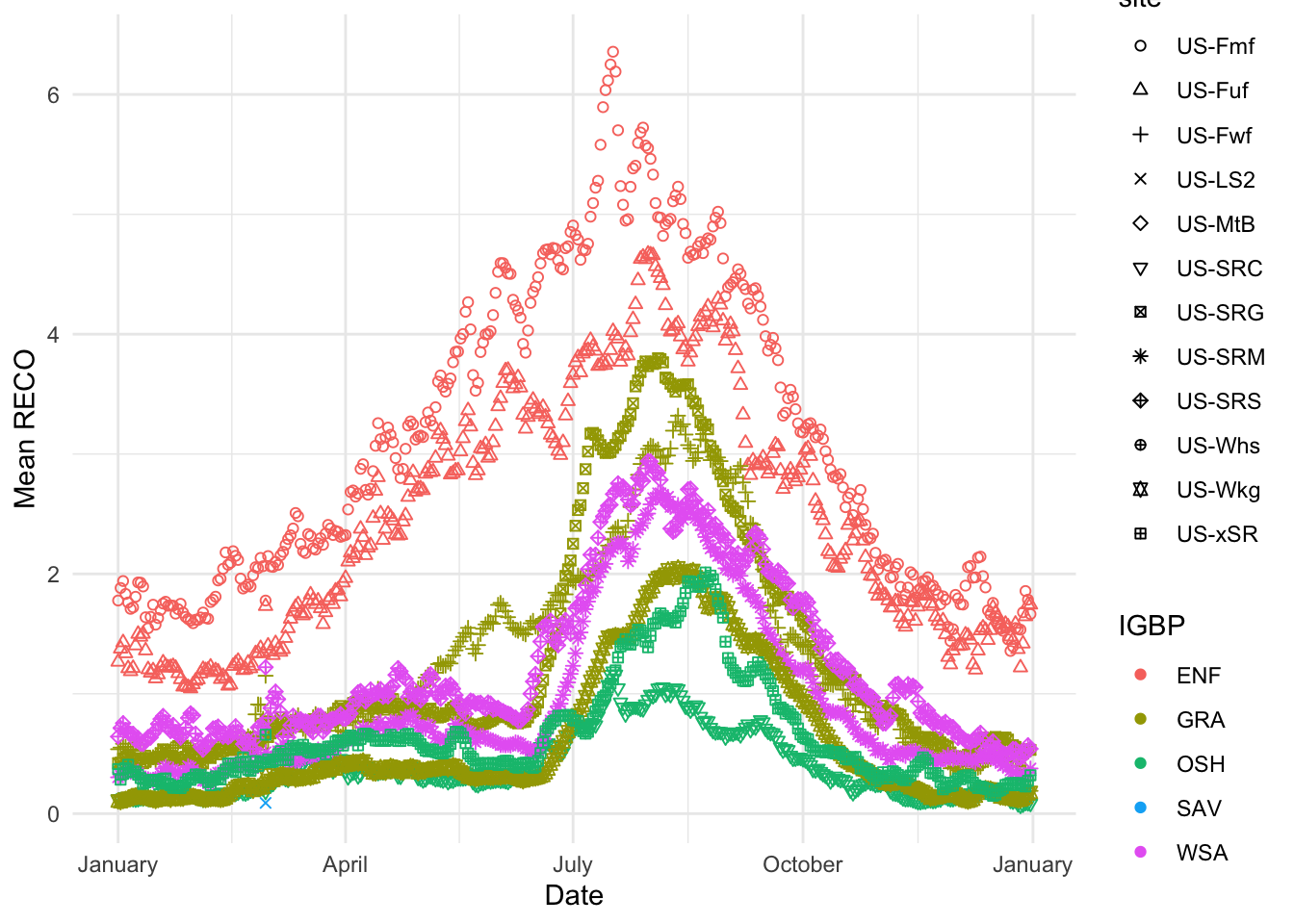

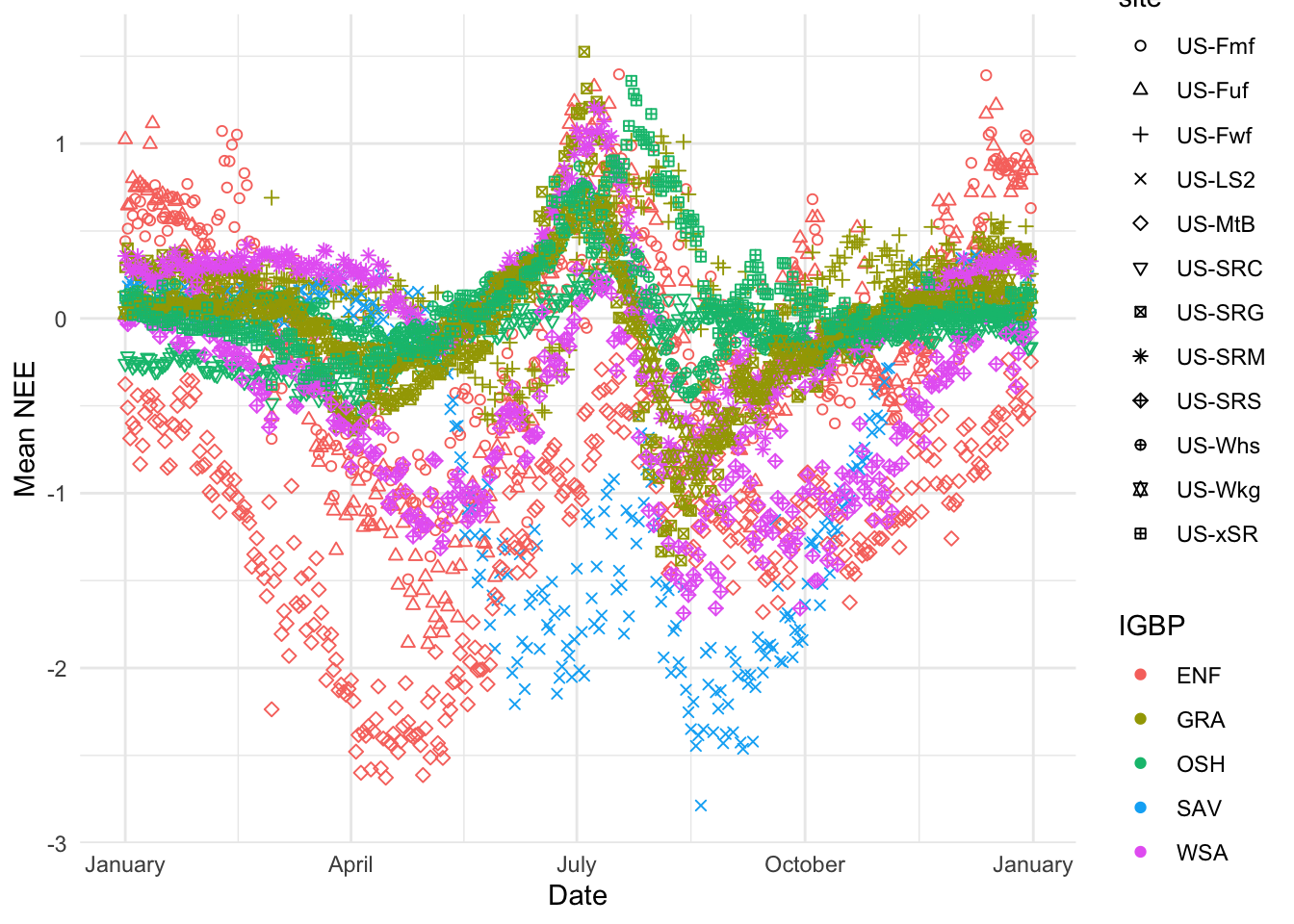

Show average daily values by site (symbols) and vegetation type (colors)

Code
gpp_by_date_sites <- fluxnet_daily %>%
  mutate(date_minus_year = format(date, '%m-%d')) %>%
  group_by(SITE_ID, COUNTRY, IGBP, date_minus_year) %>%
  summarize(
    gpp_mean = mean(GPP_NT_VUT_REF),
    gpp_sd = sd(GPP_NT_VUT_REF),
    reco_mean = mean(RECO_NT_VUT_REF),
    reco_sd = sd(RECO_NT_VUT_REF),
    nee_mean = mean(NEE_VUT_REF),
    nee_sd = sd(NEE_VUT_REF)
  ) %>%
  mutate(date_fake_year = ymd(paste0("2024-", date_minus_year)))

gpp_by_date_sites |>
  group_by(COUNTRY) |>
  #some countries have no data
  filter(!all(is.na(gpp_mean))) |>
  ggplot(aes(x = date_fake_year, y = gpp_mean)) +
  facet_wrap(vars(IGBP)) +
  geom_point(aes(color = COUNTRY)) +
  scale_x_date(date_labels = "%B") +
  labs(x = "Date", y = lab_gpp_daily) +
  theme_minimal() +
  theme(axis.title = element_markdown())

Code
gpp_by_date_sites |>
  group_by(COUNTRY) |>
  filter(!all(is.na(reco_mean))) |>
  ggplot(aes(x = date_fake_year, y = reco_mean)) +
  facet_wrap(vars(IGBP)) +
  geom_point(aes(color = COUNTRY)) +
  labs(x = "Date", y = lab_reco_daily) +
  scale_x_date(date_labels = "%B") +
  theme_minimal() +
  theme(axis.title = element_markdown())

Code
gpp_by_date_sites |>
  group_by(COUNTRY) |>
  filter(!all(is.na(nee_mean))) |>
  ggplot(aes(x = date_fake_year, y = nee_mean)) +
  facet_wrap(vars(IGBP)) +
  geom_point(aes(color = COUNTRY)) +
  scale_x_date(date_labels = "%B") +
  labs(x = "Date", y = lab_nee_daily) +
  theme_minimal() +
  theme(axis.title = element_markdown())

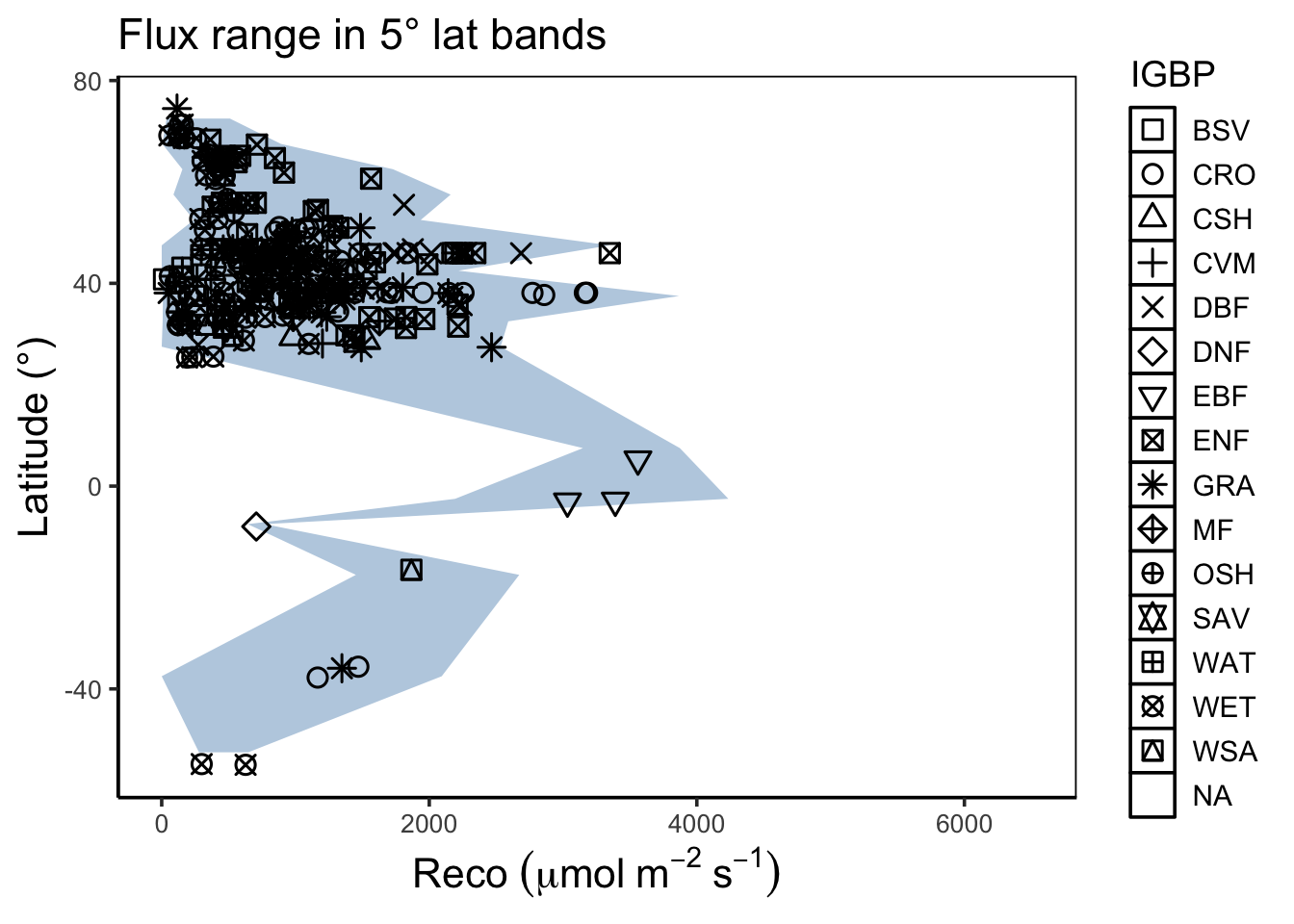

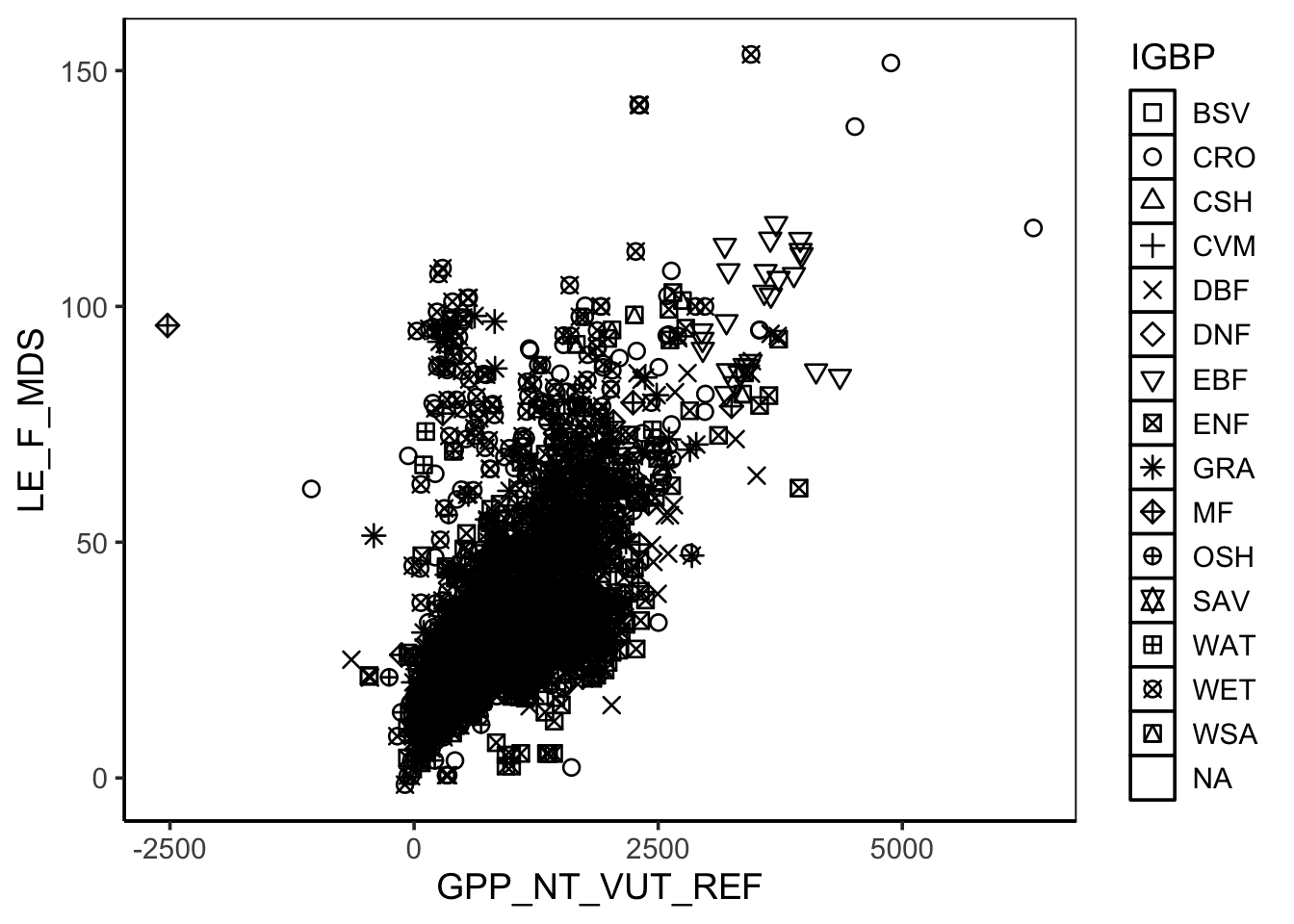

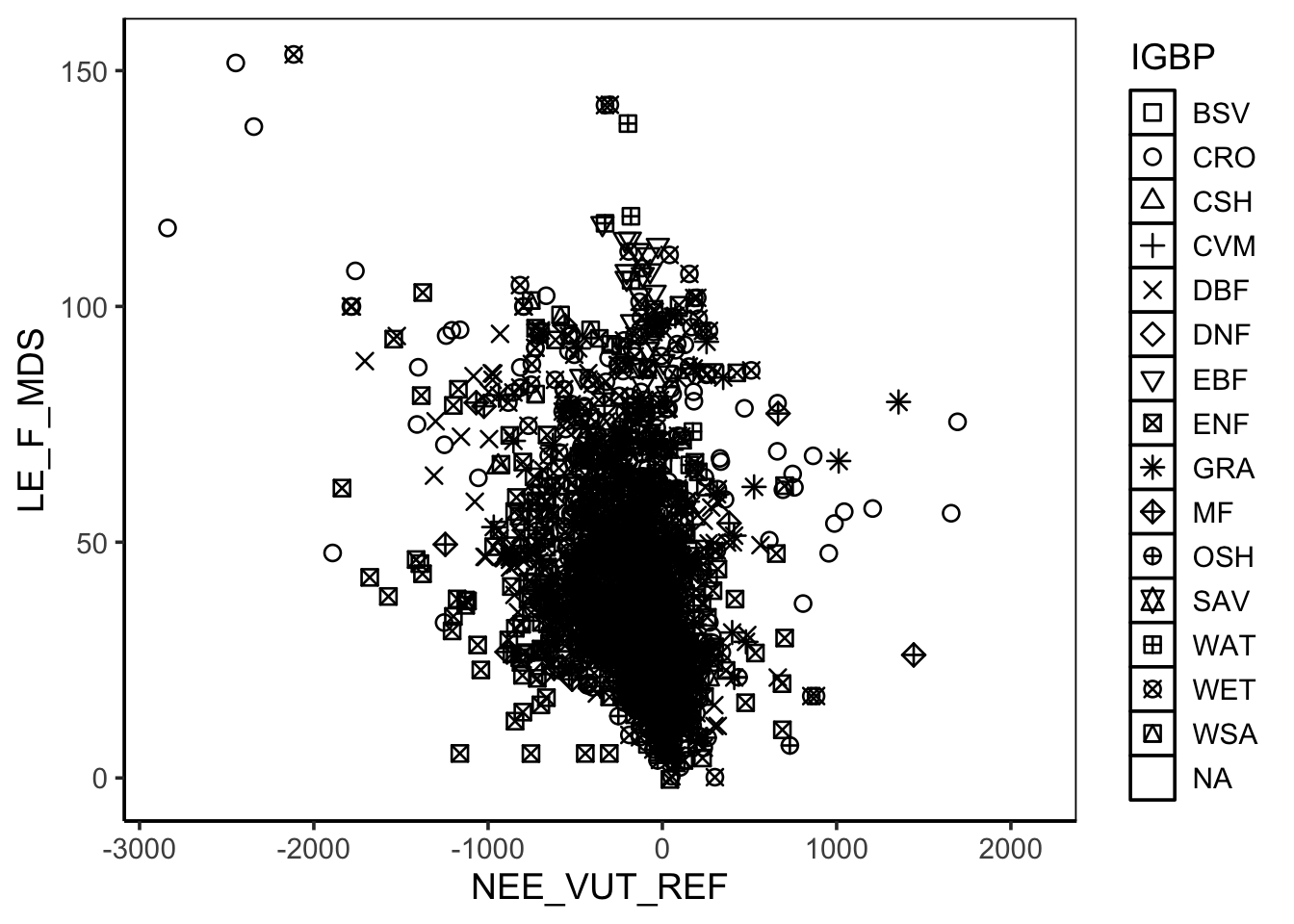

Comparison to meteorological variables (multiple sites)

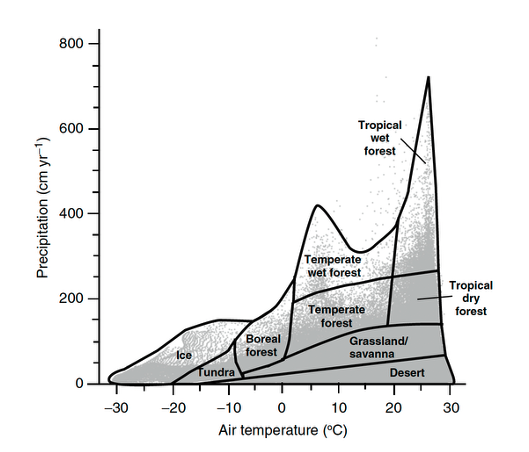

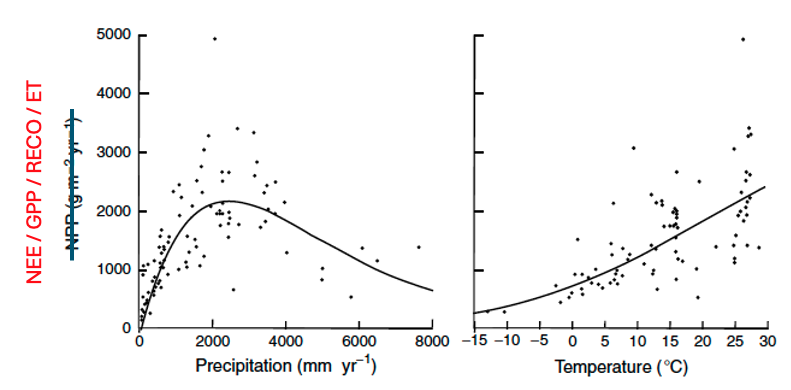

Textbook figure (for NEE):

Meteorological variables (bold indicates variable in figures):

  1. P: Precipitation - not in annual datasets
  2. P_ERA: Precipitation, downscaled from ERA, linearly regressed using measured only site data
  3. P_F: Precipitation consolidated from P and P_ERA
  4. TA_F_MDS: Air temperature, gapfilled using MDS method
  5. TA_ERA: Air temperature, downscaled from ERA, linearly regressed using measured only site data
  6. TA_F: Air temperature, consolidated from TA_F_MDS and TA_ERA

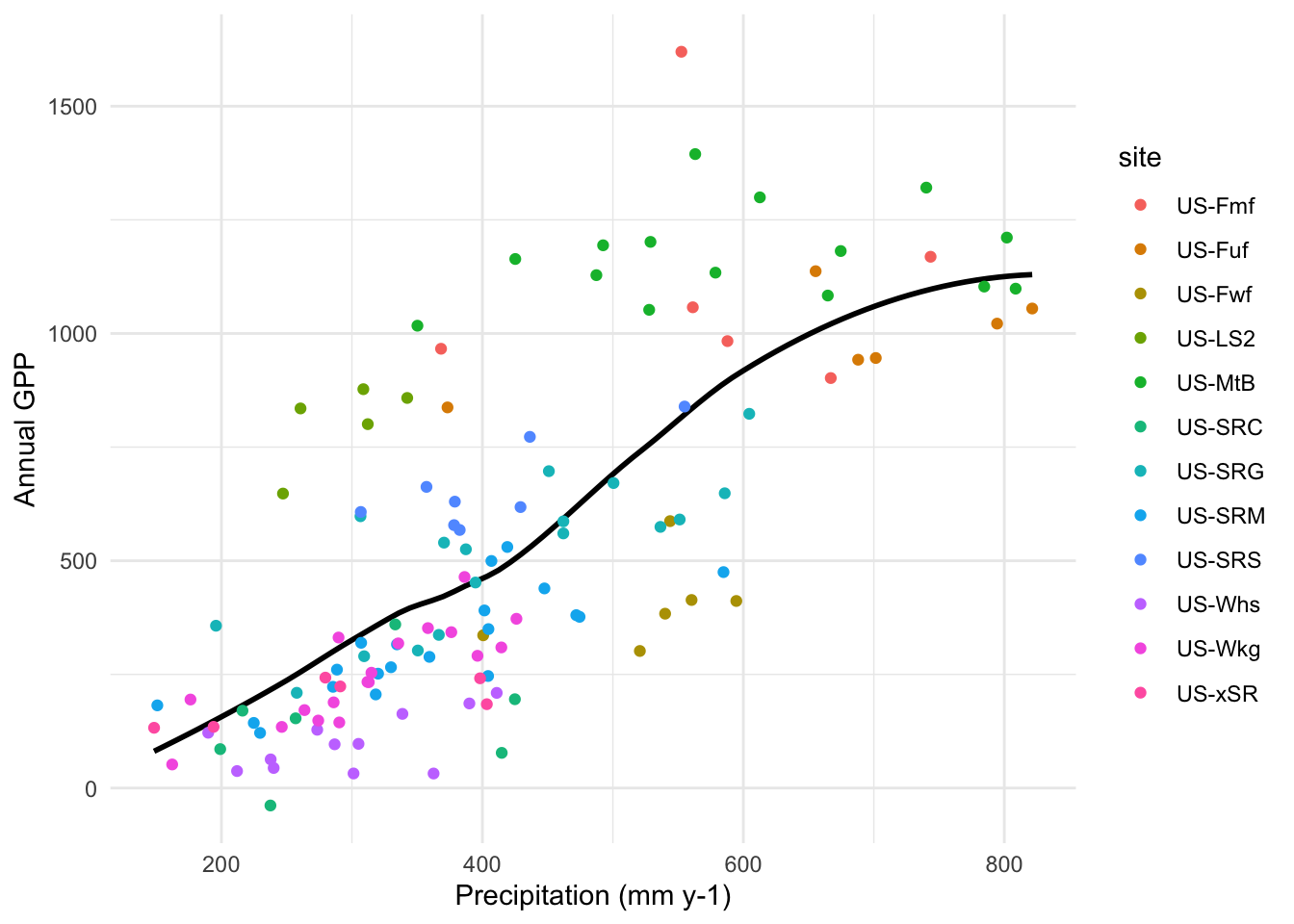

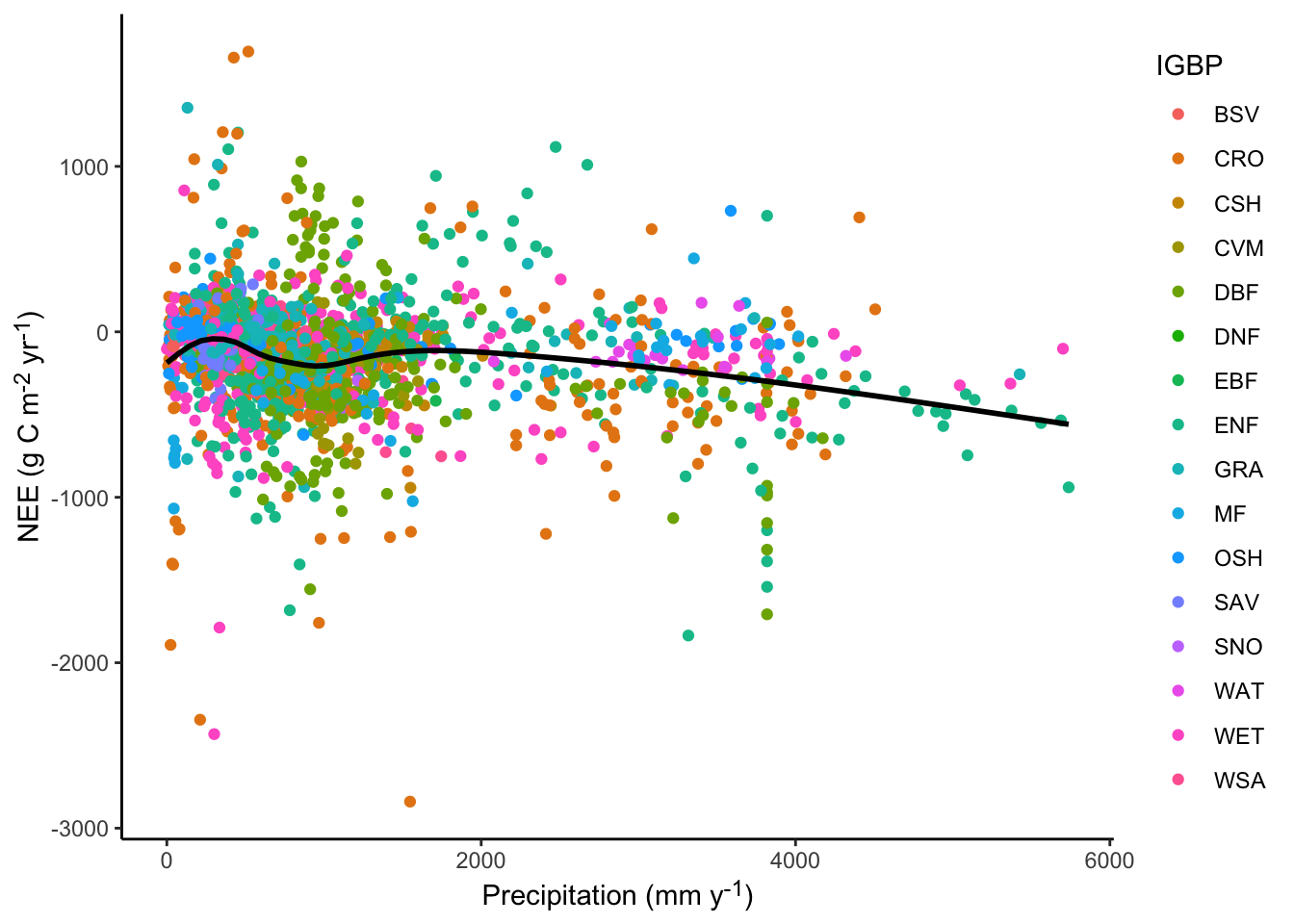

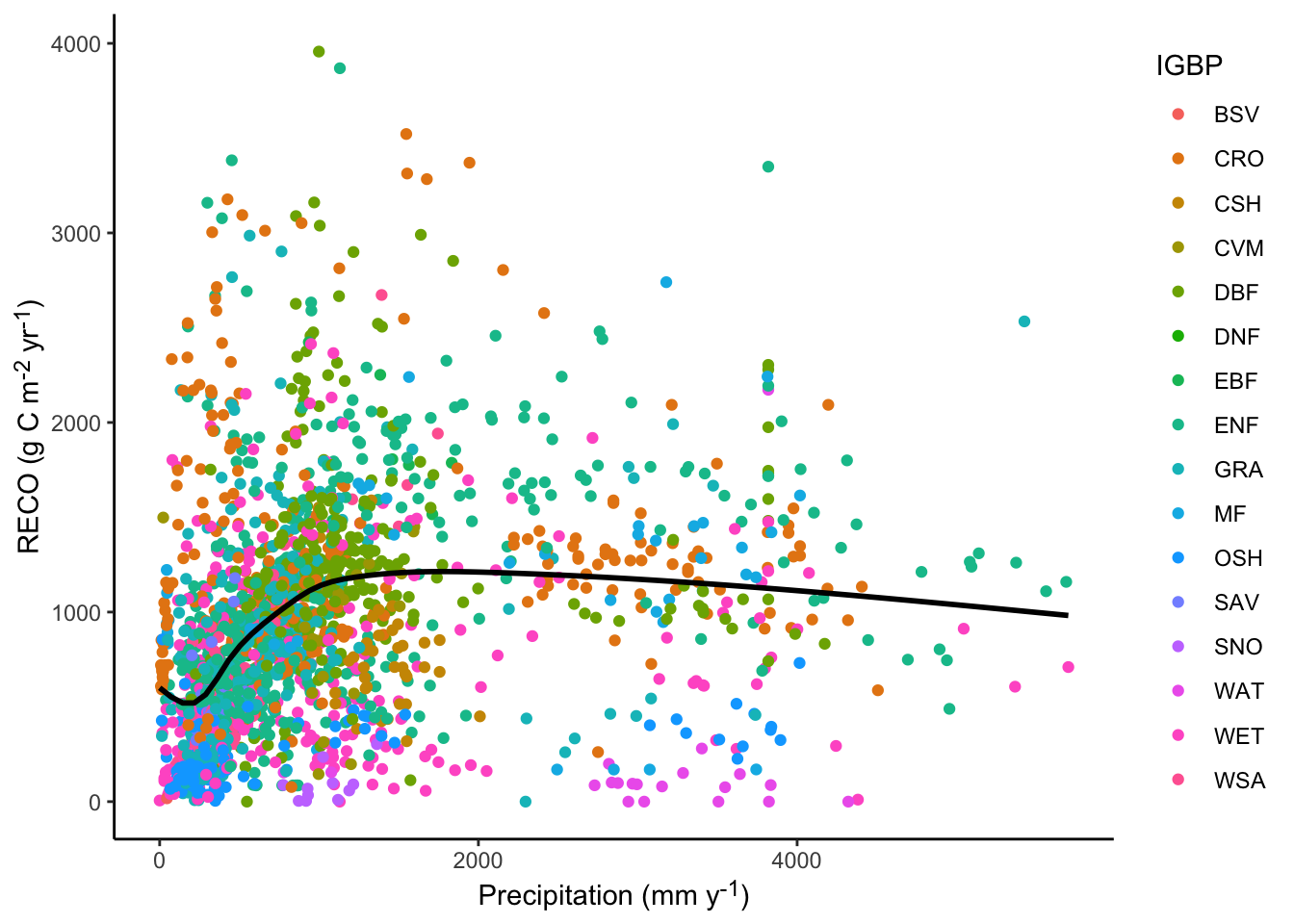

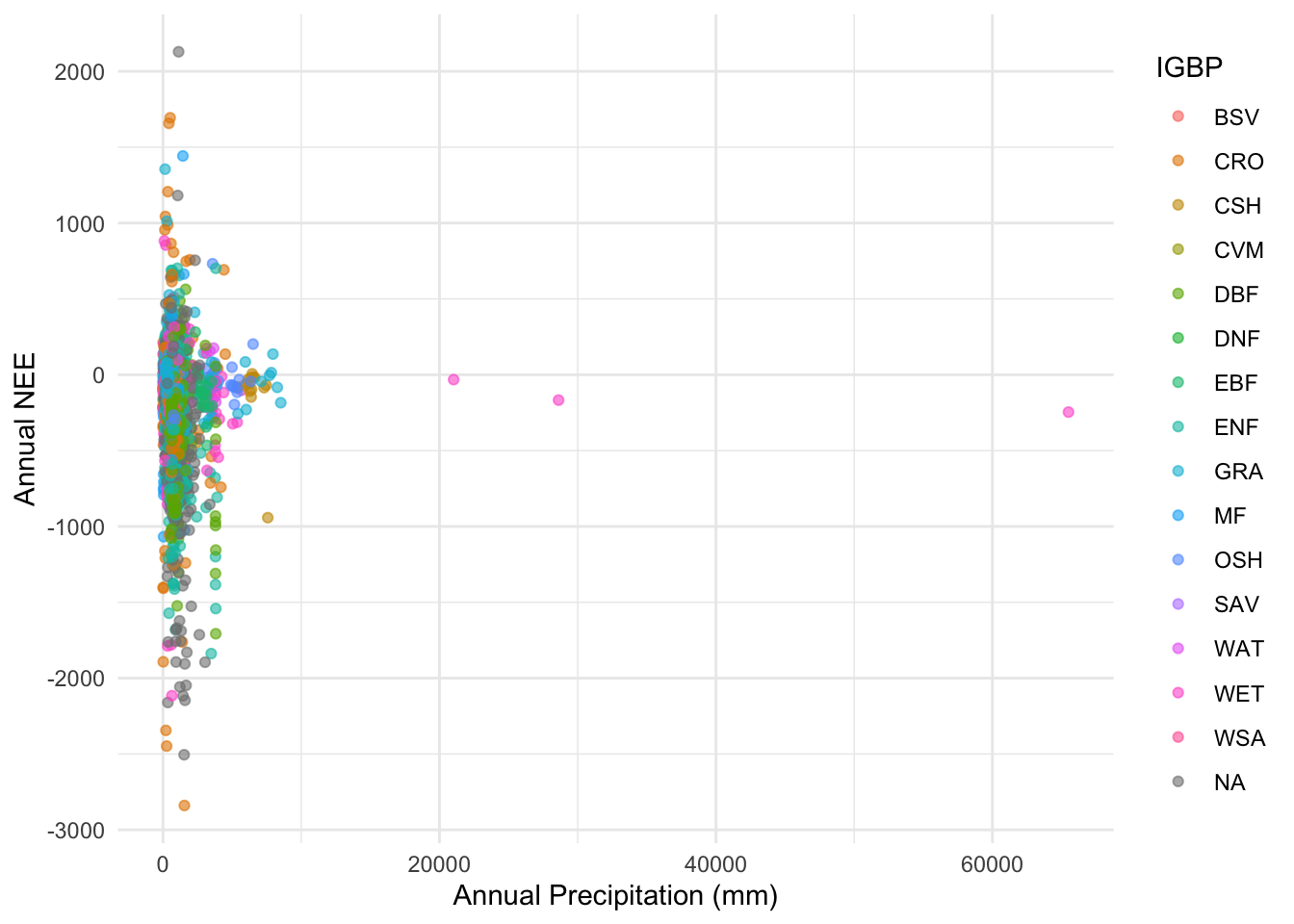

Show annual precipitation, summed from daily data, against three main variables annually.

Code
fluxnet_annual |>
  filter(!is.na(GPP_NT_VUT_REF)) |>
  ggplot(aes(x = P_F, y = GPP_NT_VUT_REF)) +
  geom_point(aes(color = IGBP, group = SITE_ID)) +
  geom_smooth(se = FALSE, color = "black") +
  labs(x = lab_precip_annual, y = lab_gpp_annual)

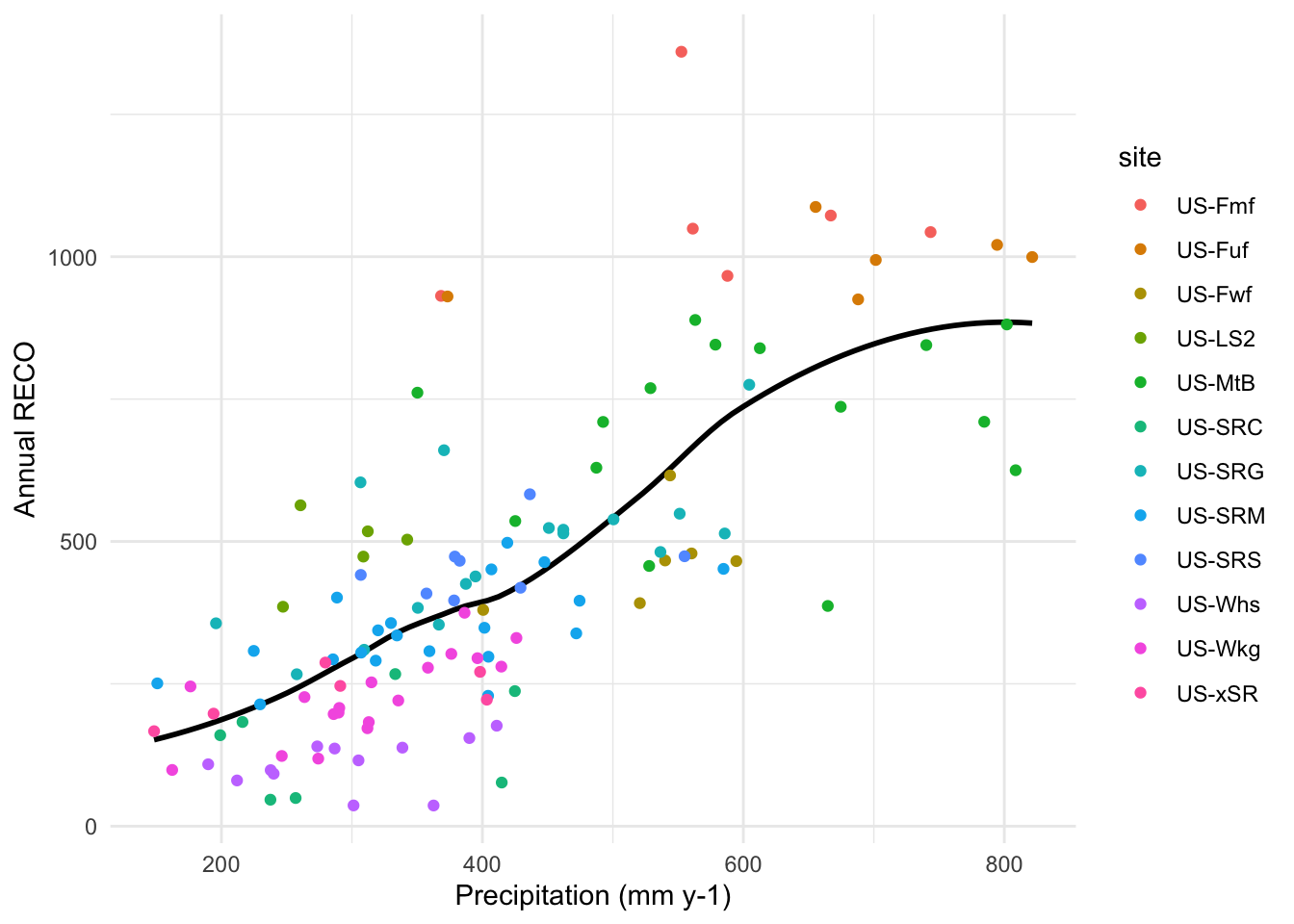

Code
fluxnet_annual |>
  filter(!is.na(RECO_NT_VUT_REF)) |>
  ggplot(aes(x = P_F, y = RECO_NT_VUT_REF)) +
  geom_point(aes(color = IGBP, group = SITE_ID)) +
  geom_smooth(se = FALSE, color = "black") +
  labs(x = lab_precip_annual, y = lab_reco_annual)

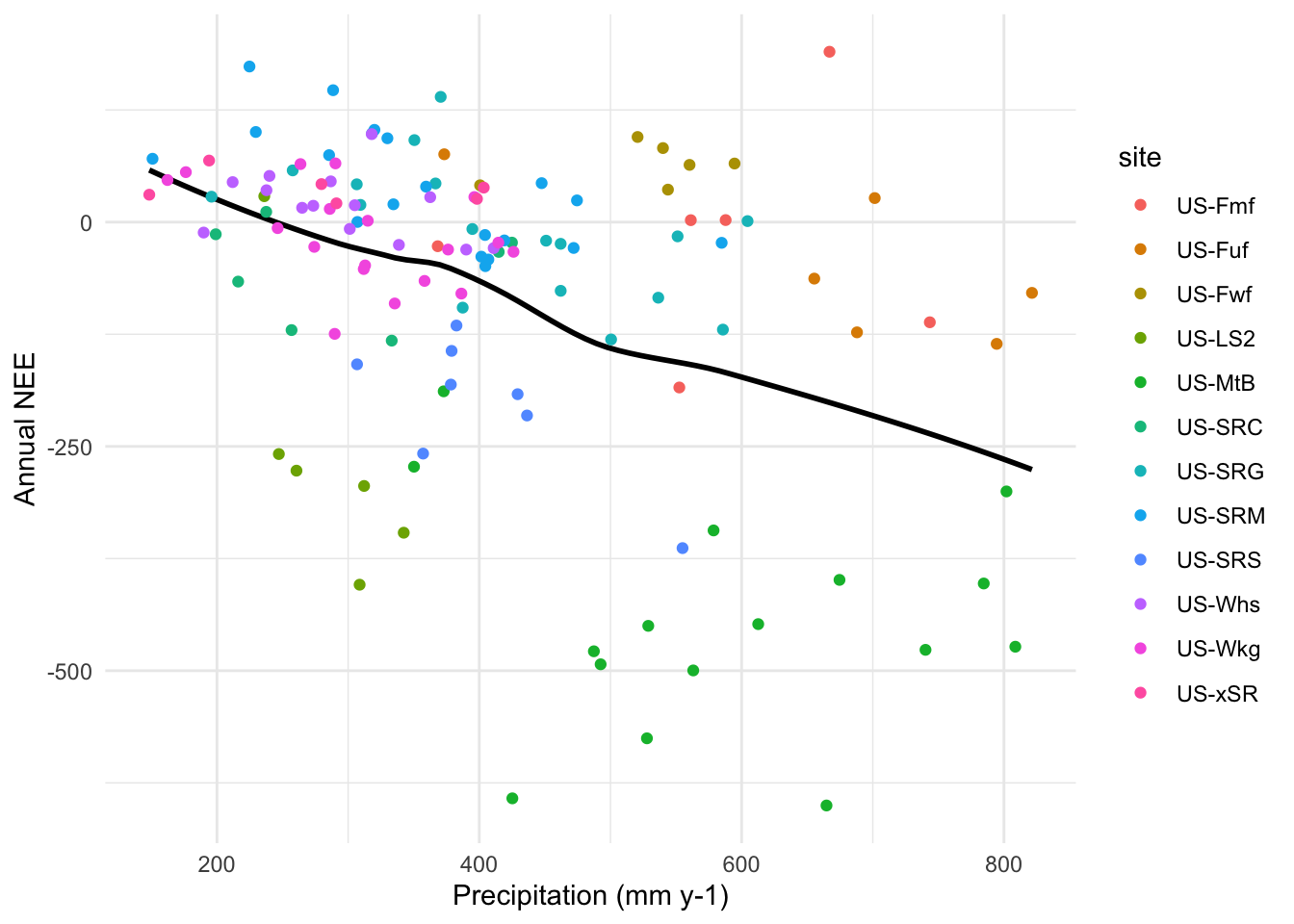

Code
fluxnet_annual |>
  filter(!is.na(NEE_VUT_REF)) |>
  ggplot(aes(x = P_F, y = NEE_VUT_REF)) +
  geom_point(aes(color = IGBP, group = SITE_ID)) +
  geom_smooth(se = FALSE, color = "black") +
  labs(x = lab_precip_annual, y = lab_nee_annual)

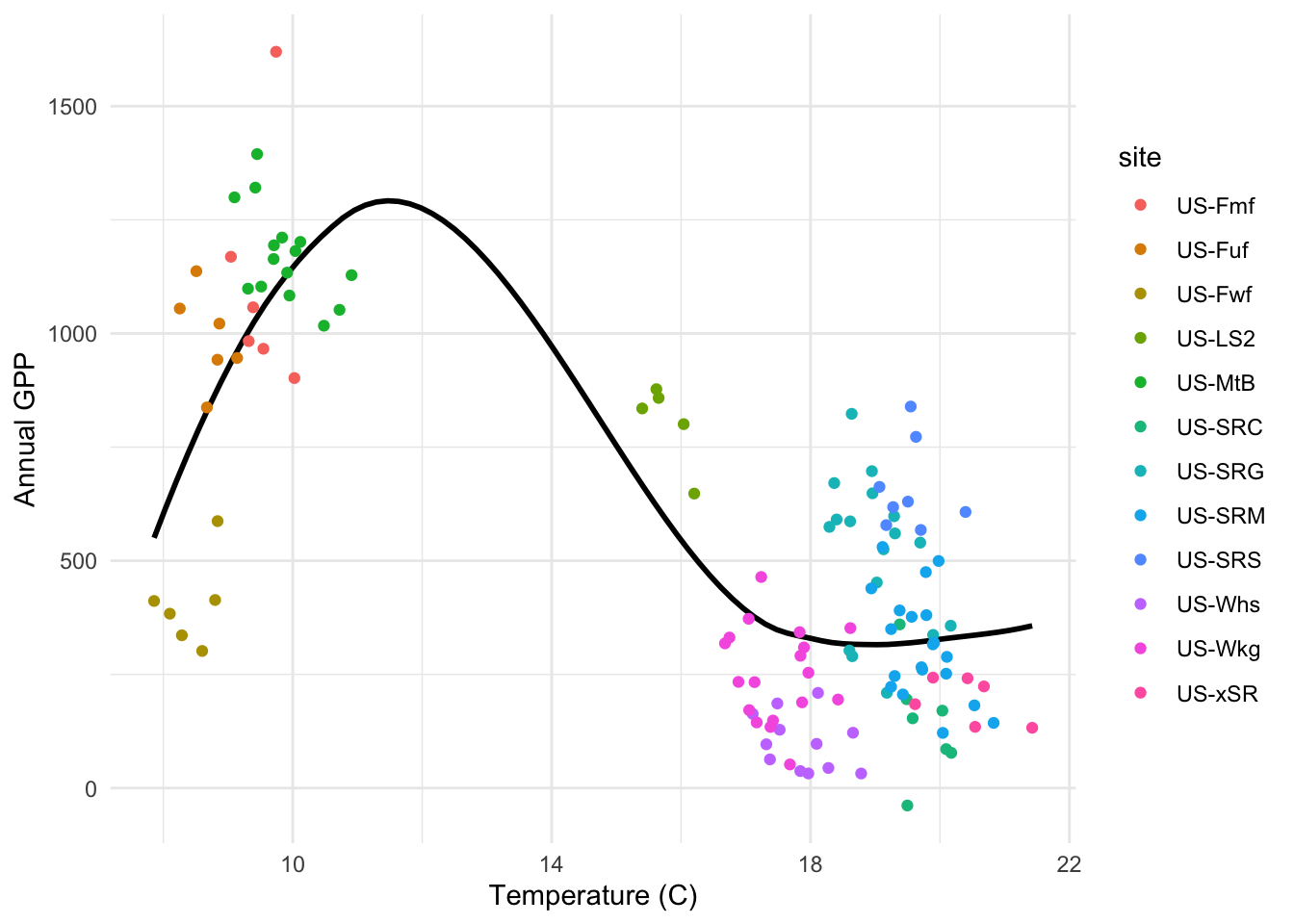

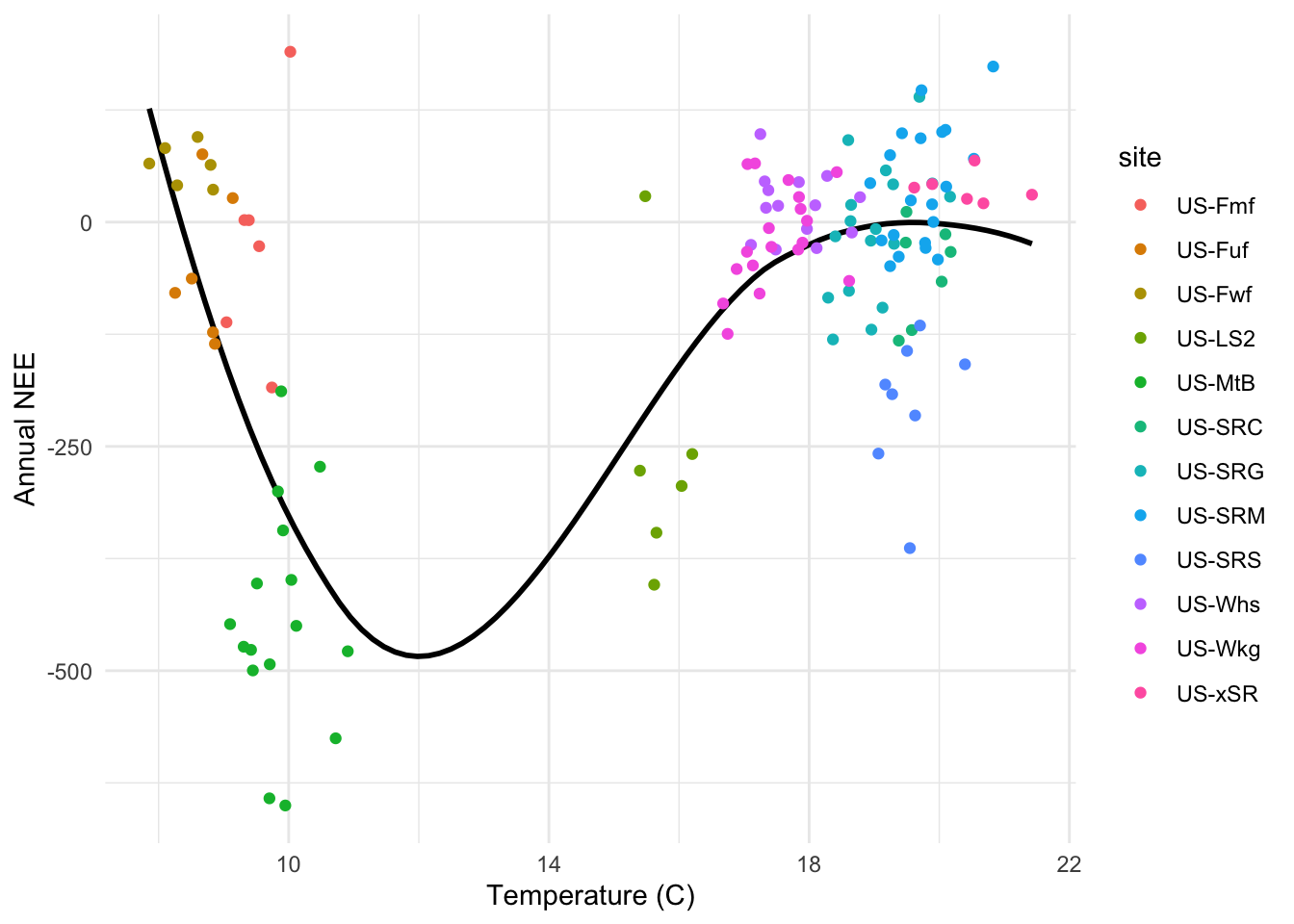

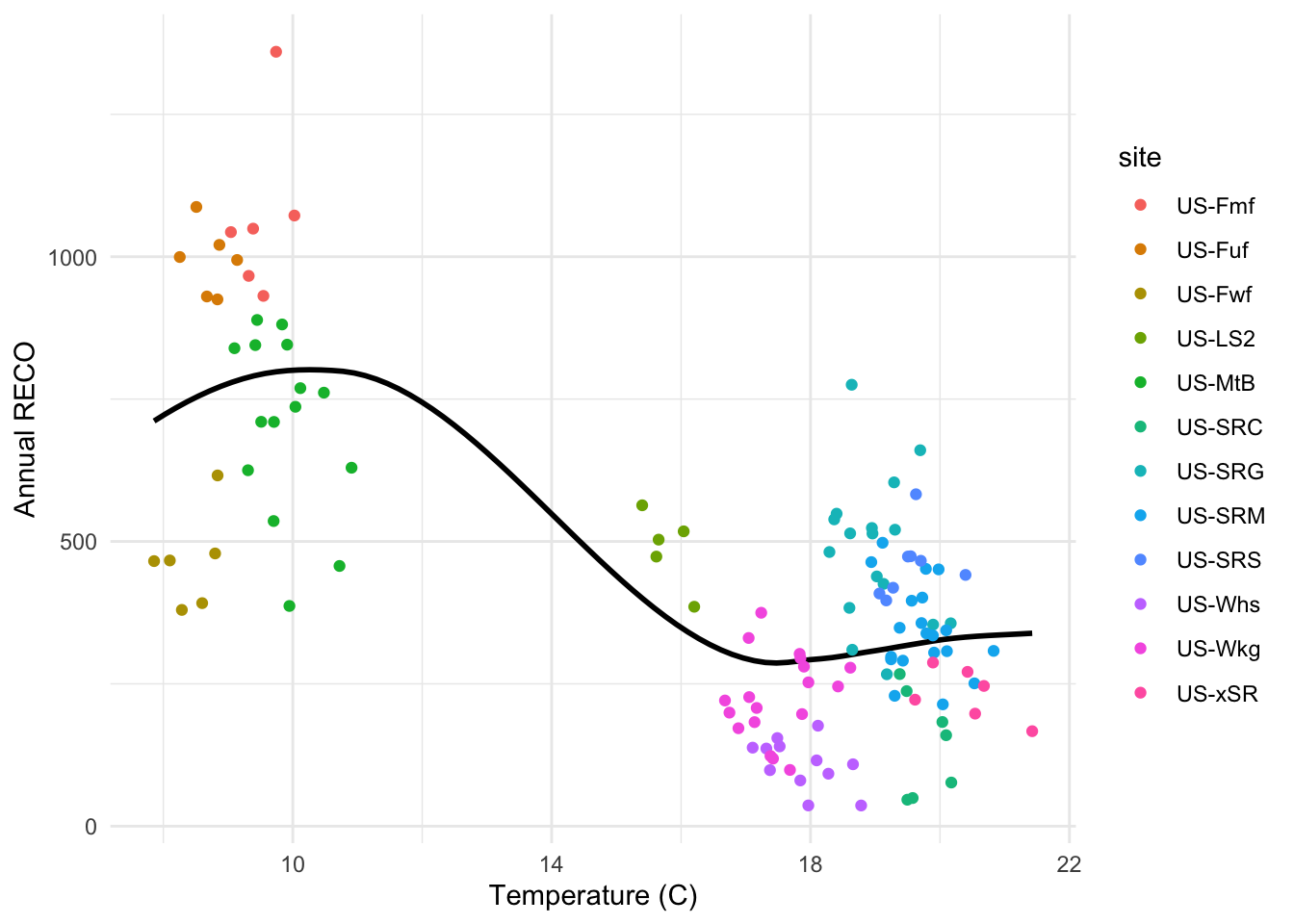

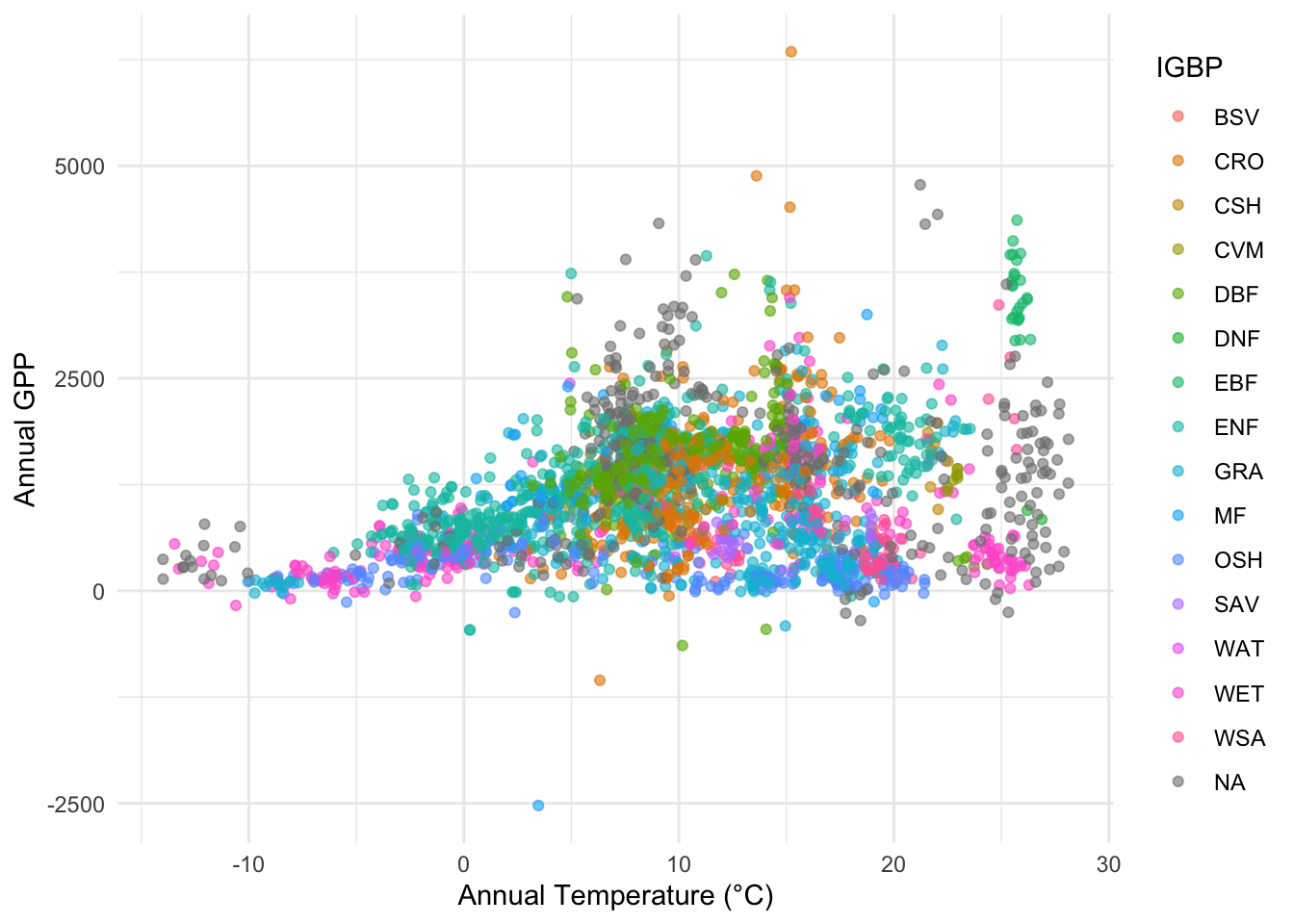

Show annual temperature, averaged from daily data, against three main variables annually.

Code
fluxnet_annual |>
  ggplot(aes(x = TA_F, y = GPP_NT_VUT_REF)) +
  geom_point(aes(color = IGBP, group = SITE_ID)) +
  geom_smooth(se = FALSE, color = "black") +
  labs(x = "Temperature (ºC)", y = lab_gpp_annual)

Code
fluxnet_annual |>
  ggplot(aes(x = TA_F, y = RECO_NT_VUT_REF)) +
  geom_point(aes(color = IGBP, group = SITE_ID)) +
  geom_smooth(se = FALSE, color = "black") +
  labs(x = "Temperature (ºC)", y = lab_reco_annual)

Code
fluxnet_annual |>
  ggplot(aes(x = TA_F, y = NEE_VUT_REF)) +
  geom_point(aes(color = IGBP, group = SITE_ID)) +
  geom_smooth(se = FALSE, color = "black") +
  labs(x = "Temperature (ºC)", y = lab_nee_annual)

Questions

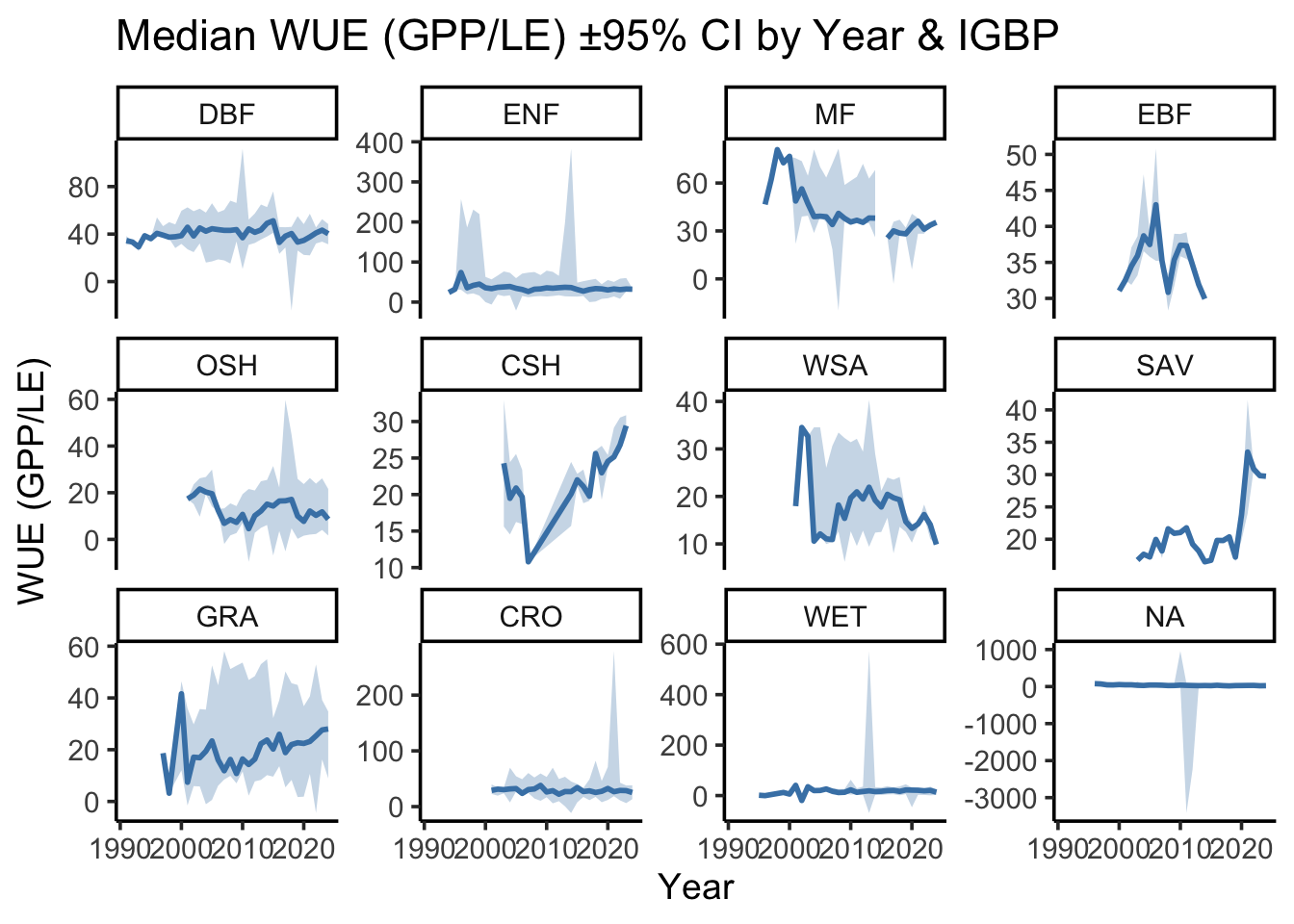

  1. We want to do this for evapotranspiration; which variable is that in the dataset?
  2. Do precipitation variable P and temp variable TA_F_MDS come from measured site data?
  3. We could get some measure of variability for x- (temp and precip) and y- (GPP, RECO, NEE) axes by using the daily or monthly values instead; would that be of interest?

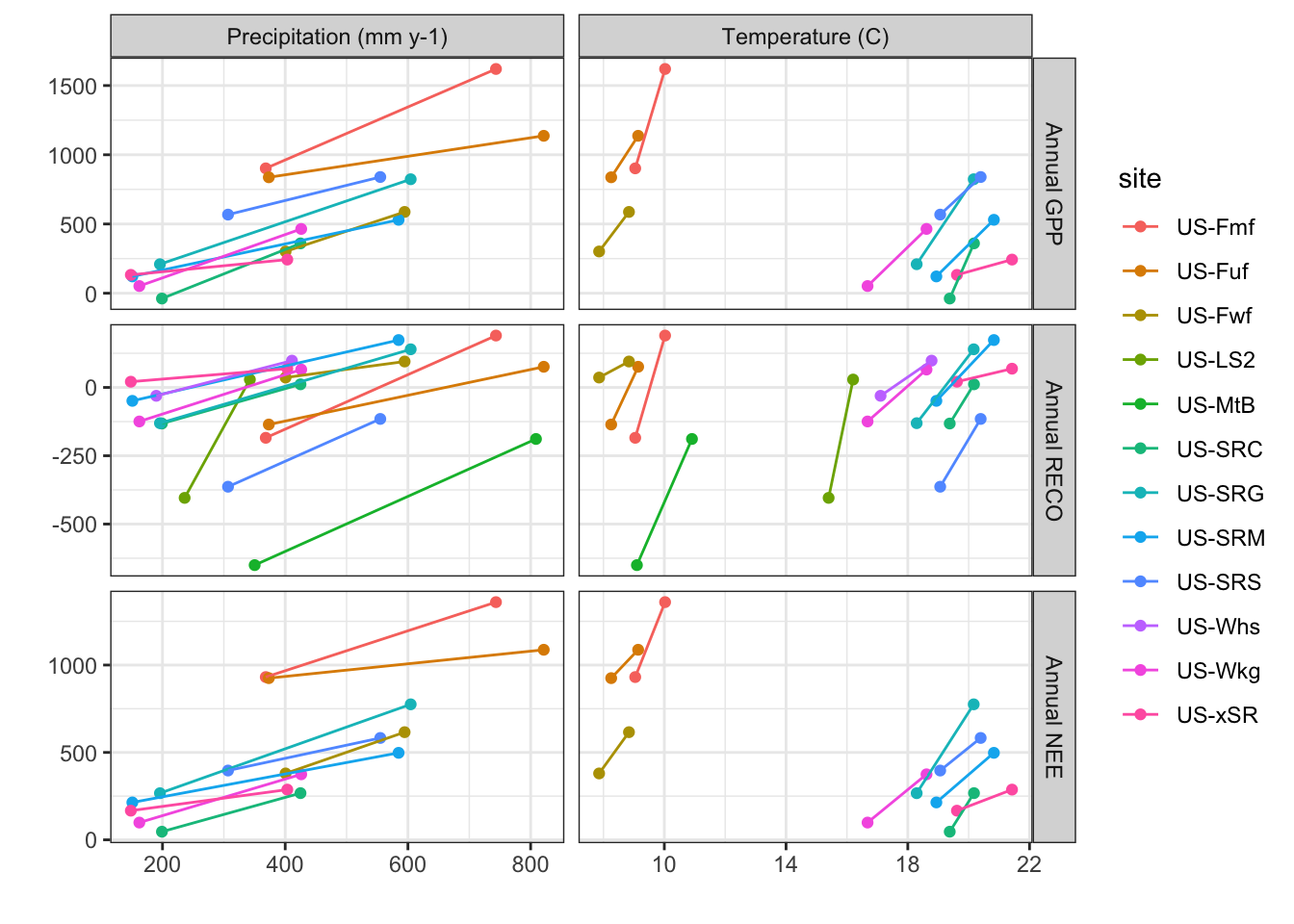

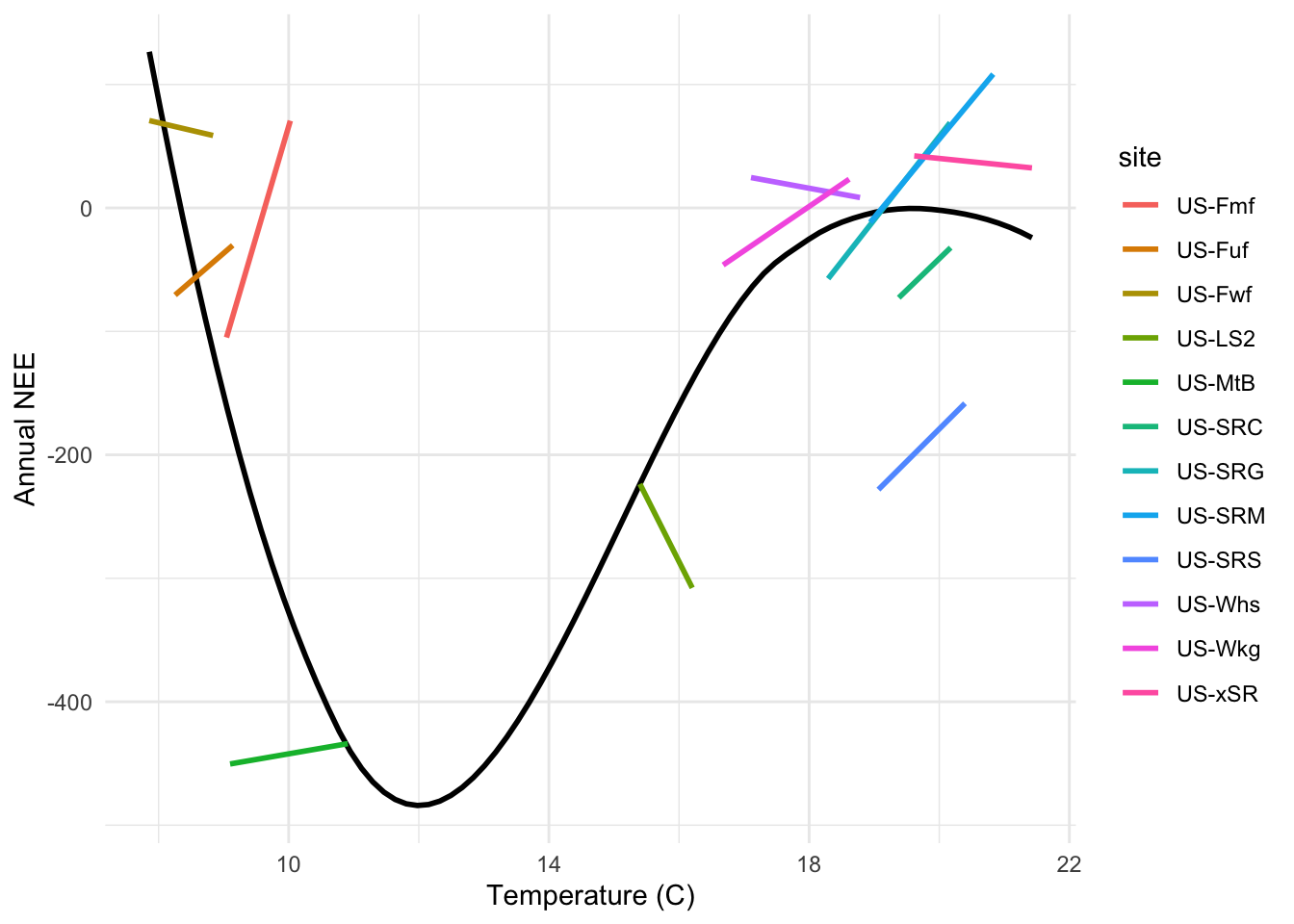

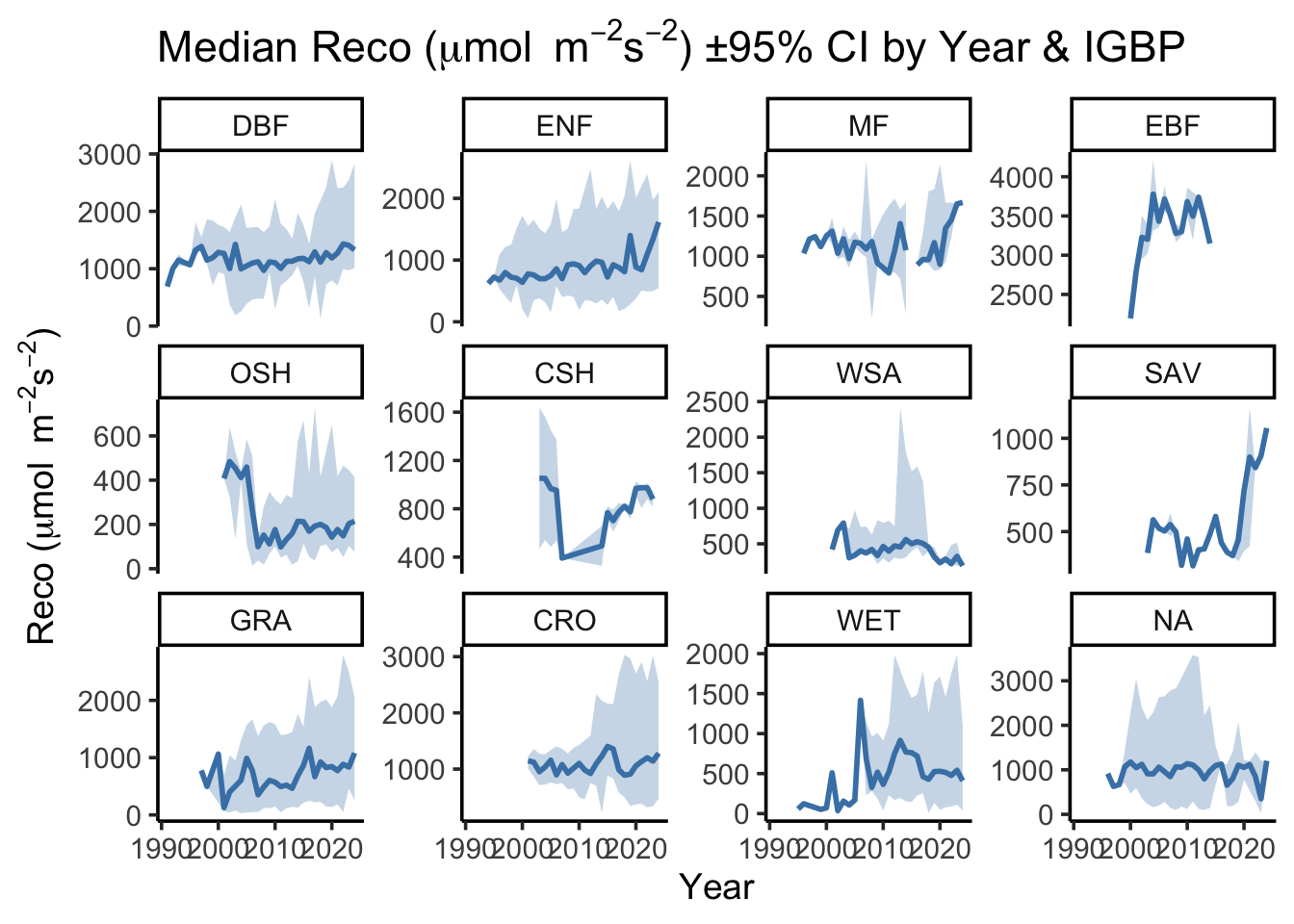

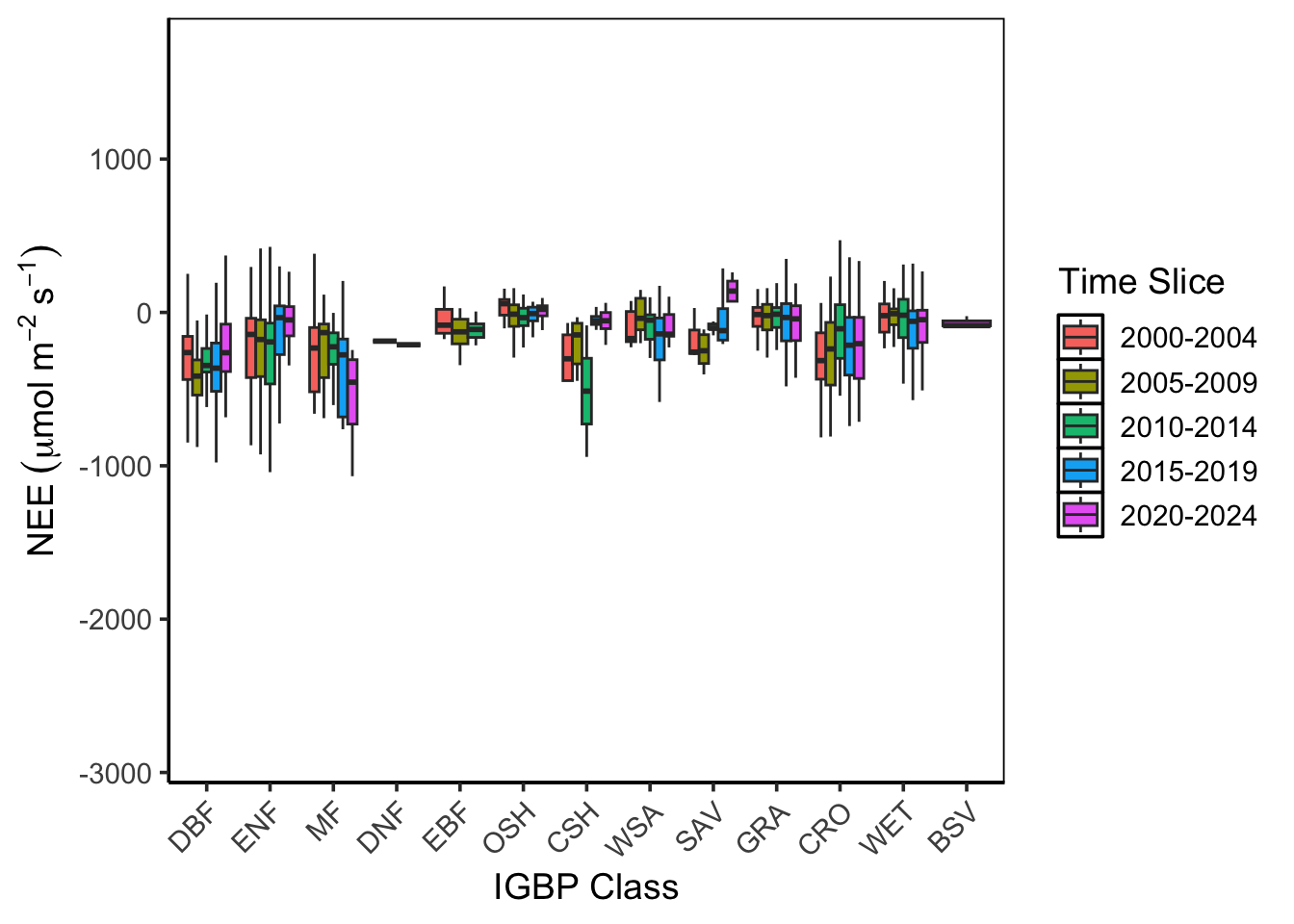

Interannual comparison to meteorological variables (multiple sites)

Textbook figure (for NPP):

Code
ggplot(fluxnet_annual, aes(x = P_F, y = GPP_NT_VUT_REF)) +
  geom_smooth(se = FALSE, color = "black", linewidth = 0.5) +
  # geom_smooth(se = FALSE, aes(color = site), method = "lm") +
  geom_textsmooth(
    aes(color = IGBP, label = IGBP),
    se = FALSE,
    method = "lm",
    offset = unit(5, "pt"),
    gap = FALSE,
    # textcolor = "black",
    size = 3
  ) +
  labs(x = lab_precip_annual, y = lab_gpp_annual) +
  guides(color = "none")

Bowen ratios

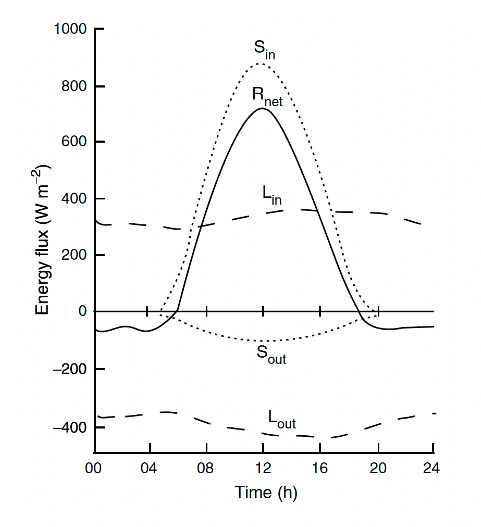

Textbook figure:

Heat flux variables (bold indicates variable in figures):

  • H_F_MDS: Sensible heat flux, gapfilled using MDS method (W m-2)
  • H_CORR (H_CORR_25, H_CORR_75): Sensible heat flux, corrected H_F_MDS by energy balance closure correction factor (25th and 75th percentile)
  • LE_F_MDS: Latent heat flux, gapfilled using MDS method
  • LE_CORR (LE_CORR_25, LE_CORR_75): Latent heat flux, corrected LE_F_MDS by energy balance closure correction factor (25th and 75th percentile)

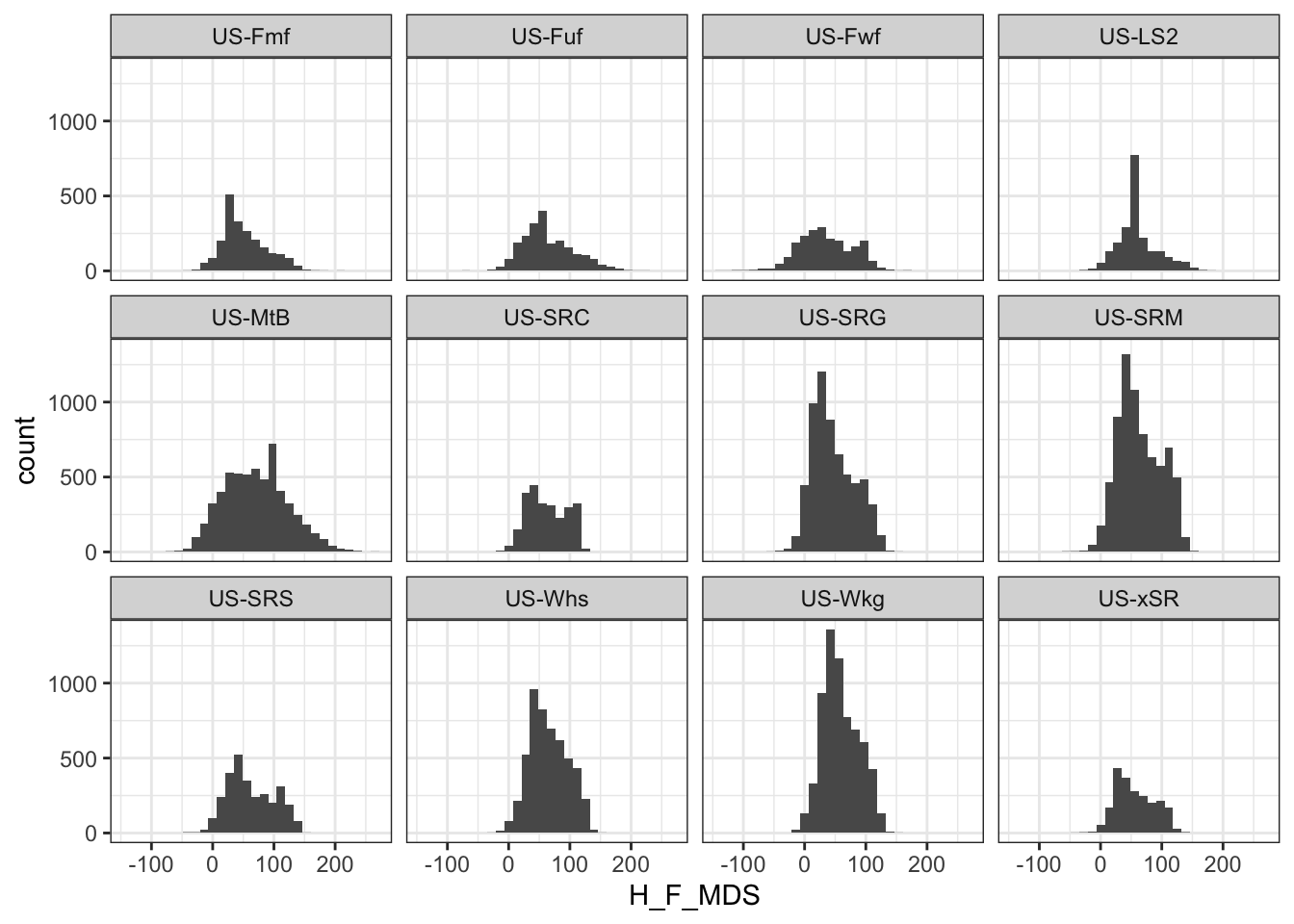

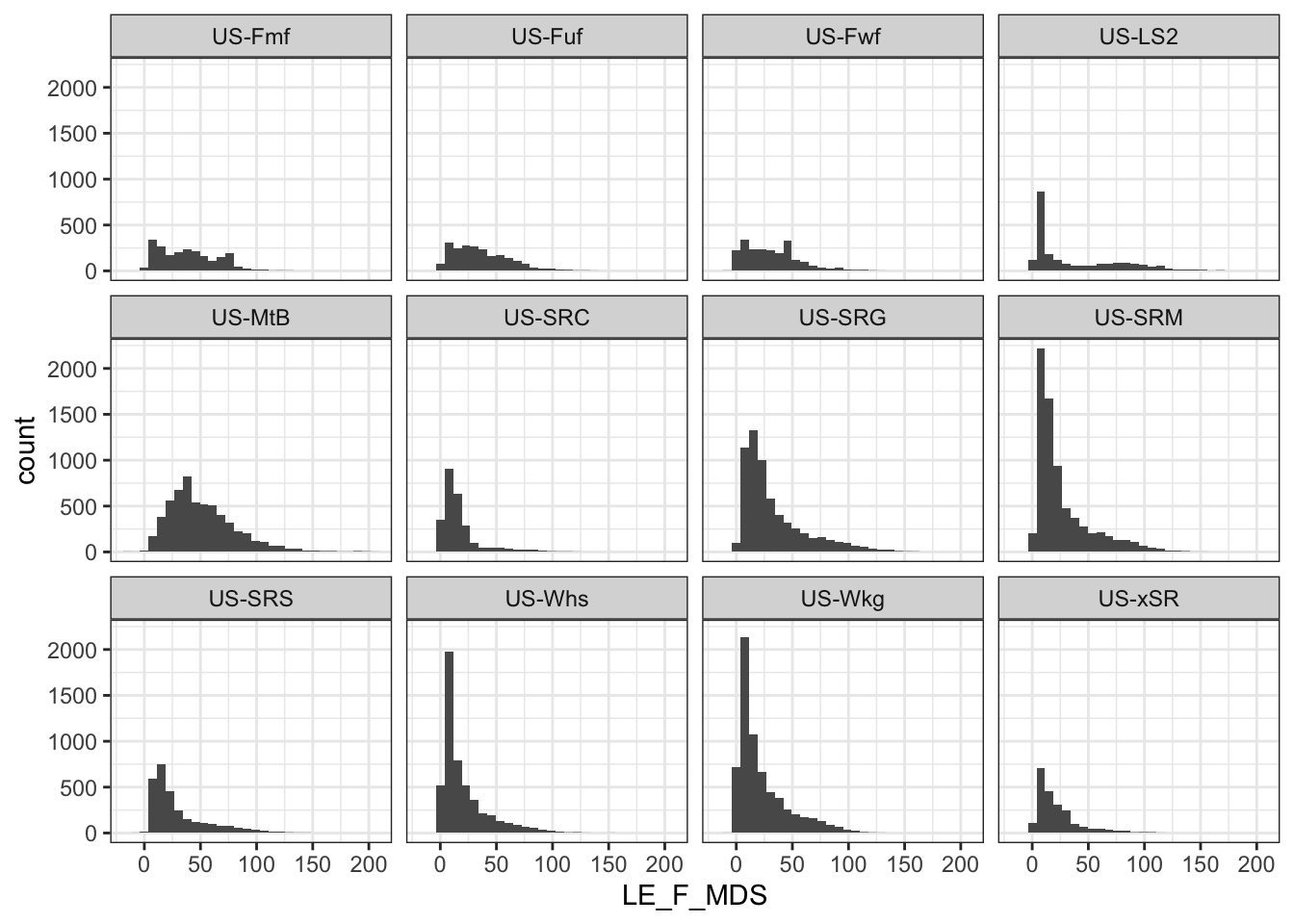

Visual check of heat flux variable ranges.

Code
# ggplot(fluxnet_daily, aes(x = LE_F_MDS)) +
#   geom_histogram() +
#   facet_wrap(vars(SITE_ID)) +
#   theme_bw()

# ggplot(fluxnet_daily, aes(x = H_F_MDS)) +
#   geom_histogram() +
#   facet_wrap(vars(SITE_ID)) +
#   theme_bw()

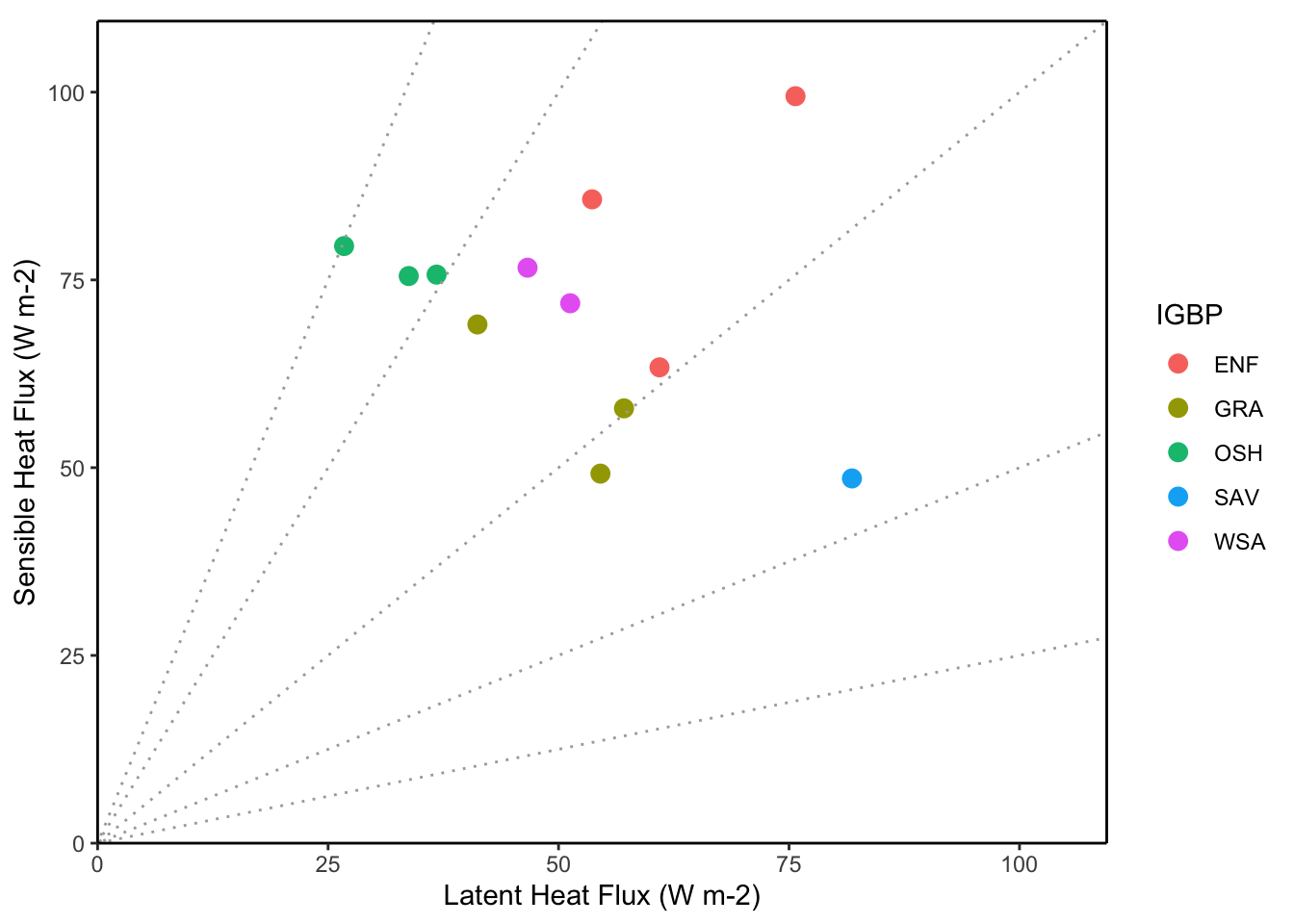

Show average daily summer-only sensible vs latent heat flux (i.e., Bowen ratio) for multiple sites with different vegetation types. Bowen ratios of 3, 2, 1, 0.5, and 0.25 shown by dotted lines.

Code
multiple_sites_flux <- fluxnet_daily %>%
  filter(month(date) %in% c(6:8)) %>% #filter to include summer only
  group_by(SITE_ID, IGBP) %>%
  summarize(
    latent_heat_flux = mean(LE_F_MDS),
    sensible_heat_flux = mean(H_F_MDS)
  )

upper_axis_limit <- pmax(
  max(multiple_sites_flux$sensible_heat_flux),
  max(multiple_sites_flux$latent_heat_flux)
) +
  10

ggplot(
  multiple_sites_flux,
  aes(x = latent_heat_flux, y = sensible_heat_flux, color = IGBP)
) +
  geom_point(size = 3) +
  # geom_mark_hull(expand = unit(1, "mm")) + #looks ridiculous
  geom_mark_ellipse(
    aes(
      label = IGBP,
      fill = IGBP,
      filter = IGBP %in% c("OSH", "CRO", "DBF") #highlight just a few?
    ),
    label.fill = "inherit"
  ) +
  geom_abline(
    slope = c(0.25, 0.5, 1, 2, 3),
    linetype = "dotted",
    color = "darkgrey"
  ) +
  scale_x_continuous(expand = c(0, 0), limits = c(0, upper_axis_limit)) +
  scale_y_continuous(expand = c(0, 0), limits = c(0, upper_axis_limit)) +
  # guides(x.sec = "axis", y.sec = "axis") +
  guides(fill = "none") +
  labs(
    x = "Latent Heat Flux (W m<sup>-2</sup>)",
    y = "Sensible Heat Flux (W m<sup>-2</sup>)"
  ) +
  theme(
    panel.border = element_rect(fill = NA),
    axis.title = element_markdown(),
    # axis.ticks.x.top = element_blank(),
    # axis.text.x.top = element_blank(),
    # axis.ticks.y.right = element_blank(),
    # axis.text.y.right = element_blank()
  )

Questions
  1. Should watts be converted to megajoules for the heat flux variables? No, people will be more likely to expect Wm-2
  2. Are heat flux values expected to be negative, especially for sensible heat flux?

Biome plot

Textbook figure:

The R package plotbiomes can be used to recreate the base plot here, which is referred to as a Whittaker plot. It includes a dataset of temperature, precipitation, and associated biome.

Code
data("Whittaker_biomes")
head(Whittaker_biomes)
       temp_c precp_cm biome_id  biome
1   -10.21600 1.607134        6 Tundra
1.1 -10.62857 1.696938        6 Tundra
1.2 -11.14116 1.846052        6 Tundra
1.3 -11.61776 2.028094        6 Tundra
1.4 -12.05961 2.242129        6 Tundra
1.5 -12.46799 2.486286        6 Tundra
Code
unique(Whittaker_biomes$biome)
[1] "Tundra"                           "Boreal forest"
[3] "Temperate grassland/desert"       "Woodland/shrubland"
[5] "Temperate seasonal forest"        "Temperate rain forest"
[7] "Tropical rain forest"             "Tropical seasonal forest/savanna"
[9] "Subtropical desert"

Get mean values of annual precipitation (P_F) and temperature (TA_F) for each site, and convert precipitation to match Whittaker dataset units (mm/yr to cm/yr).

Code
whittaker_format <- fluxnet_annual %>%
  group_by(SITE_ID) %>%
  summarize(mean_precip = mean(P_F), mean_temp = mean(TA_F)) %>%
  mutate(mean_precip_cm = conv_unit(mean_precip, "mm", "cm")) %>%
  left_join(site_metadata, by = join_by(SITE_ID))

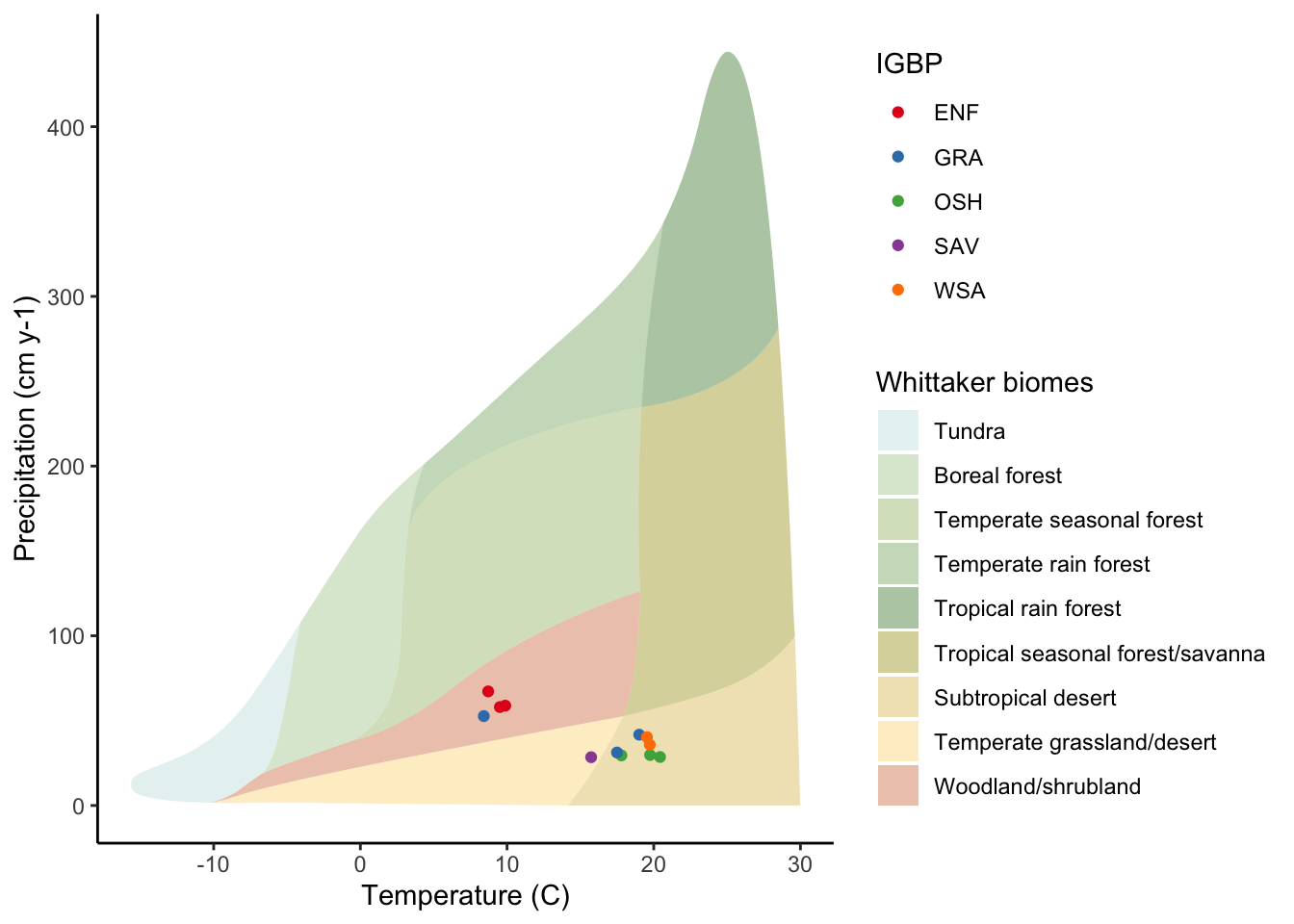

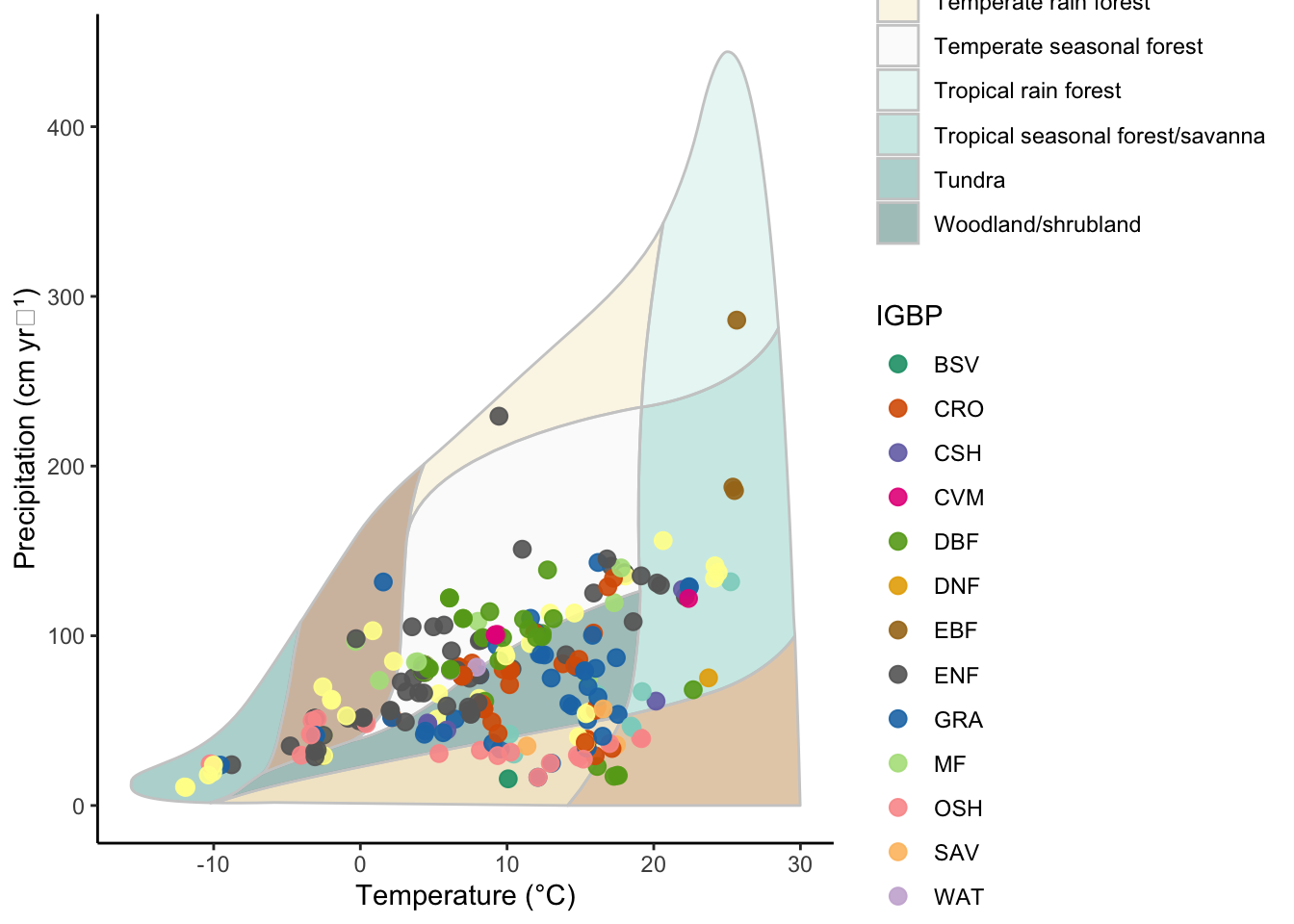

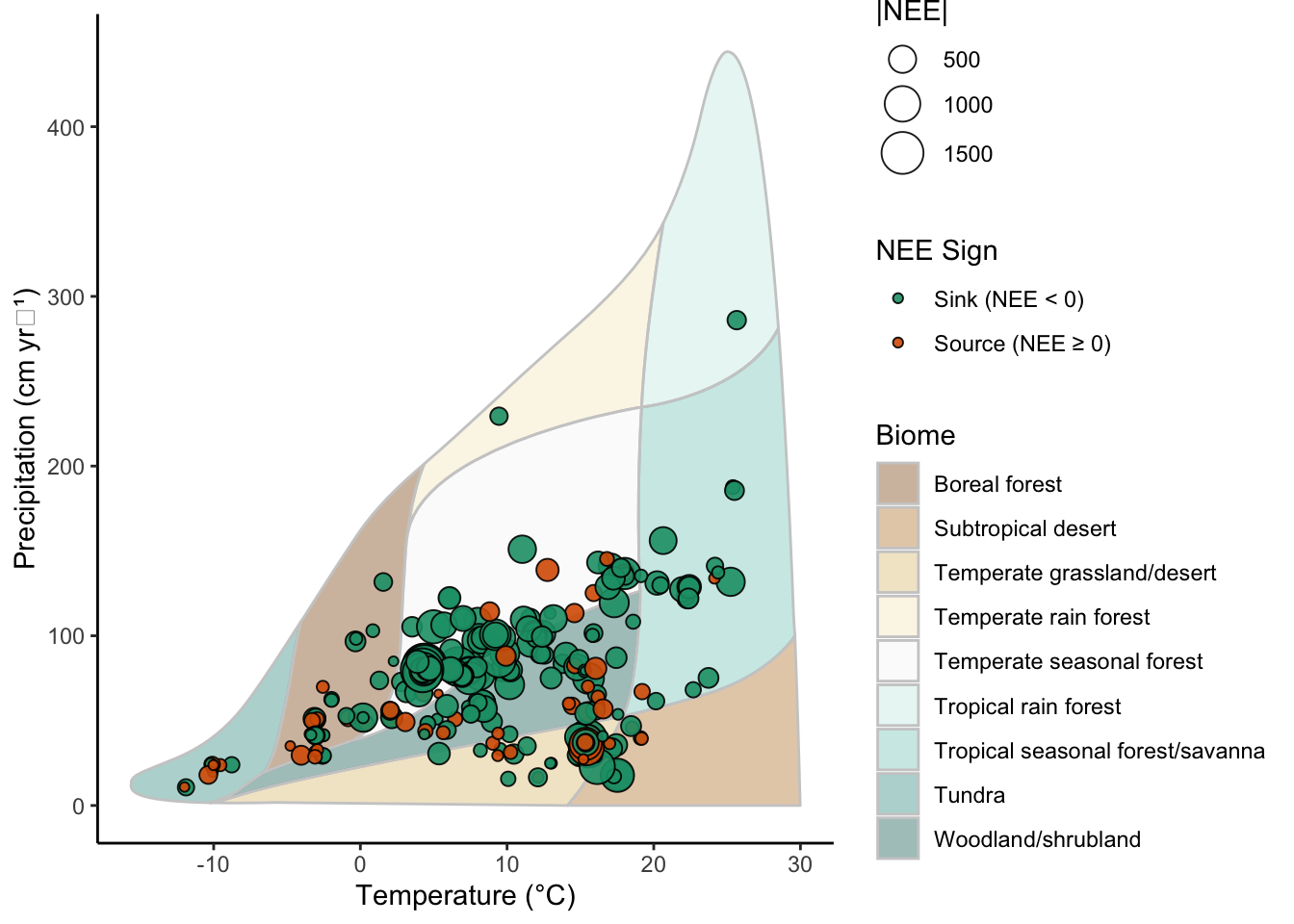

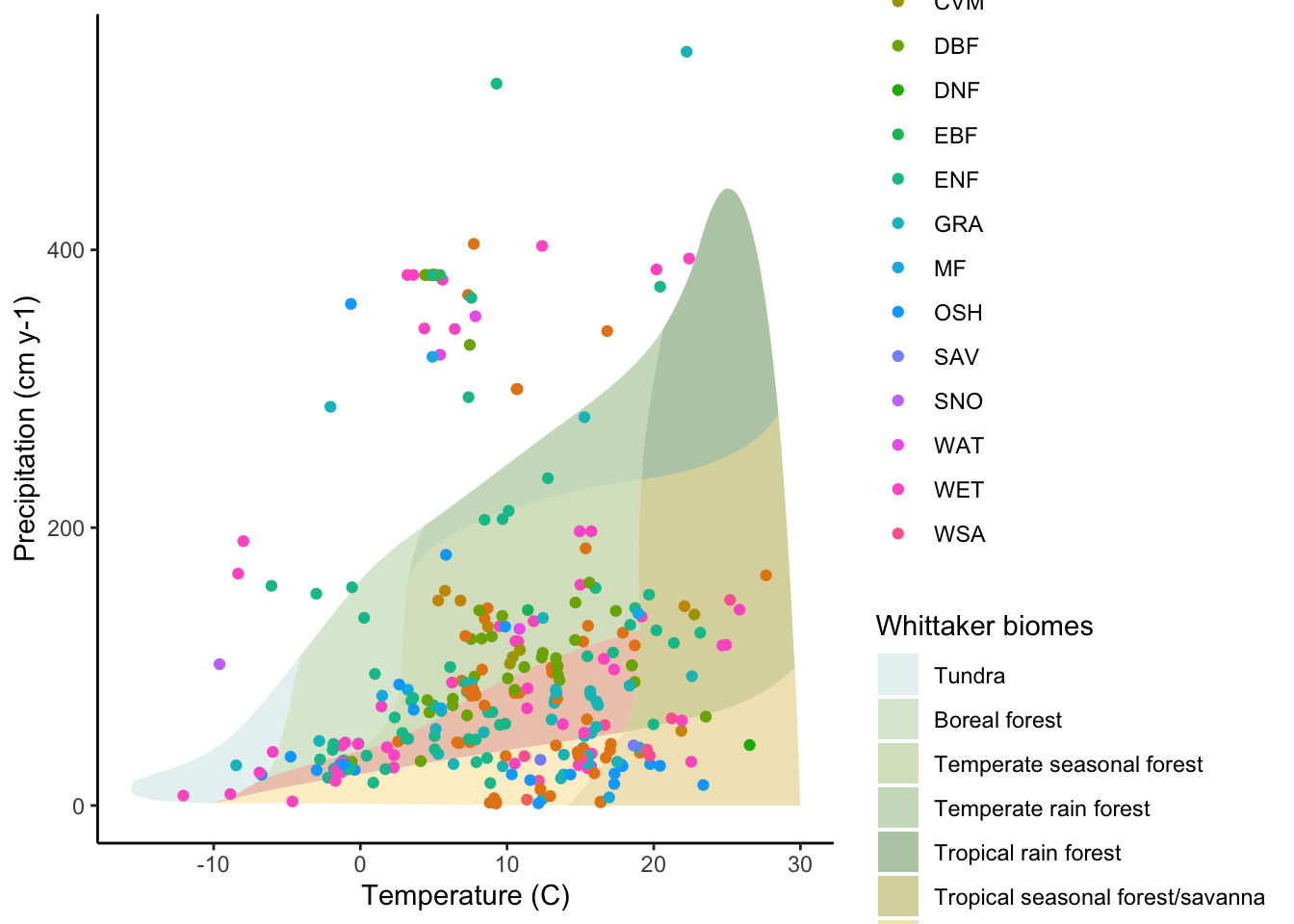

Show mean annual precipitation and temperature of each site over Whittaker biome.

Code
ggplot() +
  geom_polygon(
    data = Whittaker_biomes,
    aes(x = temp_c, y = precp_cm, fill = biome),
    # fill = "white"
    alpha = 0.4
  ) +
  # scale_fill_brewer(palette = "BrBG") +
  scale_fill_manual(
    name = "Whittaker biomes",
    breaks = names(Ricklefs_colors),
    labels = names(Ricklefs_colors),
    values = Ricklefs_colors
  ) +
  # new_scale_color() +
  geom_point(
    data = whittaker_format,
    aes(x = mean_temp, y = mean_precip_cm, color = IGBP)
  ) +
  # scale_color_brewer(palette = "Set1") +
  labs(x = "Temperature (C)", y = "Precipitation (cm y-1)")

Questions
  1. How suspicious are sites that don’t exist in a biome?

Daily energy flux (single site)

Textbook figure:

The energy flux variables are listed below. The ones that have multiple possible options are discussed below in the questions section.

  • NETRAD: Net radiation
  • SW_IN_F: Shortwave radiation, incoming consolidated from SW_IN_F_MDS and SW_IN_ERA (negative values set to zero)
  • SW_OUT: Shortwave radiation, outgoing
  • LW_IN_F: Longwave radiation, incoming, consolidated from LW_IN_F_MDS and LW_IN_ERA
  • LW_OUT: Longwave radiation, outgoing

Parsing dates and times:

Code
#not working currently
rad_dt <- single_site_hourly %>%
  mutate(
    date = date(datetime_start),
    time = format(as.POSIXct(datetime_start), format = '%H:%M')
  )

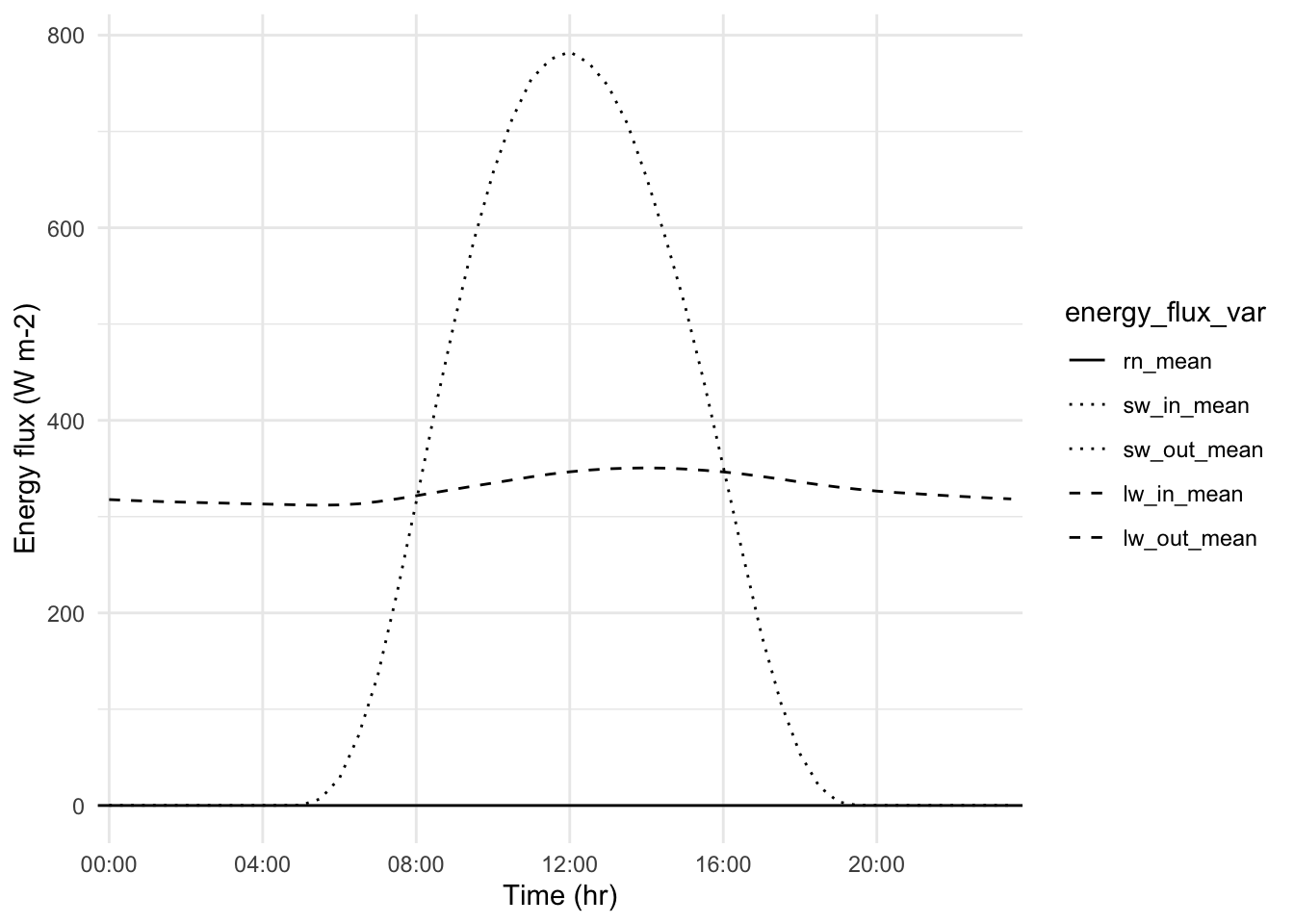

Show average half-hourly shortwave, longwave, and total radiation for a single site. Data collection starts min(rad_dt$date) and ends max(rad_dt$date).

Code
rad_means <- rad_dt %>%
  group_by(time) %>%
  summarise(
    rn_mean = mean(NETRAD),
    sw_in_mean = mean(SW_IN_F),
    sw_out_mean = mean(SW_OUT),
    lw_in_mean = mean(LW_IN_F),
    lw_out_mean = mean(LW_OUT)
  ) %>%
  pivot_longer(
    !time,
    names_to = "energy_flux_var",
    values_to = "energy_flux_value"
  ) %>%
  mutate(
    energy_flux_var = factor(
      energy_flux_var,
      levels = c(
        "rn_mean",
        "sw_in_mean",
        "sw_out_mean",
        "lw_in_mean",
        "lw_out_mean"
      )
    )
  )

ggplot(rad_means, aes(x = time, y = energy_flux_value)) +
  geom_line(aes(group = energy_flux_var, linetype = energy_flux_var)) +
  geom_hline(yintercept = 0) +
  #geom_point() +
  labs(x = "Time (hr)", y = "Energy flux (W m-2)") +
  theme_minimal() +
  scale_x_discrete(
    breaks = c("00:00", "04:00", "08:00", "12:00", "16:00", "20:00")
  ) +
  scale_linetype_manual(
    values = c("solid", "dotted", "dotted", "dashed", "dashed")
  )
Questions
  1. Why does this not really line up with the textbook image? Because this is real data. We will investigate more later
  2. There are a few options for shortwave in besides SW_IN_F: SW_IN_POT, SW_IN_F_MDS, SW_IN_ERA. Which of these is the one we want? Yes
  3. Longwave in also has those options, plus JSB ones. Also yes
  4. Add standard deviation to these means?

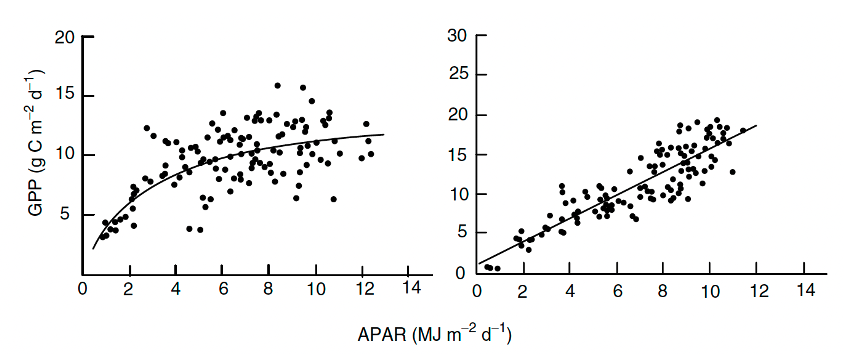

Textbook figure for APAR vs GPP for two sites:

Show photosynthetically active radiation to GPP.

Question

Which dataset is APAR in? It’s listed in the data variables page, but not on the fullset page or in the single site hourly, daily, or annual datasets. Other MET_RAD variables like SW/LW radiation and photon flux density are in those datsets. Also not in BADM.
